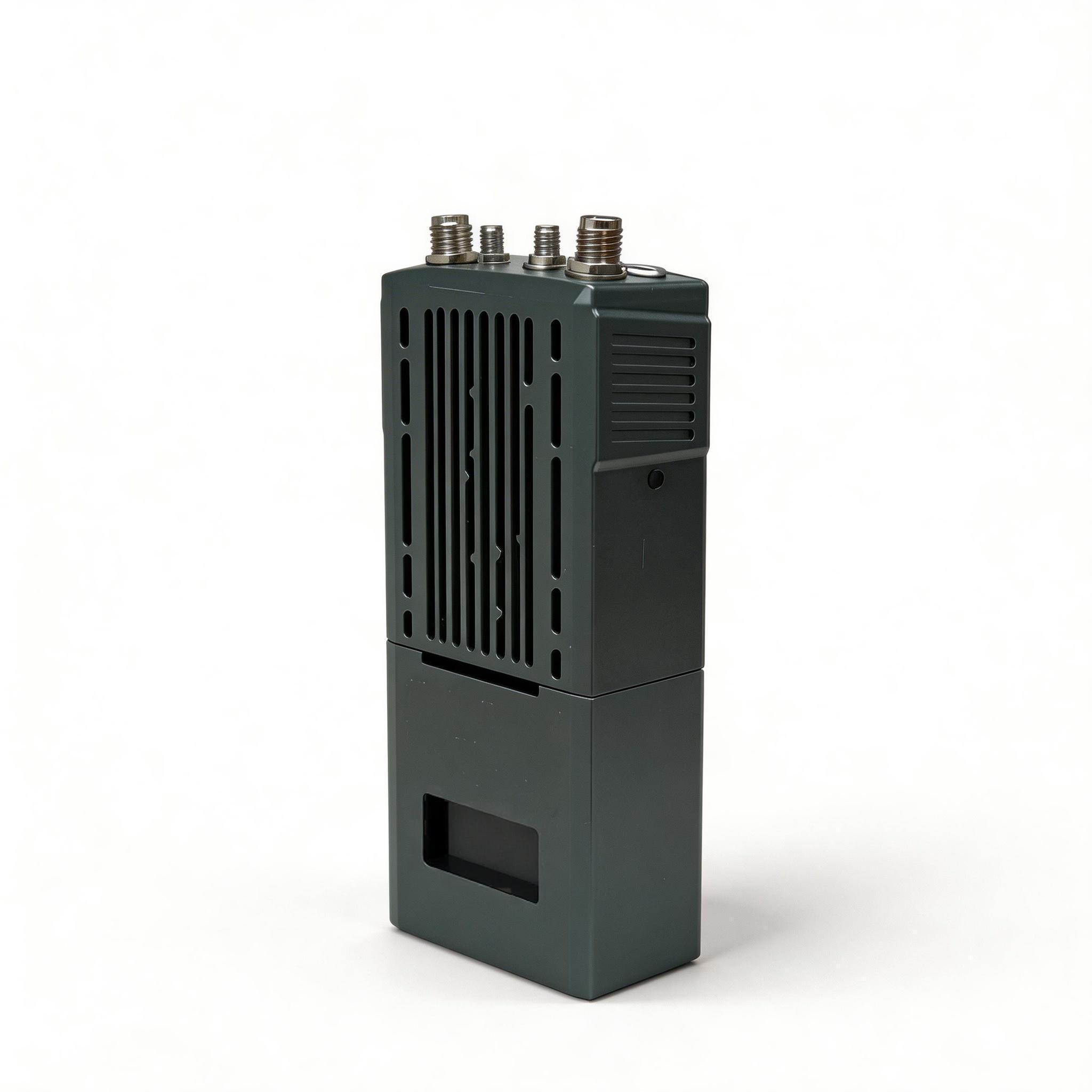

MANET-Enabled Handheld Communication Systems
MANET-Enabled Handheld Communication Systems
MANET-Enabled Handheld Communication Systems
MANET-Enabled Handheld Communication Systems
MANET-Enabled Handheld Communication Systems
MANET-Enabled Handheld Communication Systems
Specifications
Delivery Time :
Negotiable
Frequency Range :
UHF、L、S/Customizable
Brand Name :
hanxun
Bandwidth :
5、10、20MHz
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T,L/C
Certification :
CE
Packaging Details :
box
Interface :
Serial port, Ethernet port, power interface, RF interface
Description

Product Introduction


Designed with a distributed, infrastructureless ad hoc network architecture, this device enables seamless multi-node networking. It acts as a transparent transmission channel, allowing for reliable IP-based multimedia communication without the need for fixed infrastructure.


Wideband Communication
Supports wideband communication in the 1420–1520 MHz frequency band, effectively adapting to complex terrain environments, and provides customizable frequency bands.
Intelligent Frequency Selection
Supports intelligent frequency selection, with adjustable bandwidths of 5/10/20 MHz.

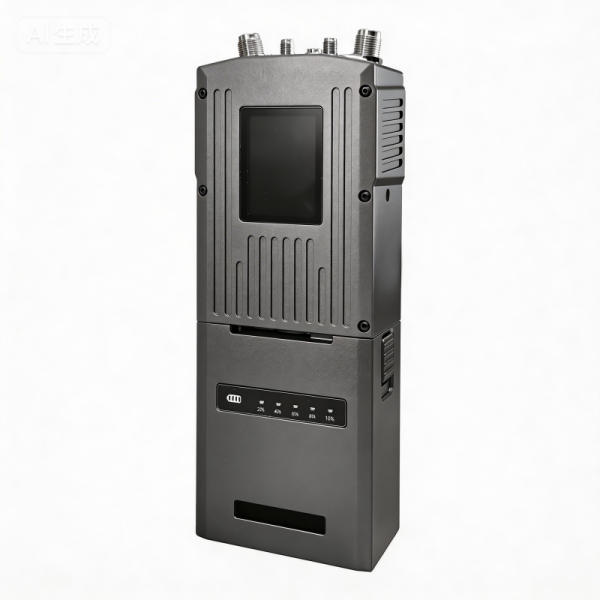

HD Display
Equipped with a display screen for viewing device status, link status, straight-line distance to nodes, etc. Quick configuration can be performed via on-screen buttons.
Battery Indicator
Features a touch-activated battery display; a light touch shows the current battery level.




Specifications


Encryption Support software encryption
Power Supply Battery-powered, DC external power supply
Modulation BPSK/QPSK/16QAM/64QAM,dynamic self-adapting
Networking capability 32 nodes, support customization
MIMO Mode 2T2R
Network port 100-megabit data network port
Other functions Time Division multiplexing, frequency division multiplexing, beam forming, MIMO
