Specifications
Brand Name :
Merrytek
Model Number :
MLC28CC-PD （0-10V）/ PWM optional
Certification :
CE, UKCA, SAA
Place of Origin :
Shenzhen, China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs/month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
PE bag clapboard, carton（K=A）
Rated voltage :
220-240V AC 50Hz/60Hz
Stand-by power :
≤0.5W（No Equip with sensing split head）
Inrush current :
≤30A（100us half-current）@230V AC
Operating temperature :
Built-in：-25…+60℃
Certificate :
CE, UKCA, SAA
Lifetime :
5years warranty@Ta50/TC70℃，230V full load
Description

【Product Features】


  • Solated two-stage circuit frame, full dimming and flicker-free.
  • Support DIP switches to set the current gear；Slide Switches to select the CC/CW/WW
  • Support 10.5V auxiliary power supply, with sensing split head can achieve integrated sensing function.
  • Equip with 0-10V dimming control port.
  • Suitable for various microwave sensors or wireless smart modules.


【Parameters】


Product series

MLC28CC-PD

Input

Rated voltage

220-240V AC 50Hz/60Hz

Stand-by power

≤0.5W(No Equip with sensing split head)

Surge

1KV(L/N,EN61000-4-5)

Power factor

≥0.9 (230V Max load)

Input current

≤0.16A @230VAC full load

Inrush current

≤30A(100us half-current)@230V AC

Working efficiency

≥86% (230V Max load)

Output

Working model

CC

Type of load

LED

Flick

≤5%

Constant current accuracy

Constant current accuracy ±5%

Auxiliary driver parameters

10.5VDC Current: 100mA Max

No-load output voltage

75VDC Max

Full load power

28W Max

Load current

615mA / 370mA / 230mA

Load output voltage range

230mA / 27 -45VDC

370mA / 27-45VDC

615mA /27-45VDC

Note:less 45VDC

Abnormality Protection Requirements

Protection mode

Input overvoltage protection;

Input no-load protection no-load protection

Input short circuit protection

Environmental Requirements

Operating temperature

Built-in:-25…+60℃

Tcase-life(Tc)

70℃

Tcase-max

85℃

Storage temperature/humidity

-40℃…+80℃ Humidity: ≤85% (non-condensation)

Certificate Standards

Certificate

CE,UKCA,SAA

Environmental requirement

RoHS2.0, Reach requirement

Safety standards(LVD)

EN61347-1, EN61347-2-13

EMC standards

EN55015, EN61547, EN61000-3-2, EN61000-3-3

Withstand voltage

Primary to secondary: 3.75KVAC

IP Rating

IP20

Product Category

Class II

Others

Wiring method

Press terminal, wire diameter:0.5-1.0mm2

Installation

Built-in

Package

PE bag clapboard, carton(K=A)

Net weight

135 ±5g

Lifetime

5years warranty@Ta50/TC70℃,230V full load

Failure rate

‰0.1@4,000H；‰0.2@20,000H,000H；‰0.8@50,000H


【Product Picture】

28W Max Sensor DIM Led Driver, 230mA-615mA Output, Color Temperature Selectable, Flicker Free

MLC28CC-PD


【Product Information】


  • Dimension (units: mm)

28W Max Sensor DIM Led Driver, 230mA-615mA Output, Color Temperature Selectable, Flicker Free

  • Wiring & Function

28W Max Sensor DIM Led Driver, 230mA-615mA Output, Color Temperature Selectable, Flicker Free

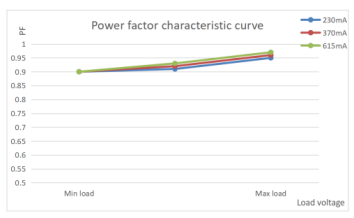

【Parameter Curve】


MLC28CC-PD

28W Max Sensor DIM Led Driver, 230mA-615mA Output, Color Temperature Selectable, Flicker Free

28W Max Sensor DIM Led Driver, 230mA-615mA Output, Color Temperature Selectable, Flicker Free

Life Time Curve

28W Max Sensor DIM Led Driver, 230mA-615mA Output, Color Temperature Selectable, Flicker Free


【Output Current Setting】


  • MLC28CC-PD

Output current

Voltage range

S1

S2

615mA

20-45V

ON

ON

370mA

20-45V

-

ON

230mA

20-45V

-

-


【Initialization】

After power-on, it is half bright, and after self-test, it enters the 0-10V / PWM port voltage setting brightness (suspended for full bright).

【Default settings】

Adjust the corresponding current gear according to the order or customer demand.

【Application Notice】

  • Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.
  • The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
  • The load LED string must be connected first, and then turn on the input power, otherwise it may damage the LED string.
  • After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
