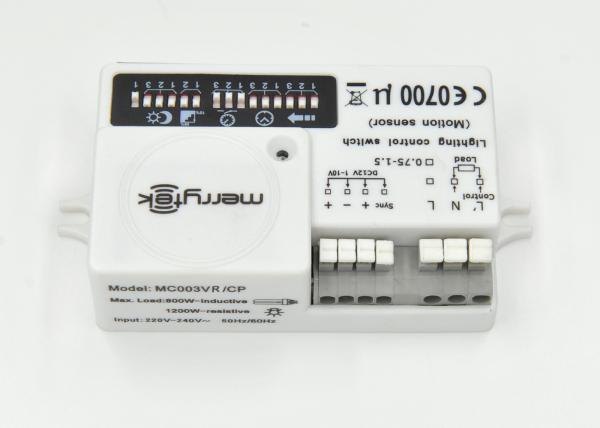

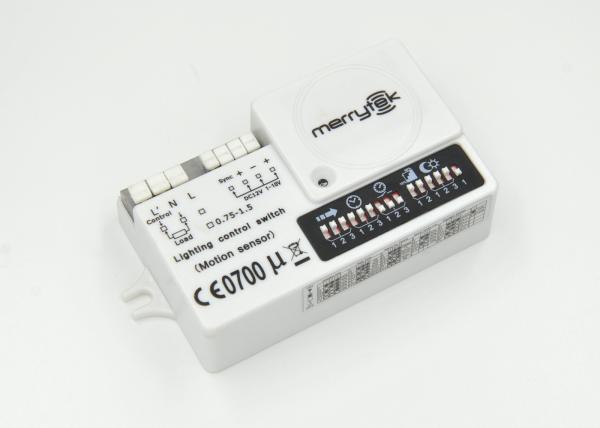

1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
1 - 10v Dimming Wireless Motion Sensor For Lighting 12m Mounting Height
Specifications
Brand Name :
Merrytek
Model Number :
MC003V R - CP
Certification :
CE , R&TTE
Place of Origin :
China
MOQ :
Stop production, not available.
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20,000pcs per Month
Delivery Time :
1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Packaging Details :
Packed in bubble bags firstly, and then reinforced with carton for outer packing
Guaranty :
5 years
Product Name :
Microwave motion sensor
HF system :
5.8GHz ±75MHz, ISM wave band
Size (L×W×H) :
92x52x 25.5mm(
Approval :
CE & R&TTE
Mounting height :
12m Max
Operation temperature :
-35℃~70℃
Input Voltage :
220-240Vac,50HZ
Function :
Dim function ,RF wireless networking control
IP rating :
IP20
Description

1-10v Dimming Wireless Motion Sensor for Lighting , 12m Mounting Height

Description:

  • Special for RF wireless networking ,free of wiring ,easy to installation .
  • Max can be created 16 groups for working .
  • Patented products ,unique design .
  • Suitable for 12m mounting height application .
  • With advanced code detection technology, no code missing.
  • Automatic switching based on motion and ambient light level.
  • Zero-crossing point operation helps protect the sensor against in-rush current.
  • 5.8GHz high frequency microwave(C-Band license-free operation)
  • 4-pole press-in terminal (L, N, N,L′),easy assembly.
  • Detection area, time delay and daylight threshold can be precisely set via DIP switch.
  • MC003V R -CP is innovative and active motion detector with HF system 5.8GHz .Motion can be detected through plastic ,glass and thin non-metal materials .Merrytek takes the lead in using the rotary coding switch in RF transceiver ,very easy to create groups

Function :

Any-to-any communication

Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

800W(inductive), 1200W(resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 12m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

25％/50％/75％/100％

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years

Applications:

Thanks to RF wireless networking, this products is special for corridor application, with Max energy and comfortable experience .
