Temperature Control Microwave Motion Sensor Switch Automatic
Temperature Control Microwave Motion Sensor Switch Automatic
Temperature Control Microwave Motion Sensor Switch Automatic
Temperature Control Microwave Motion Sensor Switch Automatic
Temperature Control Microwave Motion Sensor Switch Automatic
Temperature Control Microwave Motion Sensor Switch Automatic
Specifications
Brand Name :
Merrytek
Model Number :
MC008S T
Certification :
CE & R&TTE
Place of Origin :
China
MOQ :
Stop production, not available.
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20,000pcs per Month
Delivery Time :
1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Packaging Details :
Packed in bubble bags firstly, and then reinforced with carton for outer packing
Operation temperature :
-20℃~60℃
Product Name :
Microwave motion sensor
Function :
On-off control
IP Rating :
IP 20
Rated load :
400W (inductive), 1000W (resistive)
Operating Voltage :
220-240Vac,50HZ
Detection :
Max(D×H):12m×3m
HF system :
5.8GHz ±75MHz, ISM wave band
Size (L×W×H) :
82x36.5x 25.5 mm
Approval :
CE , R&TTE
Description

Temperature Control Microwave Motion Sensor Switch Automatic

Description

1. Automatic switching based on motion and ambient light level.

2. Zero-crossing point operation helps protect the sensor against in-rush current.

3. 5.8GHz high frequency microwave(C-Band license-free operation)

4. 4-pole press-in terminal (L, N, N,L′),easy assembly.

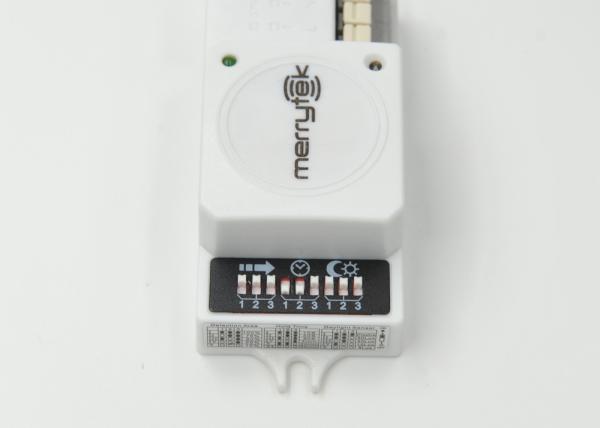

5. Detection area, time delay and Temperature threshold can be precisely set via DIP switch.

6. MC008S T is a innovation motion sensor to switch on off based on movement and Temperature .offer the end user a comfortable service .

Function:

ON-OFF function

Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

Inductive:400W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 3m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

10S/60S/90S/3min/5min/10min

Detection sensitivity

10%/25%/50%/75%/100%

Temperature

22℃±2℃,24℃±2℃,26℃±2℃,28℃±2℃

Life time

30,000 hours

Guaranty

3 years

Applications:

Washroom , etc
