DALI2 DT6 150-500mA 12W Dimmable LED Driver For Led downlight With NFC Programming
DALI2 DT6 150-500mA 12W Dimmable LED Driver For Led downlight With NFC Programming
Specifications
Brand Name :
Merrytek
Model Number :
KL12C-PDiiN
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20,000pcs per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Packaging Details :
white box+ Instructions Clapboard Outer Carton（K=A）
Operating Voltage :
220-240VAC 50Hz /60Hz
Power Factor :
≥0.9C @230VAC （Full load）
Stand-by Power :
≤0.5W（@230Vac）
Efficiency :
83%Max. @230VAC （Full load）
Operating mode :
DALI2 dimming & PUSH dimming
Installation dimension :
88*52*25.5mm
Warranty :
5 years
Output constant current :
150-500mA
Description
DALI2 DT6 150-500mA 12W Dimmable LED Driver For LED Downlight With NFC Programming
Product Overview

DALI2 DT6 150-500mA 12W dimmable LED driver for LED downlight with NFC programming

Product Features
  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • NFC technology for wireless programming
  • Built-in DALI interface DT6
  • Centrally-supplied DC emergency operation DT19
  • CLO compensation
  • Protection: short circuit / over temperature / over voltage
  • Derating the current for high ambient temperature
  • Push dim with memory function
  • 5-year warranty
Technical Parameters
Micro series: KL12C-PDiiN
Input Specifications
Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.07A Max.
Input Inrush Current <15A (Half current pulse width 100μs) @230Vac
Power factor (@230V 100% load) ≥ 0.9C
Total harmonic distortion Typical: 15% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac when PUSH or DALI turns off)
Efficiency (@230Vac, 100% load) 83%
Wiring Method 0.75-1.5mm²
Output Specifications
Operating mode Constant Current
Load type LED
Ripple requirement Flicker value: less than 5% for the whole dimming range
Start-up time <1s (@230Vac); <0.5s (@200Vdc)
No-load output voltage 55 V DC Max.
Load output voltage range 3-40V DC
Full load output power 12W
Load output current 150-500mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section: 0.75-1.5mm²
Control Method
Primary PUSH Dimming Primary PUSH dimming (Max. lead length: 20M)
Dimming Range Primary PUSH & DALI dimming: 0%-100%
DALI Dimming DALI dimming (Max. lead length: 300 m)
Protection & Environment
Output over temperature protection Yes, without self recovery function (Can be inquired)
Output short circuit protection Yes, with self recovery function (Can be inquired)
Operating temperature/humidity -25℃~50℃ Humidity: 85% (Non-condensing)
Storage temperature/humidity -40℃~80℃, Humidity: 10%-95%
Max. case temp (Tc) 85℃
Safety & Certifications
EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6 / 251 / 252 / 253 IEC62386-220 DT19
Safety standard EN61347-1 EN61347-2-13
Certification CE, CB, ENEC, SAA
Withstand voltage 3750Vac, 5mA, 60s (Input "L N" - Output "SEC")
Physical Specifications
Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Dimensions (with crimping) 88×52×25.5mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization Parallel: 15 units Max. Series: 25 units Max.
Packaging requirement PE bag + Instruction + kraft box + clapboard + outer carton (K=A)
Weight (With crimping) 80.2±5g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

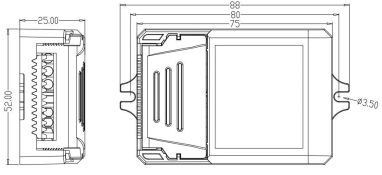

Dimensions
DALI2 DT6 150-500mA 12W Dimmable LED Driver For Led downlight With NFC Programming
Wiring Diagrams
DALI2 DT6 150-500mA 12W Dimmable LED Driver For Led downlight With NFC Programming
Fig. A DALI Dimming
DALI2 DT6 150-500mA 12W Dimmable LED Driver For Led downlight With NFC Programming
Fig. B Push Dimming
Derating & Dimming Curves
DALI2 DT6 150-500mA 12W Dimmable LED Driver For Led downlight With NFC Programming DALI2 DT6 150-500mA 12W Dimmable LED Driver For Led downlight With NFC Programming
Current Corresponding Voltage
Current (mA) Pomax (W) Uout (V)
150 6.0 3~40
200 8.0 3~40
250 10.0 3~40
300 12.0 3~40
350 12.3 3~35
400 12.0 3~30
450 12.2 3~27
500 12.0 3~24

The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.

DALI2 DT6 150-500mA 12W Dimmable LED Driver For Led downlight With NFC Programming
Scan the code to download Merrytek NFC App
Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s), the LED driver will turn on or off.
  • Dimming: Press and hold the PUSH switch (1s-8s). The LED driver can achieve dimming, brightening, or both, with a dimming range of 1-100%.
  • Memory: PUSH dimming has a dimming memory function.
  • Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15s.
  • DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
Important Safety Notes
  1. The LED driver must be connected to the load before turning on the input power; otherwise, the LED driver may be damaged.
  2. After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
  3. Before setting the parameters via NFC, please ensure the driver is powered off.
