36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output
36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output
36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output
36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output
36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output
36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output
Specifications
Brand Name :
Merrytek
Model Number :
KL36CC-PDiiN
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20,000pcs per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Packaging Details :
white box+ Instructions Clapboard Outer Carton（K=A）
Operating Voltage :
220-240VAC 50Hz /60Hz
Power Factor :
≥0.95 @230VAC （Full load）
Stand-by Power :
≤0.5W（@230Vac）
Efficiency :
88%Max. @230VAC （Full load）
Operating mode :
DALI2 DT8 dimming & PUSH dimming
Installation dimension :
154*63*28mm
Warranty :
5 years
Output constant current :
500-1100mA
Description

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output

【Product Feature】

  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • NFC technology for wireless programming
  • Built-in DALI interface DT8
  • Centrally-supplied DC emergency operation DT19
  • CLO compensation
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for a high ambient temperature
  • Push dim with memory function
  • 5-year warranty

【Parameters】

Input Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.19A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load) ≥ 0.95
Total harmonic distortion Typical:15% (@230Vac, 100% load)
Stand-by power ≤ 0.5W (@230Vac when DALI turns off)
Efficiency(@230Vac,100% load) 88% Max.
Wiring Method Wire cross-section: 0.75-2.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 35 45 55 /
type C10 C13 C16 C20 C25 C32
Number 35 50 55 75 95 120
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 5% for the whole dimming range
Start-up time <1s (@230Vac); <0.5s (@200Vdc)
No-load output voltage 68 V DC Max.
Load output voltage range 9-50V DC
Full load output power 36W Max.
Load output current 500-1100mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Wire cross-section: 0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max. lead wire length: 20m)
DALI Dimming DALI dimming (Max. lead length: 300m)
Dimming range Primary PUSH & DALI dimming: 0%-100%
Exception Protection Requirements Output over temperature
protection		 Yes, without self recovery function (Can be inquired)
Output short circuit protection Yes, with self recovery function (Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity: 85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity: 85% (Non-condensing)
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-101 / 102 / 207 DT6 / 209 DT8 / 220 DT19 / 251 / 252 / 253
Safety standard EN61347-1 EN61347-2-13
Certification CE, CB, ENEC
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Dimension 154*63*28mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization

Parallel: 15 units Max.

Series: 25 units Max.
Packaging requirement PE bag + kraft box + manual + partition + outer box (K=A)
Weight 179.5±5g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

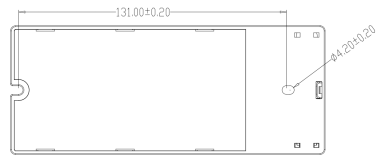

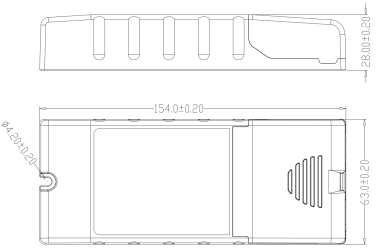

【Dimension】

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output

【Wiring Diagram】

Channel Mode: 1 address for 2 channel (209 DT8); 2 address for 2 channel (207 DT6);

1 address for 2 channels (207 DT6)

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output

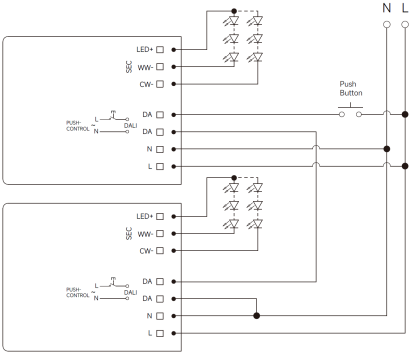

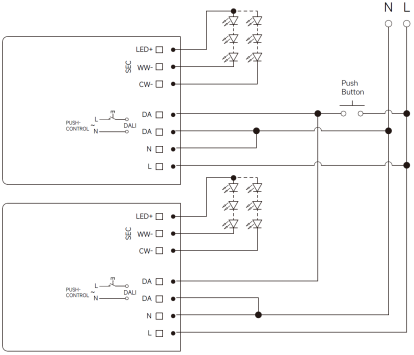

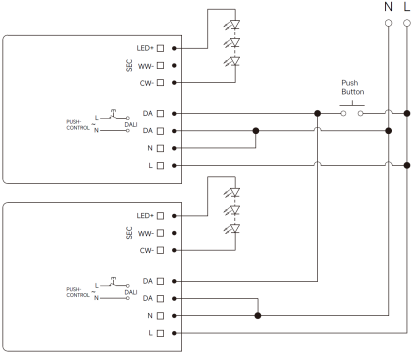

Fig A : PUSH Dimming (Parallel) Fig A : PUSH Dimming (series)

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output

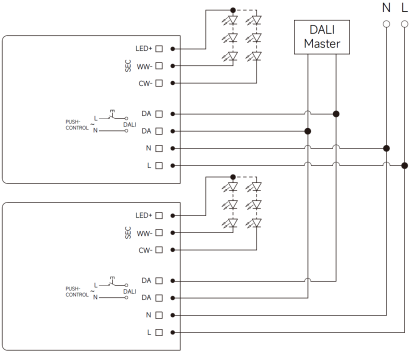

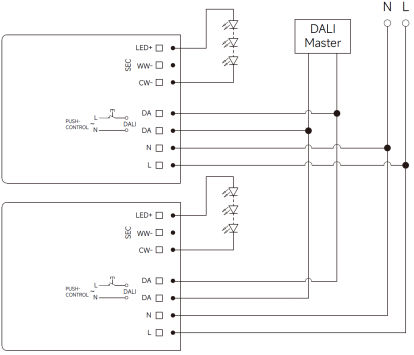

Fig C DALI dimming

Channel Mode: 1 address for 1 channel (207 DT6)

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output

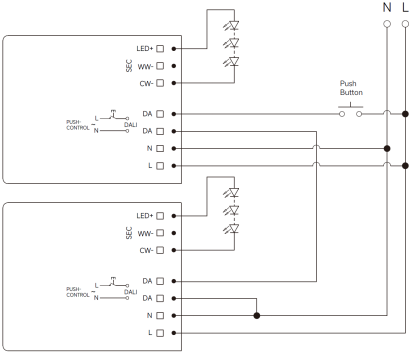

Fig D PUSH dimming (Parallel) Fig E PUSH Dimming (Series)

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output

Fig F DALI dimming

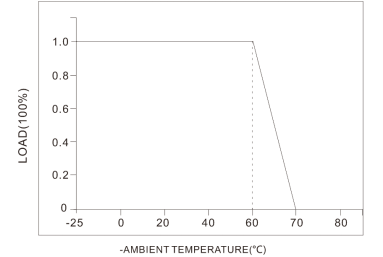

【Derating & Dimming Curve】

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output

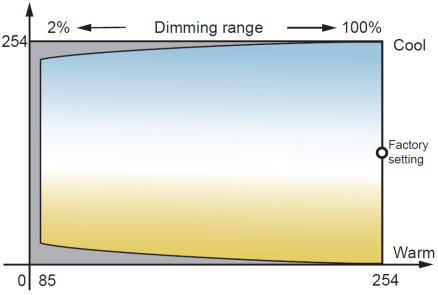

【Dimming Curve】

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output

【Current Corresponding Voltage】

KL36CC-PDiiN
Current(mA) Pomax(W) Uout(V)
500 25.0 9～ 50
550 27.5 9～ 50
600 30.0 9～ 50
650 32.5 9～ 50
700 35.0 9～ 50
750 36.0 9～ 48
800 36.0 9～ 45
850 35.7 9～ 42
900 36.0 9～ 40
950 36.1 9～ 38
1000 36.0 9～ 36
1050 35.7 9～ 34
1100 36.3 9～ 33

The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output

Scan the code to download Merrytek NFC

【ON/OFF & Description of Dimming Operation】

A. Short-press the PUSH switch (short press time 0.1s-1s), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1s-8s), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.

C. Color temperature adjustment:

Step 1, PUSH turns off the lights; Step 2, press and hold PUSH to adjust the color temperature starting from the current brightness; Release PUSH, press and hold PUSH again, and adjust the color temperature in the opposite direction; No operation for 5 seconds, exit color adjustment mode.

D. Memory: PUSH dimming has dimming memory function.

E. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds.

F. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.

【 Matters Needing Attention】

1) The LED driver must be connected to the load before turning on the input power; otherwise, the LED driver may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.

3) Before setting the parameters via NFC, please ensure the driver is powered off.
