Casambi ready wireless PIR motion and daylight detector with patented lens


1. Features

• Utilizes PIR infrared pyroelectric sensing technology

• Accurately detects human movement and outputs ON/OFF signals

• Supports ambient light intensity detection

• Supports integration with the Casambi Bluetooth system

• Supports setting the sensing range and delay time via the Casambi APP

• Maximum motion detection range: 10-14 meters in diameter

• 16A relay output, with a maximum load capacity of up to 1200W

(resistive load) and 600W (capacitive load)

• Supports up to 2kV lightning surge protection

• Recommended for motion detection in corridors and passageways

• Supports concealed ceiling-mounted installation

2. Parameters

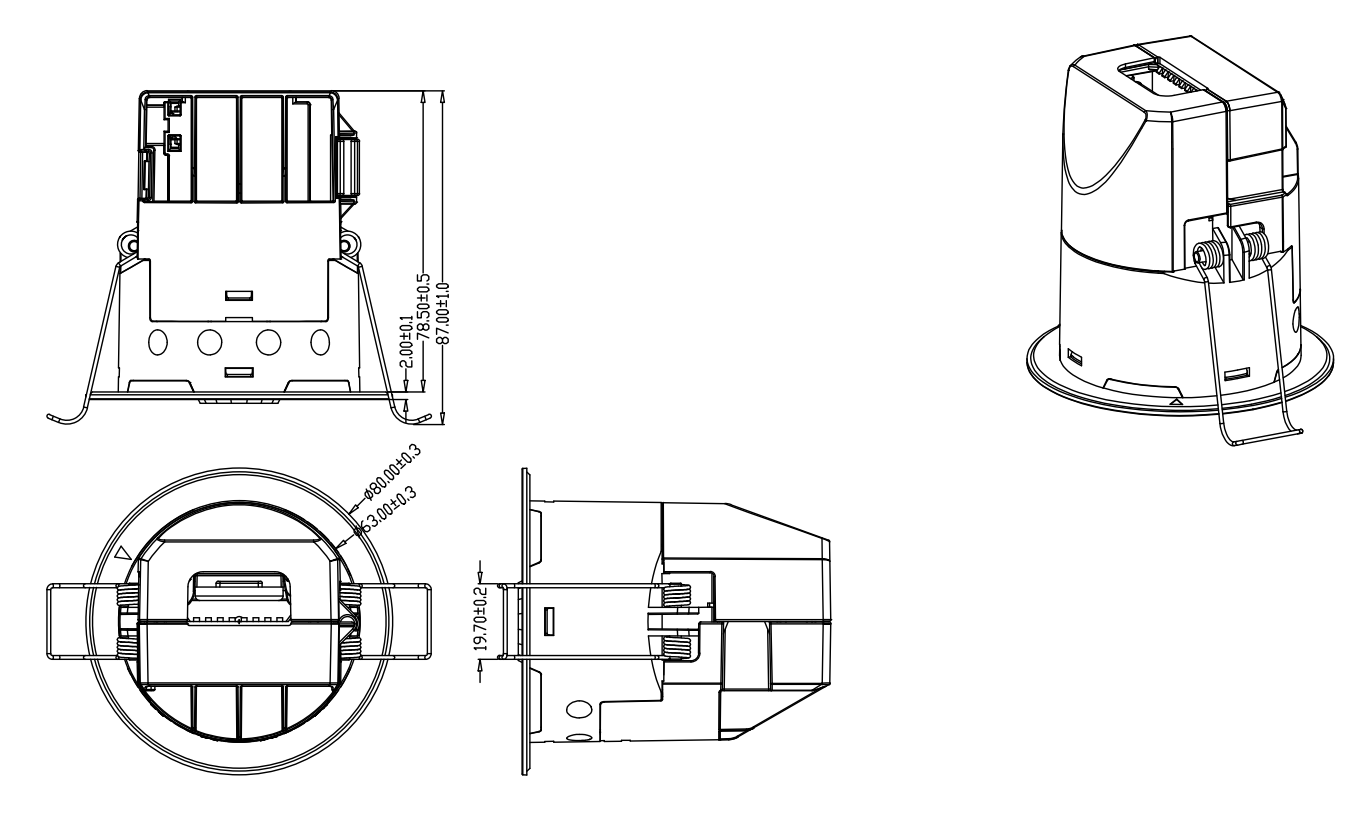

3. Dimension

4. Wiring Diagram

Remark:

1. LN is the AC input terminal, and L'N is the AC output terminal. Please ensure the correct wiring sequence during connection.

2. The single load requirement for a single sensor output is: resistive load not exceeding 1200W, and inductive load not exceeding 600W. When connecting multiple loads, the surge value and total load must be considered comprehensively. If you only want to consider the power of the connected loads, we recommend connecting an AC contactor or AC solid-state relay to the sensor output to prevent damage to the sensor due to instantaneous overcurrent when one sensor drives multiple loads.

3. The effective range of Bluetooth communication is 40m in an open area. If there are walls blocking the signal, it may affect the quality of Bluetooth communication.

5. Detection of radiation

6. Detection Signal

The product detects human moving signals, and below is a description of the moving signals:

Moving signal: detect the human significant moving (walking) in the detection area.

7. Initialization

When powered on, the sensor indicator will turn off after flashing for 35 seconds and will not detect a moving signal during this time. After 35S, you can use the MH18/MH10 remote control or the Casambi App to adjust sensor parameters.

8. Factory setting

Detection Sensitivity: 100% Hold Time: 2s LED indicator: ON

9. Attention

1. The sensor should be installed by a professional electrician. Please disconnect the power before installation and wiring.

2. The optimal installation height for this sensor is 3m. It should not be installed outdoors to avoid false triggers due to ambient temperature changes. It should also not be installed in locations sensitive to temperature or airflow changes to prevent false triggers or sensor failure due to excessive temperature.

3. There should be no screens, furniture, large potted plants, or other obstructions within the detection range of this sensor.

4. There should be no reflective objects directly in front of this sensor, as reflected light can cause false triggers.

5. The sensor needs to be kept away from large electromagnetic radiation devices, such as Wi-Fi routers, cameras, and microwave ovens. A distance of at least 2 meters is recommended to prevent electromagnetic interference.

6. The sensing distance of this sensor may fluctuate depending on the installation height and ambient temperature, deviating from the typical value.

9. Disclaimer

Due to the complexity of product technology and differences in the application environment, it is difficult to guarantee a completely accurate or complete description, so this specification is only for user reference.

We will reserve the right to make changes to the product specifications without notifying the user, and we do not make any commitments or guarantees in the legal sense. At the same time, our company encourages users to supplement or modify the contents of our specifications after using our products.

For more information, please get in touch with our sales rep. for more details.
