Specifications
Brand Name :
Merrytek
Model Number :
MSA070 IR
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10,000pcs per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
White box+ White box tags+ Clapboard+ Carton(K=A)
Input Voltage :
9.5-22.5Vdc
Working current :
7mA mAX.
Power Consumption :
≤0.5W
Function :
DALI-2 PIR motion & daylight sensor
Available :
Motion detectiong, daylight sensor
Mounting Height :
2.5-4m
Installation :
Flush-mounted
Cut size :
Φ35mm
Description

35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector


1. Features

• Utilizes PIR infrared pyroelectric sensing technology

• Flat lens design for an aesthetically pleasing appearance

• Accurately detects human movement and outputs a DALI 2.0 signal

• Powered by the DALI bus and connects to the DALI communication bus

• Supports ambient light detection

• Supports remote control setting of sensing range and delay time

• Maximum motion detection range: 8-10 meters in diameter

• Recommended for motion detection in corridors and passageways

• Supports concealed, recessed installation

• Ultra-small size; blends seamlessly with the ceiling after recessed installation



2. Parameters

Input/Output Input voltage DALI bus power
Related Voltage 9.5-22.5V DC
Working Current 7mA Max. (During the DALI master device's search process, the instantaneous current will reach 20mA)
Working Power ≤0.5W
Output signal DALI2.0
Sensor Parameter Detection Method PIR + Daylight
Detection Sensitivity MH18 remote setting:100% 75% 50% 25%
Hold Time

MH18 remote setting:2s/30s/1min/3min/5min/10min/30min

DALI master: 2s(fixed)+1s -30min(DALI master setting)
DALI Protocol Compliant 101, 103, 303, 304
Daylight Sensor 0-1200Lux
Radius detection range(based on 100% sensitivity and 3m mounting) 4-5m (Tangent detecting range, @25℃)
Remote control Available
Mounting height 2.5-4.0m typical value:3m
Application Environment Drill hole Φ35mm
Working Temperature -25℃...+50℃ (The lower the temperature, the longer the sensing distance may be; the higher the temperature, the shorter the sensing distance may be)
Storage Temperature -40℃~+80℃
Wiring Preparation Diameter:0.2-2.5mm², Stripping length: 7-8mm
Certificate Standard Certificate Compliant with CE

Environmental Requirement

Compliant with RoHS
IP Rating IP20
Warranty 3 years (Limit to the product defective only)
Note: "N/A" means not available.

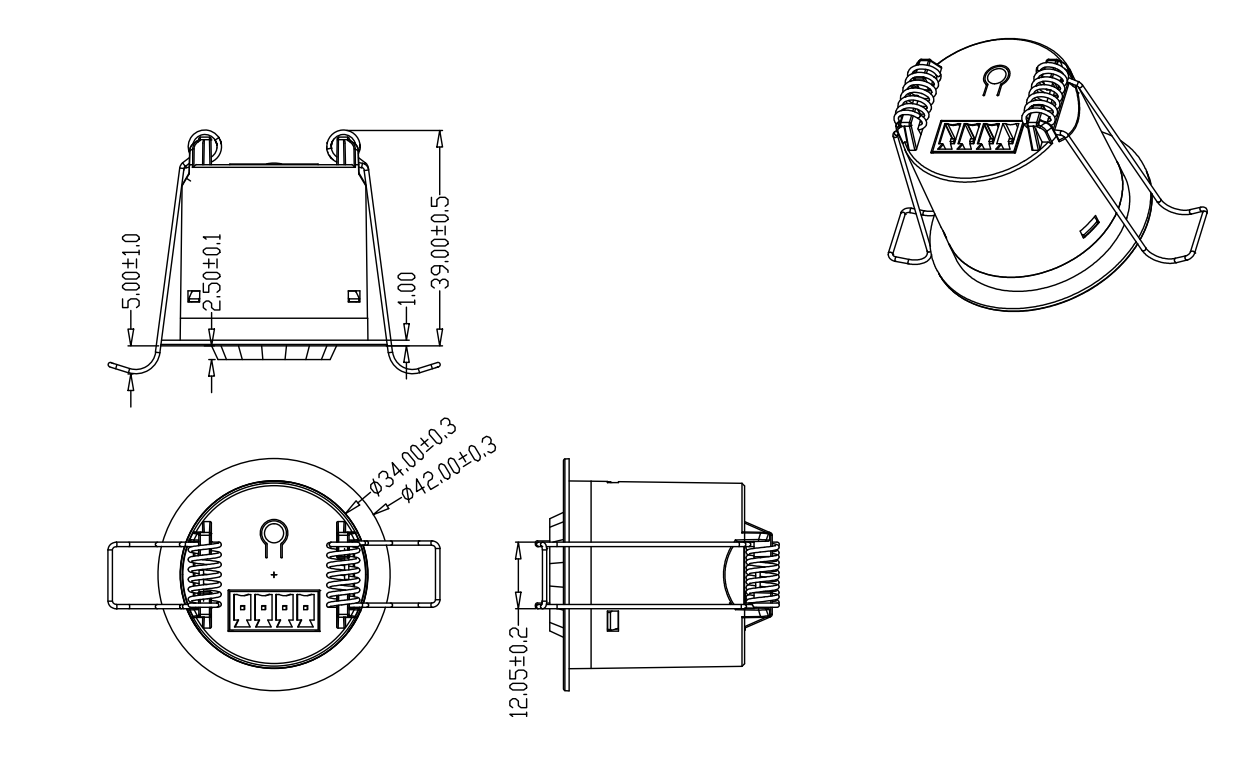

3. Dimension

35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector

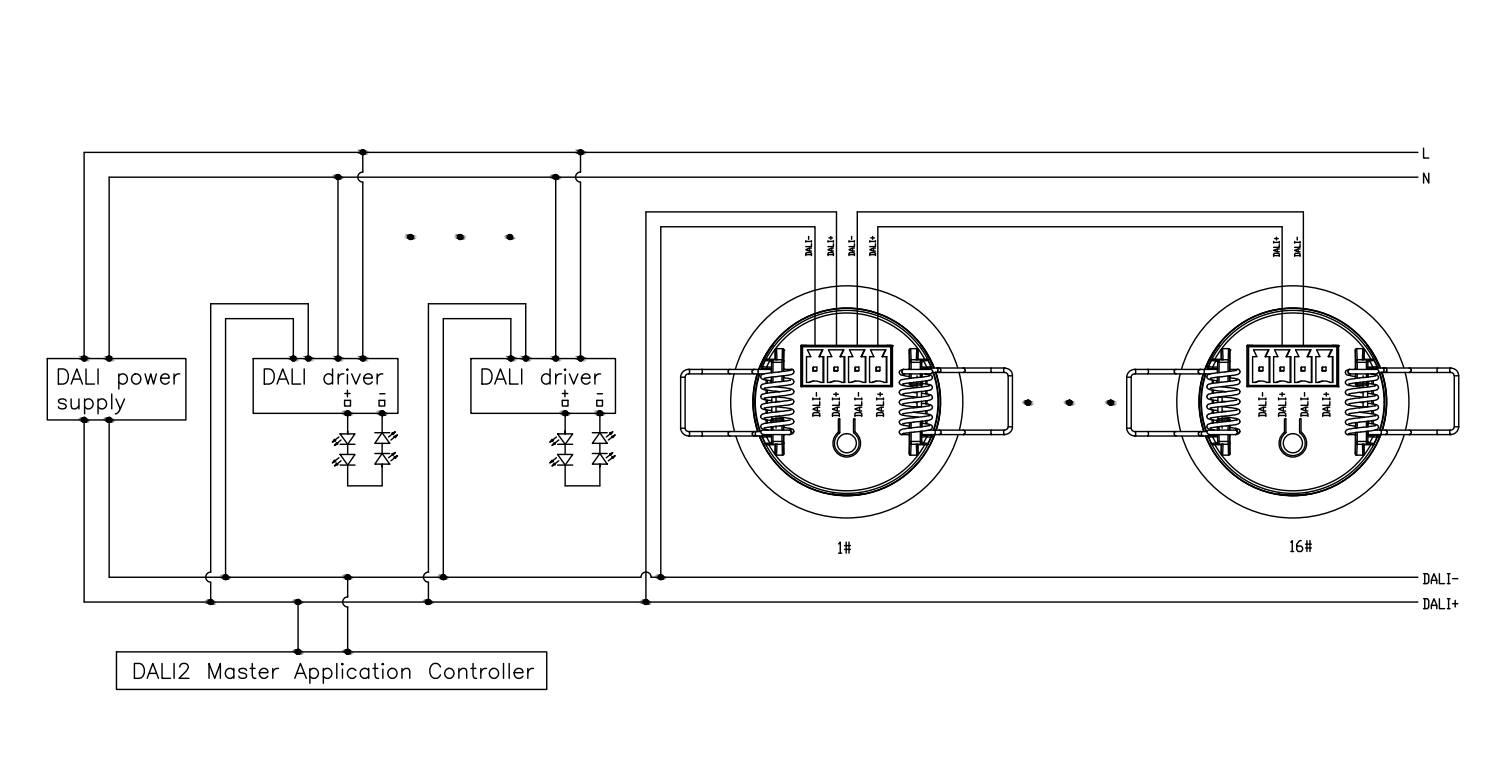

4. Wiring Diagram

35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector

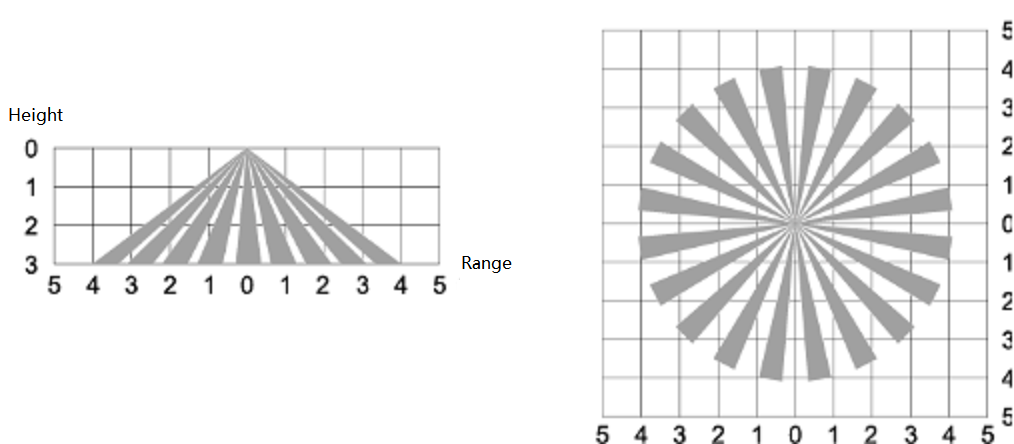

5. Detection of radiation

35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector

6. Detection Signal

The product detects human moving signals, and below is a description of the moving signals:

Moving signal: detect the human significant moving (walking) in the detection area.

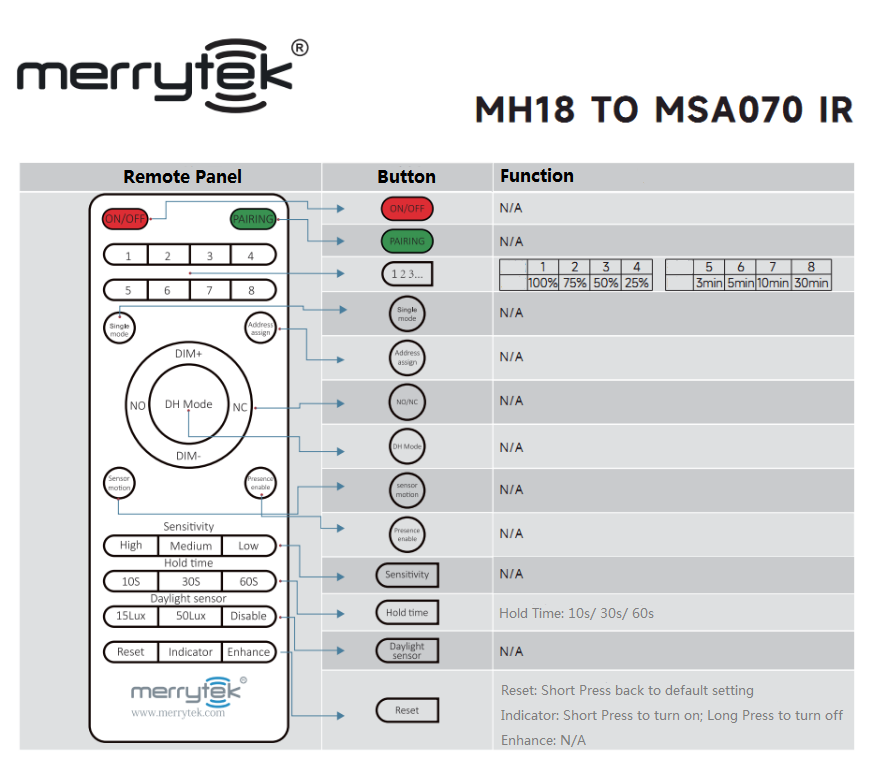

7. Remote Control MH18

35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector

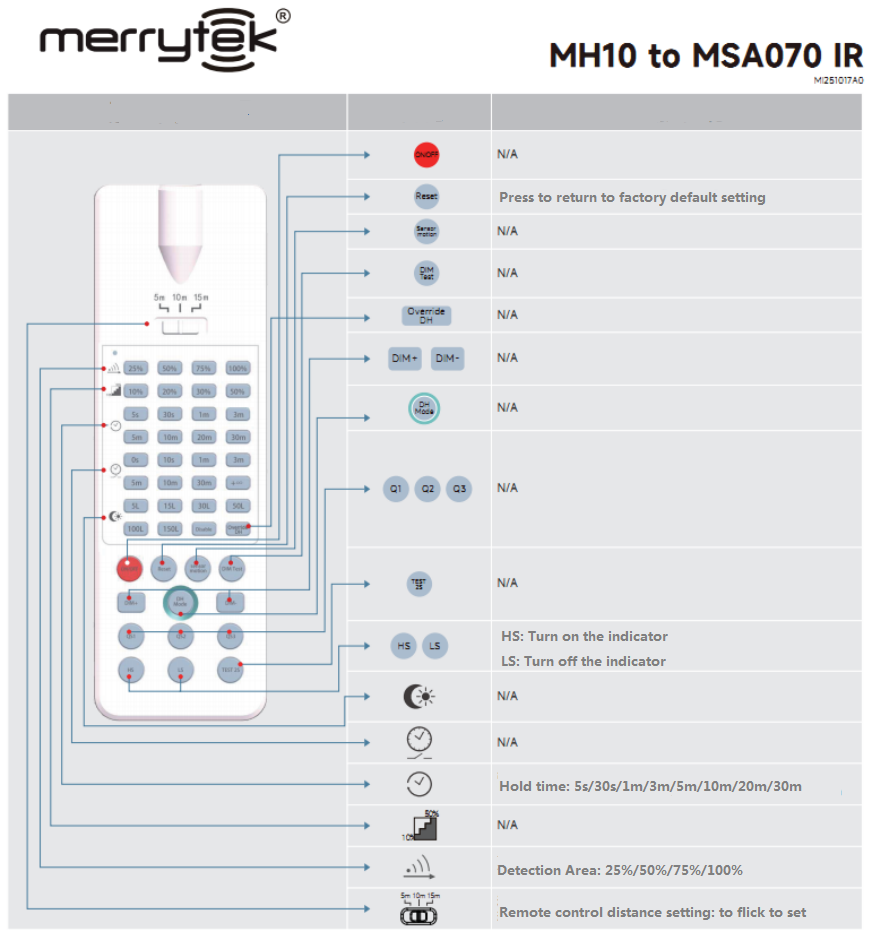

Remote Control MH10

35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector

8. Attention

1. The sensor should be installed by a professional electrician. Please disconnect the power before installation and wiring.

2. The optimal installation height for this sensor is 3m. It should not be installed outdoors to avoid false triggers due to ambient temperature changes. It should also not be installed in locations sensitive to temperature or airflow changes to prevent false triggers or sensor failure due to excessive temperature.

3. There should be no screens, furniture, large potted plants, or other obstructions within the detection range of this sensor.

4. There should be no reflective objects directly in front of this sensor, as reflected light can cause false triggers.

5. The sensor needs to be kept away from large electromagnetic radiation devices, such as Wi-Fi routers, cameras, and microwave ovens. A distance of at least 2 meters is recommended to prevent electromagnetic interference.

6. The sensing distance of this sensor may fluctuate depending on the installation height and ambient temperature, deviating from the typical value.

9. Disclaimer

Due to the complexity of product technology and differences in application environment, it is difficult to guarantee a completely accurate or complete description, so this specification is only for user reference.

We will reserve the right to make changes to the product specifications without notifying the user, and do not make any commitments and guarantees in the legal sense.At the same time, our company encourages users to supplement or modify the contents of our specifications after using our products.

For more information, please get in touch with our sales rep. for more details.
