【Product Features】

• 7.5-13VDC Input ,Matching DC power or With 12VDC
• LED driver supply for auxiliary power output
• 5V PWM dimming signal , 3 steps or 2 steps dimming
• All motion sensor parameter setting by DIP
• Low impedance antenna module with light guide column design small size, can reduce the opening of the lamp board；
• Daylight priority function

【Parameter】

【Function description】

On/OFF Function (set Stand-by Period to “0s”)

2-step Dimming Function (set Stand-by Period to “+∞”)

3-step dimming function (stand-by period be set to “10S/1min/3min/5min/10min/30min”)

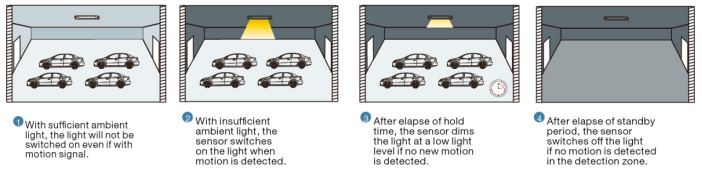

Daylight Priority (MH10 remote control long press 3S “DH Mode”, and Daylight Sensor be set to “5lux/15Lux/30Lux/50Lux/100lux/150lux ”, other sensor parameters can be set actual needs)

【Diagram】

• Dimension(mm)

​

• Wiring, Function

​

【DIP Switch setting】

• radiation diagram

​

【Initialization】

The sensor will turn on the light at 100% brightness for the first time, and turn it off after 10 seconds. During the initialization period, no external motion sensing signal will be detected.

【Default setting】

Sensitivity: 100% Hold time: 5s Daylight Sensor: Disable; Stand-by period: 0S; Stand-by Dim Level: 25%

【Application Notice】

• The sensor should be installed by a professional electrician. Please cut off the power before installing, wiring, changing the setting of the DIP switch, etc.
• The detection distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector. The detection distance given in the specification is a typical value, which is 165cm/65kg tester, and it is tested in an open indoor environment
• When the microwave sensor is installed on the wall, the detection distance will be greatly increased compared with that installed on the ceiling. If you use the wall installation method, please reduce the sensitivity to use or contact our company to confirm the use settings. The light sensitivity threshold is in a sunny environment, no shadows, and ambient light diffuse reflection conditions. In different time periods, climates, and environments, the illuminance value detected by the light sensor may be different
• Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer
• This sensor is only for indoor use, outdoor wind and rain, and surrounding moving objects will cause false triggering
• The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters; the distance between the two sensors should be greater than 3 meters
• When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, microwaves will be reflected multiple times and cause false triggering. Please reduce the sensor sensitivity or contact the manufacturer for technical support.
• Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
• Microwaves cannot penetrate metal, avoid installing in closed or semi-closed metal lamps, and there should be no metal or glass blocking the product
• Sensor with different PWM / 0-10V driver, low light effect may be different
• A DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV ; the load current should be greater than 25mA
• Product specifications and parameters may be optimized without prior notice
