Specifications
Brand Name :
Merrytek
Model Number :
MC131D B
Certification :
CE , RED
Place of Origin :
Shenzhen, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs/month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Packaging Details :
Bubble bag + partition + outer box (K=A)
Rated voltage :
12 ± 0.25VDC
Working current :
22± 2mA
output signal :
PWM dimming signal
working frequency :
5.8GHz ±75MHz, ISM band
Ripple voltage :
< 100mVp-p
installation height :
3m ( 6m Max )
Description

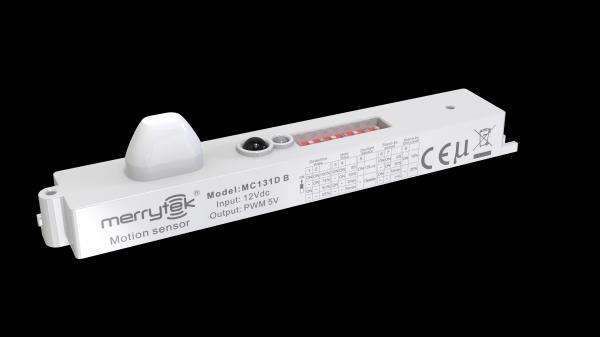

Long Strip PWM Dimming DC Moton Sensor, Support Remote Control Function, 6m Max

【Product Features

  • Patented Miniature Coupled Pole Antenna
  • Long strip shell, miniature antenna design, no shading
  • Ultra-low RF power output, harmless to human health
  • Support remote control and DIP switch to adjust parameters
  • Low side wave, high adaptability to metal environment
  • Not affected by temperature, humidity, noise, airflow, dust, light and other environment

Function description

√Switch function ○ Daylight harvesting
√Two stage dimming function ○ Daylightl priority function
√Three-stage dimming function


【Diagram】

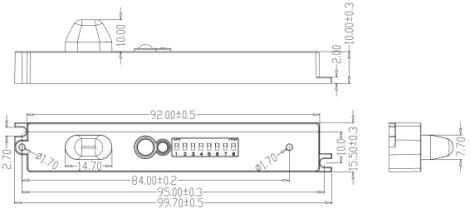

  • Dimension

Long Strip PWM Dimming DC Motion Sensor, Support Remote Control, 6m Max

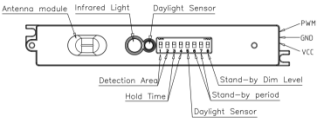

  • Wiring, Function

Long Strip PWM Dimming DC Motion Sensor, Support Remote Control, 6m Max

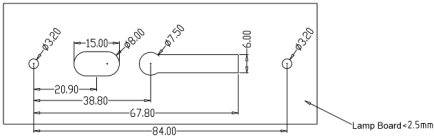

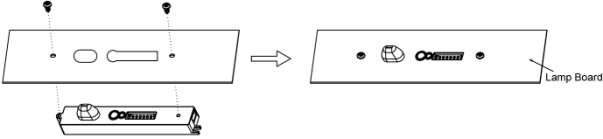

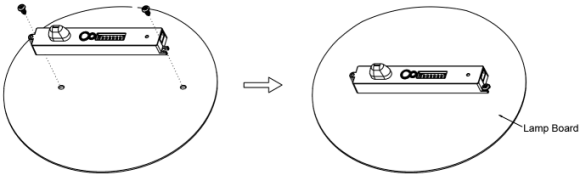

  • Installation

Long Strip PWM Dimming DC Motion Sensor, Support Remote Control, 6m Max
Long Strip PWM Dimming DC Motion Sensor, Support Remote Control, 6m Max
Long Strip PWM Dimming DC Motion Sensor, Support Remote Control, 6m Max

  • radiation diagram

Long Strip PWM Dimming DC Motion Sensor, Support Remote Control, 6m Max

Remote Controller MH10 Optinal】
