Specifications
Brand Name :
Merrytek
Model Number :
MC131D A
Certification :
CE , RED
Place of Origin :
Shenzhen, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs/month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Packaging Details :
Bubble bag + partition + outer box (K=A)
Rated voltage :
12 ± 0.25VDC
Working current :
22± 2mA
output signal :
0 -10VDC dimming signal
working frequency :
5.8GHz ±75MHz, ISM band
Ripple voltage :
< 100mVp-p
installation height :
3m ( 6m Max )
Description


12Vdc Long Strip 0-10V Dimmable Motion Sensor, With Remote Control Function, Miniature Antenna Design, No Shading


【Product Features

  • Patented Miniature Coupled Pole Antenna
  • Long strip shell, miniature antenna design, no shading
  • Ultra-low RF power output, harmless to human health
  • Support remote control and DIP switch to adjust parameters
  • Low side wave, high adaptability to metal environment
  • Not affected by temperature, humidity, noise, airflow, dust, light and other environment

Function description

√Switch function ○ Daylight harvesting
√Two stage dimming function ○ Daylightl priority function
√Three-stage dimming function


【Diagram】

  • Dimension

12Vdc Long Strip 0-10V Dimmable Motion Sensor, With Remote Control Function, No Shading

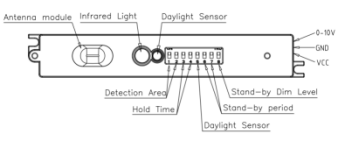

  • Wiring, Function

12Vdc Long Strip 0-10V Dimmable Motion Sensor, With Remote Control Function, No Shading

  • Installation

12Vdc Long Strip 0-10V Dimmable Motion Sensor, With Remote Control Function, No Shading
12Vdc Long Strip 0-10V Dimmable Motion Sensor, With Remote Control Function, No Shading
12Vdc Long Strip 0-10V Dimmable Motion Sensor, With Remote Control Function, No Shading

  • radiation diagram

12Vdc Long Strip 0-10V Dimmable Motion Sensor, With Remote Control Function, No Shading

Remote Controller MH10 Optinal】
