Specifications
Brand Name :
Merrytek
Model Number :
KL120VC-PDiiV1
Certification :
CE
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T or PayPal
Supply Ability :
10,000pcs per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
White box + Carton, 50pcs/CTN
Rated Input Voltage :
220-240Vac 50Hz /60Hz
DC Input Voltage range :
200-240Vdc
Operating mode :
DALI2 DT8 & PUSH & 1-10V dimming
Control Method :
24V DALI DT8 dimmable led driver
Power factor :
≥0.99
Efficiency :
92%
Constant Voltage :
24Vdc
Dimension :
202x58x30mm
IP rating :
IP20
Warranty :
5 years
Description
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
Product Description
High-performance 120W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.
  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Secondary dimming with a 0-10V dimmer and a potentiometer
  • Built-in DALI interface DT8
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Push dim with memory function
  • 5-year warranty
Technical Parameters
Series KL120VC-PDiiV1
Input
Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current (@230Vac) 0.6A Max
Inrush Current 30A (Half current pulse width 100US) @230VAC
Power factor ≥ 0.99 (@230Vac,100% load)
Total harmonic distortion Typical: 6% (@230Vac, 100% load)
Stand-by power ≤0.3W
Efficiency(230Vac,100% load) 92%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm²
Output
Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Forward voltage 24V
Output current 5A
Max. output voltage (no-load) 30V
Full load output power 120W Max.
Minimum load 12W
Output current/voltage tolerance ±5%
Wiring method Screw terminal, wire cross section:2*0.5-2.5mm²

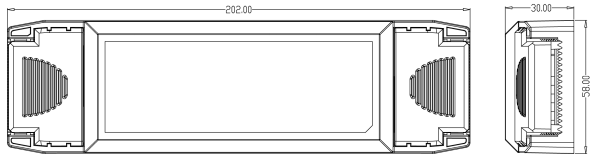

Dimensions
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty

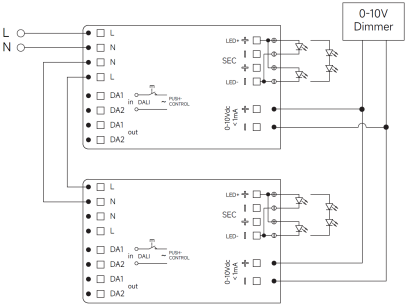

Wiring Diagrams
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty

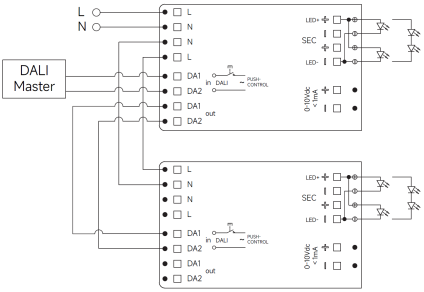

DALI Dimming
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty

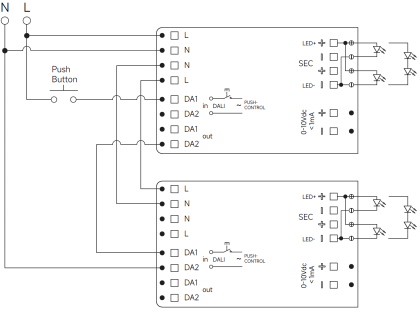

Push Dimming
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
  • Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
  • Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
  • Memory function: Remembers the last dimming setting
  • DALI dimming: Connect to DALI system for 0-100% dimming
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
