0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
Specifications
Brand Name :
Merrytek
Model Number :
MC103S 1
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10,000pcs per month
Delivery Time :
1, Sample and small order: within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
Bubble bag+Clapboard + Carton(K=A)
Rated Voltage :
220-240VAC 50/60Hz
Stand-by Power :
≤1W
Auxiliary Output :
12VDC 100mA(Max)
Working Mode :
PWM/0-10V/ ON/OFF
IP Rating :
IP20
Lifetime :
5 years warranty @Ta 230V full load
Description

0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current

1. Features

  • 12VDC auxiliary power supply for DC sensor, maximum 100mA current
  • 220-240VAC input
  • This product can realize 0/1-10V dimming and ON-OFF function by working with Merrytek DC sensor

2. Parameter

Input
Rated Voltage 220-240VAC 50/60Hz
Stand-by Power ≤1W
Surge Test 1KV(L/N,EN61000-4-5)
Output
AUG Inout 5PWM / 0-10VDC
AUG Output 12VDC 100mA(Max)
AC Load Capacity 400W@230Vac(Inductive Load), 800W @230Vac(Resistive Load)
ACMax. Surge Capacity

30A(@ 50% Ipeak, twidth 500us @230Vac full load & start at cold load.)

60A(@ 50% Ipeak, twidth 200us @230Vac full load & start at cold load.)
Environment
Interface 0/1-10V dimming port
Environment
Operating Temperature -25~60°C
Storage Temperature -40℃~80℃, Humidity: ≤85%(Non-condensing)
Certificate Standard
Certificate CE
Environmental Requirement Compliant to RoHS 2.0, Reach
Safety standards EN61058-1-2, EN61058-1
EMC standards EN61058-1,EN61000-3-2,EN61000-3-3,EN62479, EN301489-1, EN55015, EN300440
IP Rating IP20
Protection Class Class II
Other
Wiring Press-in Type Terminals, wire diameter:0.75-1.5mm2 & 3 pin 2.0mm fast connector
Installation Built-in
Package Bubble bag+Clapboard + Carton(K=A)
Net Weight 65±5g
Lifetime 5 years warranty @Ta 230V full load

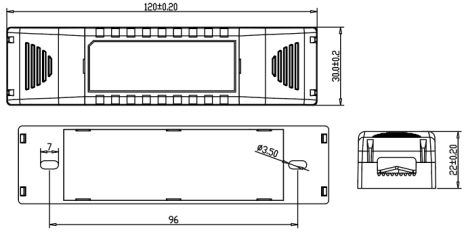

3. Dimension (mm)

0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current

4. Wiring

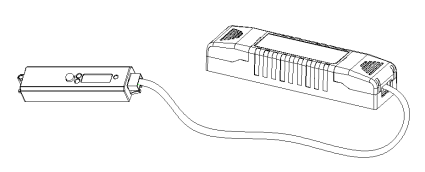

5. Wiring example when combined with Merrytek DC sensor

0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current

Note:
The product is designed for connect one load only.

6. Application Notice

1) The sensor should be installed by a professional electrician. Please turn off the power before installing or wiring.
