OEM Customized Design Round Tactile Switch With Glossy Surface

A round tactile switch is a type of electronic component commonly used in various devices for user input. Here are some key features:

• Shape: Round, typically with a dome-like top.
• Feedback: Provides tactile feedback when pressed, meaning users can feel a noticeable click or bump.
• Applications: Used in keyboards, remote controls, and other electronic devices where user interaction is required.
• Mounting: Can be surface-mounted or through-hole, depending on the design.

Membrane Switch Specification:

1)Material---for front or face overlay

Polyester

1.Highly versatile for embossing 2.Highly resistant to chemicals

3.Better durability 4.For internal and external use

Polycarbonate

1.Wide range of surface finishes and thicknesses

2.More cost-effective 3.For internal and external use

2) Embossing--rim embossing pillow embossing dim embpssing

Graphic overlays can be embossed in order to insert domes (tactile), leave space for mechanical keys and provide tactile indications Pedestal embossing

3)Windows ----for display function

1. print colors windows

2.transparent finishes windows

4)Keys/buttons

Tactile keys---with metal dome or poly dome

Non-tactile--silver printing spot

5) Embeded LEDs-

miniature LED, LED colors:white, yellow, orange, green, red, etc.

6)Cable

is an extension of the printed circuit and is used to communicate with your device

7)Types of connector

1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector

8) EMI / RFI / ESD Shielding

use an aluminum foil shielding / a clear ITO electrical conductive polyester

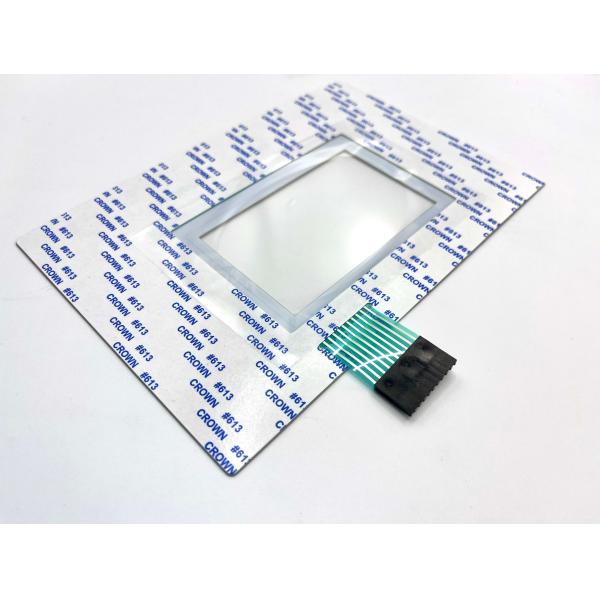

9) Adhesive ----mostly used are 3M-double-side glue

10)Backplate---in aluminum, polycarbonate or acrylic

Membrane switch Performance Index:

About Taida.pdf

Our Services :

1 Reply your inquiry within 24 working hours

2 Customize design is available ,OEM and ODM are welcome

3 Experienced Staffs answer your all question in professional and fluent English

4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs

5 Good service ,High quality ,test all goods and short lead time supply

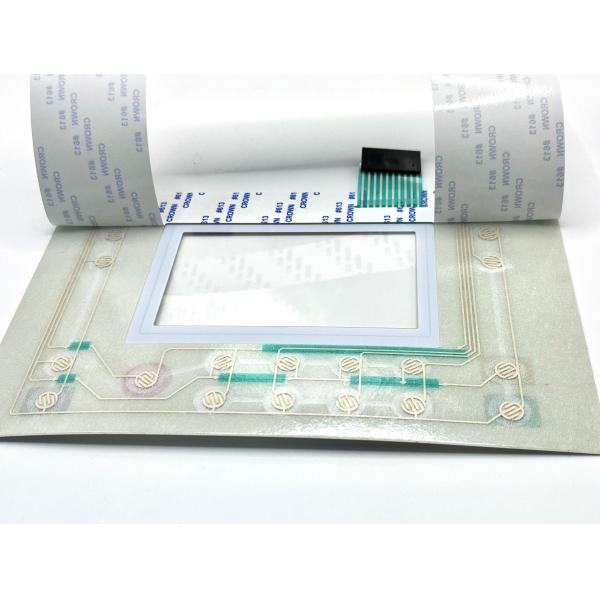

More Photos show :
