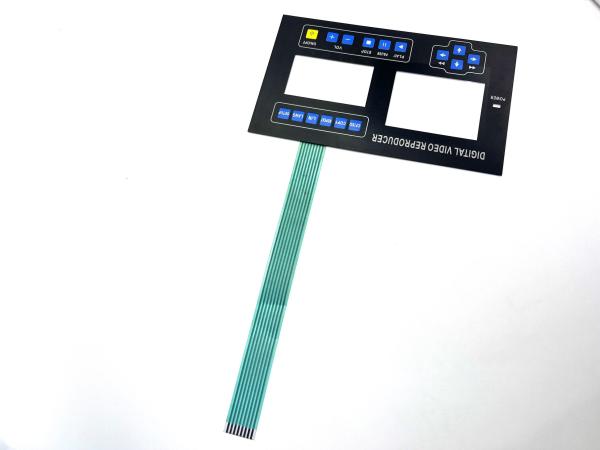

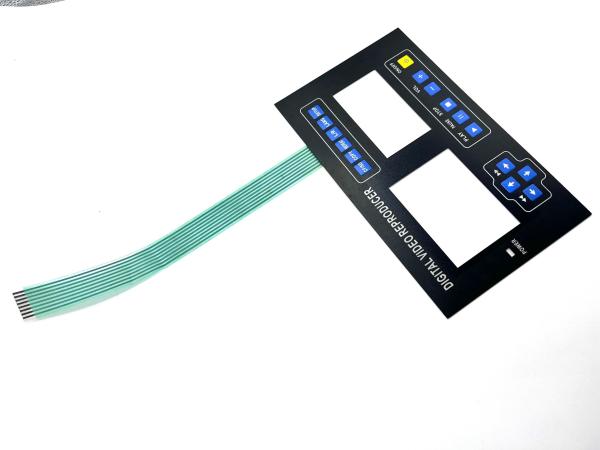

Customizable Embossing Keypad Membrane Switch 3M Adhesive
Customizable Embossing Keypad Membrane Switch 3M Adhesive
Customizable Embossing Keypad Membrane Switch 3M Adhesive
Customizable Embossing Keypad Membrane Switch 3M Adhesive
Specifications
Brand Name :
Taida or custom design
Model Number :
20241128-07
Certification :
ISO9001,ROHS,REACH,UL
Place of Origin :
DongGuan of China
MOQ :
100 pcs
Price :
communication
Payment Terms :
T/T,, Western Union,Paypal
Supply Ability :
30000 pcs a month
Delivery Time :
5 days for samples ,10 days for batch
Packaging Details :
PE bags first ,then custom carton
Surface finish :
Matte or glossy
Color :
PMS ,RAL ,RGB,CMYK or others
Material :
Polyester Or Polycarbonate
Adhesive :
3M Adhesive Or Others
Circuit :
Printing Silver Ink On PET Material
tail contact pitch :
2.54MM or others
Description

Customizable Embossing Keypad Membrane Switch 3M Adhesive

Features

  1. Construction: Typically made from layers of flexible plastic, including a printed circuit layer, an adhesive layer, and an overlay layer that protects the graphics.

  2. Functionality: When a key is pressed, the top layer contacts the circuit layer, completing an electrical circuit that sends a signal to the device.

  3. Customization: Membrane switches can be designed with specific graphics, colors, and layouts to match the device's aesthetics.

  4. Durability: They are resistant to moisture, dust, and chemicals, making them suitable for various environments.

  5. Space-saving: Their low-profile design allows for compact device design.

Applications

  • Consumer Electronics: Used in remote controls, appliances, and gaming devices.
  • Medical Devices: Found in equipment like diagnostic instruments and patient monitoring systems.
  • Industrial Controls: Utilized in machinery and equipment for operational control.
  • Automotive: Common in dashboards and control panels.

Advantages

  • Ease of Use: Simple and intuitive for users.
  • Cost-Effective: Generally lower manufacturing costs compared to other switch types.
  • Design Flexibility: Easy to integrate into various device shapes and sizes.

Technical Parameters:
Metal Domes Nickel, Gold Plated or Others
Max Current 100MA
Overlay Autotex F150 Polyester
Structure 6 Layers
Life Expectancy 1 Million Cycles
Life Cycles 500,000-1,200,000
Led Windows Clear, Tinted or Punching
Circuit Printing Silver Ink on PET Material
Travel Distance 0.1-0.5mm
Material Polyester or Polycarbonate


About Taida.pdf

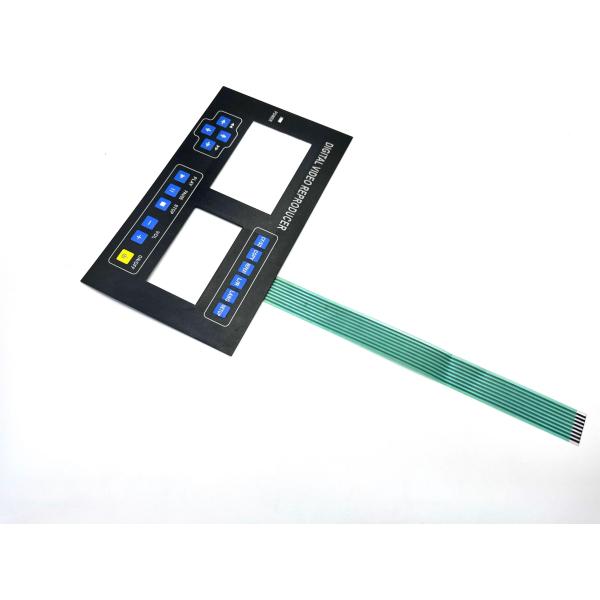

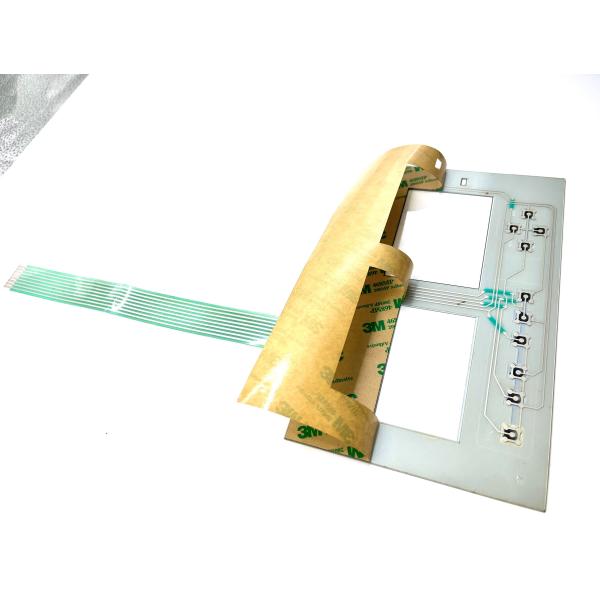

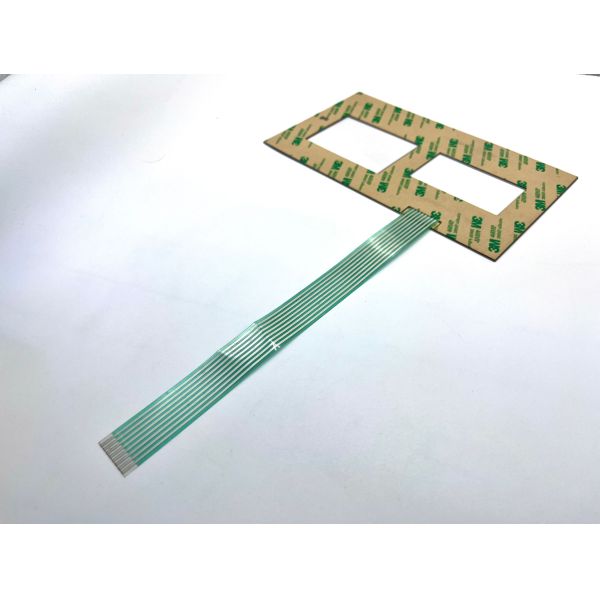

More photos:

Customizable Embossing Keypad Membrane Switch 3M AdhesiveCustomizable Embossing Keypad Membrane Switch 3M AdhesiveCustomizable Embossing Keypad Membrane Switch 3M Adhesive
