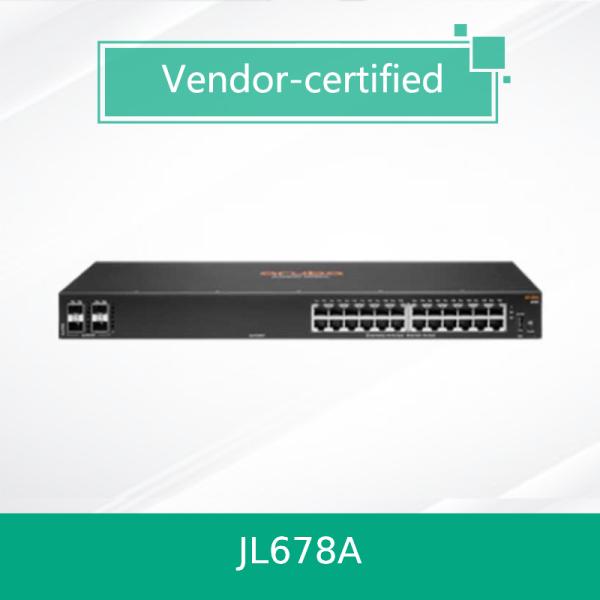

HPE Aruba Networking CX 6100 24G 4SFP+ Switch (JL678A)

High-Value Selling Points

This next-generation Layer 2 access switch delivers reliable, secure, and convenient wired connectivity for modern enterprise networks. It is an ideal Switch solution for branches, mid-market companies, and SMBs, supporting IoT, mobile, and cloud applications.

• Simplified IT operations with multiple management options including HPE Aruba Networking Central, CLI, and Web GUI.
• High-performance switching with 128 Gbps capacity and very low latency.
• Up to 370W PoE capability for powering IoT devices and wireless APs.
• Fanless and compact design for silent operation in workspace environments.
• No software licensing required, reducing total cost of ownership.

1. Product Overview

The Aruba CX 6100 24G 4SFP+ Switch (Model: JL678A) is an entry-level Layer 2 fully-managed switch designed for reliable and secure network access. It features 24x 1GbE RJ45 ports and 4x 1G/10G SFP+ uplinks, making it suitable for growing business networks that require high-speed connectivity and Power over Ethernet (PoE) support.

2. Key Characteristics

• 24x 10/100/1000BASE-T ports, 4x 1G/10G SFP+ ports
• Up to 370W PoE budget (IEEE 802.3at)
• Dual Core ARM Cortex A9 processor @ 1016 MHz
• 4 GB DDR3 memory, 16 GB eMMC storage
• Low latency: 1.5 μs at 1G, 1.8 μs at 10G
• Switching capacity: 128 Gbps, throughput: 95.2 Mpps
• USB-C console port and USB Type-A host port

3. Technology

The Aruba CX 6100 Switch runs on the HPE Aruba Networking CX Operating System (AOS-CX), supporting REST APIs for programmability and automation. It also features sFlow, ACLs, QoS, IPv6, and static routing capabilities.

4. Working Principle

The Switch operates at Layer 2, using MAC address learning and forwarding to manage traffic between connected devices. It supports PoE allocation per port, traffic prioritization, and can be managed via centralized platforms like HPE Aruba Networking Central.

5. Applications

Ideal for enterprise branch offices, SMBs, educational institutions, and healthcare facilities. Supports deployment of IP cameras, wireless APs, VoIP phones, and other IoT devices.

6. Specifications

7. Advantages

• Fanless and compact design for quiet environments
• No software licensing fees
• High-speed uplinks prevent bottlenecks
• Centralized management via HPE Aruba Networking Central
• REST API support for automation and SDN readiness

8. Service & Support

We offer 24/7 customer consultation and technical support. All products are guaranteed to arrive in perfect condition. Our professional team ensures timely delivery and post-sale service.

9. Frequently Asked Questions

Q: Does this switch support PoE?
A: Yes, it supports up to 370W PoE budget (IEEE 802.3at).

Q: What management options are available?
A: It can be managed via CLI, Web GUI, HPE Aruba Networking Central, or REST API.

Q: Is the switch fanless?
A: Yes, the 12-port model is fanless. The 24-port and 48-port models include fans.

10. Precautions

• Ensure proper ventilation and operating temperature.
• Use compatible SFP+ transceivers and cables.
• Verify power requirements for connected PoE devices.
• Follow local electrical and safety regulations during installation.
