Specifications
Model Number :
MFS1S00-H005V
keyword :
mellanox AOC cable
Warranty :
1 Year
Delivery Time :
Based on inventory
Technology :
InfiniBand
model :
MFS1S00-H005V
Packaging Details :
outer box
condition :
new and original
Brand Name :
Mellanox
Payment Terms :
T/T
Availability :
stock
name :
Mellanox AOC cable MFS1S00-H005V active optical cable up to 200Gb/s IB HDR QSFP56 5m
Supply Ability :
Supply by project/batch
type :
mellanox AOC cable
MOQ :
1pcs
Price :
Negotiate
Cable Length :
5 meters
Description

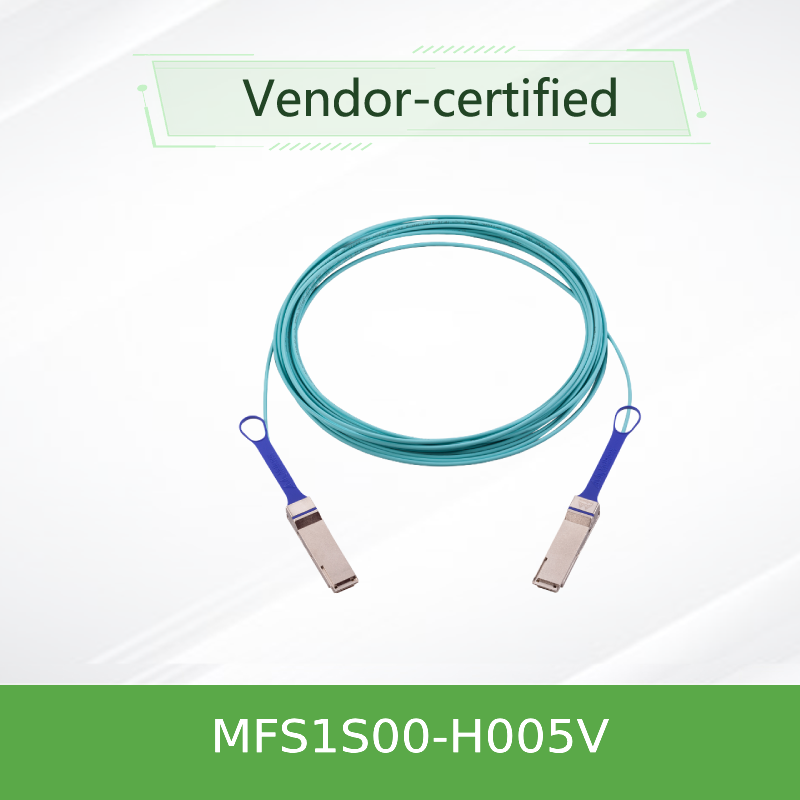

NVIDIA MFS1S00-H005V – 5m 200G QSFP56 AOC for InfiniBand HDR & 200GbE
High-performance 200Gb/s QSFP56 VCSEL-based active optical cable designed for InfiniBand HDR and 200GbE systems. This 5-meter cable features four multimode fiber channels operating at 50Gb/s PAM4 per lane, with hot-pluggable SFF-8665 compliant connectors and selectable retiming capabilities.
Key Specifications
Data Rate 200Gb/s (4×50Gb/s PAM4)
Length 5 m (MFS1S00-H005V)
Connector QSFP56 (SFF-8665)
Fiber Type Multimode (MMF)
Power Consumption 5.0W typical (per end)
Maximum Reach Up to 100 m
Protocols InfiniBand HDR, 200GbE
Management SFF-8636 I²C
Product Overview
The NVIDIA MFS1S00-HxxxV series is a QSFP56 VCSEL-based active optical cable designed for 200Gb/s InfiniBand HDR and 200GbE applications. The MFS1S00-H005V 5-meter variant provides a complete optical link with integrated transceivers at both ends, eliminating the need for separate optical modules and patch cords.
Key Features
  • 200Gb/s aggregate bandwidth - 4 lanes × 50Gb/s PAM4 modulation
  • QSFP56 form factor - SFF-8665 compliant, hot-pluggable
  • Selectable retiming - Per-lane Tx/Rx CDR control for flexible system integration
  • Programmable output - Rx output amplitude and pre-emphasis adjustments
  • Low power consumption - 5.0W typical per end with retiming enabled
  • Extended reach - Up to 100m over multimode fiber
  • Digital diagnostics - Real-time monitoring of temperature, voltage, bias current, and Tx/Rx optical power
  • RoHS compliant - Environmentally friendly materials
Technical Specifications
Parameter Value / Range Notes
Product Number MFS1S00-H005V 5 m length
Data Rate 200Gb/s (4×50Gb/s PAM4) Also supports 100Gb/s NRZ
Fiber Type Multimode (MMF) VCSEL-based optics
Connector Type QSFP56 SFF-8665 compliant
Power Dissipation 5.0W (typical, per end) With retiming on all lanes
Supply Voltage 3.135V - 3.465V 3.3V nominal
Cable Diameter 3.0 ±0.2 mm Round, flexible
Minimum Bend Radius 30 mm Anywhere on the cable
Length Tolerance (≥5m) +500 / -0 mm For 5m ≤ length < 50m
Operating Case Temp. 0 °C to 70 °C Internal readout up to 75°C
Storage Temp. −40 °C to 85 °C --
Maximum Reach Up to 100 m Depending on system budget
Ordering Information
Ordering Part Number Length Description
MFS1S00-H003V 3 m Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56
MFS1S00-H005V 5 m Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56
MFS1S00-H010V 10 m Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56
MFS1S00-H015V 15 m Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56
MFS1S00-H020V 20 m Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56
MFS1S00-H030V 30 m Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56
MFS1S00-H050V 50 m Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56
MFS1S00-H100V 100 m Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56
