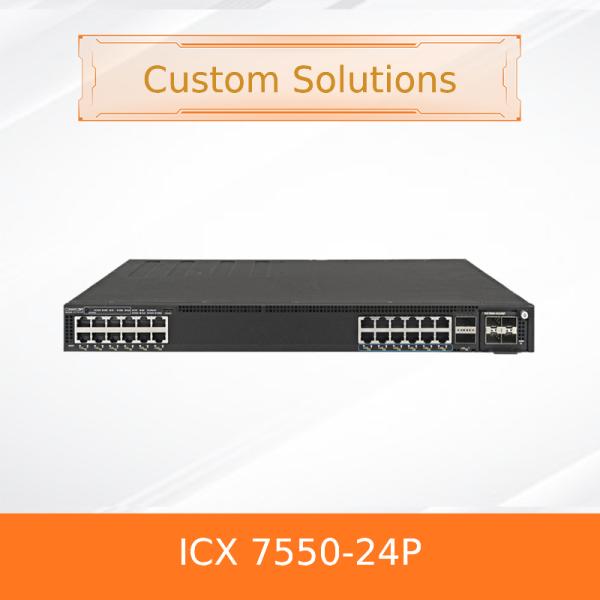

RUCKUS ICX 7550-24P Enterprise Stackable Switch

Product Overview

The RUCKUS ICX 7550-24P is a high-performance, stackable Gigabit Ethernet switch designed for enterprise access and aggregation layers. It delivers 24 ports of Gigabit Ethernet with PoE+ support, offering up to 30W per port and a total PoE budget of 1900W. With advanced Layer 3 routing, high availability features, and flexible uplink options, this switch is ideal for modern Wi-Fi deployments, IoT networks, and smart building applications.

Key Features

• 24 x Gigabit Ethernet ports with PoE+ (802.3at)
• Up to 1900W PoE budget with dual power supplies
• Perpetual PoE and Fast Boot PoE for uninterrupted power
• 2 x 40G QSFP+ uplink/stacking ports
• Stackable with up to 12 units (288 ports per stack)
• Advanced Layer 3 routing (BGP, OSPF, VRRP with license)
• MACsec encryption for enhanced security

Core Technologies

The RUCKUS ICX 7550 supports a wide range of enterprise-grade protocols and standards, including:

• IPv4/IPv6 Routing (RIP, OSPF, BGP)
• MACsec (128/256-bit encryption)
• sFlow for traffic monitoring
• OpenFlow 1.3 for SDN integration
• LLDP, QoS, VRF, and PIM

How It Works

The ICX 7550-24P operates as a standalone or stacked unit, using virtual switching technology to behave like a single chassis. It supports hitless failover, in-service software upgrades (ISSU), and redundant power and cooling. PoE devices remain powered during reboots thanks to Perpetual PoE technology.

Typical Applications

• Enterprise campus access layer
• Wi-Fi 6/7 access point connectivity
• IoT and smart building deployments
• VoIP and video surveillance systems
• Medium-density aggregation networks

Specifications

Advantages

• High PoE density with 1900W budget supports power-hungry devices
• Stacking without dedicated modules reduces TCO
• Advanced L3 features enable routing at the edge
• MACsec provides hardware-level encryption
• Unified management via SmartZone, Cloud, or Unleashed

Service & Support

All RUCKUS ICX 7550 switches come with a limited lifetime warranty. We offer 90-day technical support with optional extended support contracts. Our team provides 24/7 consultation and technical assistance to ensure seamless integration and operation.

Frequently Asked Questions

Q: What is the maximum PoE power per port?
A: Each port supports up to 30W with IEEE 802.3at (PoE+).

Q: Can I mix different ICX 7550 models in a stack?
A: Yes, all ICX 7550 series switches can be stacked together.

Q: Does the switch support Layer 3 BGP routing?
A: Yes, with the premium software license.

Q: What management options are available?
A: SmartZone, RUCKUS Cloud, or Unleashed for controllerless setups.

Precautions

• Ensure adequate airflow and operating temperature (0°C to 45°C)
• Use compatible RUCKUS optics and power supplies
• Verify PoE load calculations to avoid overloading the power budget
• Follow ESD safety procedures during installation
