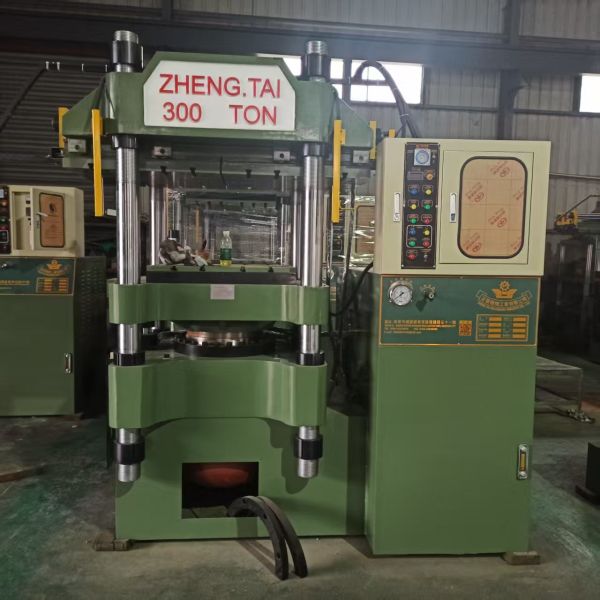

200 Ton 250 Ton Melamine Crockery Machine Dinnerware Press Machine PLC Control
200 Ton 250 Ton Melamine Crockery Machine Dinnerware Press Machine PLC Control
Specifications
MOQ :
1
Power(W) :
2500 W
machinery test report :
Provided
place of origin :
Dongguan
Size :
2000*1350*2200mm
Raw material :
Stainless Steel
warranty :
1 Year
Color :
green
MOQ :
1 set
Description
Melamine Dinner Making Machine with PLC Control
The Dongxin Melamine Crockery Machine is a heavy-duty automatic hydraulic compression molding press specifically engineered for manufacturing high-quality melamine tableware. Available in 200-ton, 250-ton, 300-ton, and 350-ton clamping force configurations, this PLC-controlled pressing machine transforms melamine molding compound (MMC), urea molding compound (UMC), and bamboo fiber materials into durable, food-safe dinnerware including plates, bowls, cups, spoons, and trays.
With Taiwan-upgraded hydraulic technology and precision-engineered casting components, Dongxin machines deliver stable vertical pressure up to 210 kg/cm², ensuring perfect mold filling and eliminating common defects like insufficient curing, burrs, or dimensional inconsistencies.
200 Ton 250 Ton Melamine Crockery Machine Dinnerware Press Machine PLC Control

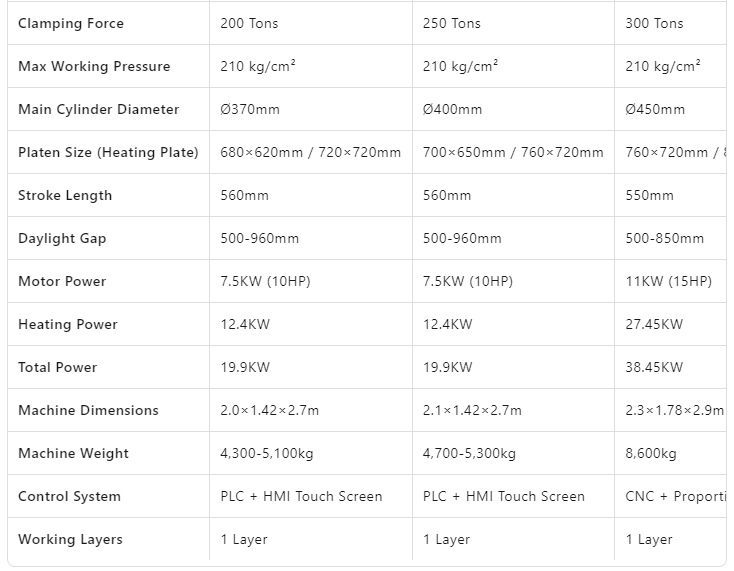

Technical Specifications
200 Ton 250 Ton Melamine Crockery Machine Dinnerware Press Machine PLC Control
Key Features & Engineering Advantages
Four-Column High-Rigidity Frame Structure
Constructed from Grade 50 nodular cast iron (ductile iron) with heat-treated tension columns (Ø90mm-Ø120mm), the Dongxin press frame withstands high off-center loads without deformation. This heavy-duty construction ensures 15+ years service life, significantly outperforming standard cast iron alternatives.
Precision Hydraulic System with Proportional Control
  • 200-250 ton models: High/low-pressure loop system with smooth, noise-free operation
  • 300-350 ton models: Yuken double proportional valve (Japan) enabling infinite adjustment of speed and pressure during pressing cycle
  • Maximum air release frequency: Up to 99 times for complete degassing, preventing bubbles and ensuring dense, strong tableware
Intelligent PLC Control & HMI Interface
  • Siemens/Mitsubishi/Delta PLC options with 7-inch color touchscreen
  • 100+ product formulas storage capacity for quick mold changeover
  • Three-level permission management: Operator, Engineer, Administrator
  • Real-time monitoring: Temperature, pressure, cycle time, production count
  • Fault diagnosis: Automatic alarm system with troubleshooting guidance
Advanced Heating System for Optimal Curing
  • Electric heating plates made from 45# steel with chrome plating
  • Temperature range: Room temperature to 180°C (adjustable per material specification)
  • Uniform heat distribution: Prevents hot spots that cause warping or incomplete curing
  • Fast preheating: Reduces startup time and energy consumption
Safety & Automation Features
  • Photoelectric safety grating: Protects operators during mold closing
  • Emergency stop buttons: Multiple locations for immediate shutdown
  • Mold protection: Slow-speed mold closing initially, then high-speed synchronization to prevent damage
  • Automatic ejection: Ensures smooth product removal without manual intervention
200 Ton 250 Ton Melamine Crockery Machine Dinnerware Press Machine PLC Control
