Specifications
Brand Name :
ZHENGTAI
Model Number :
500T
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1
Price :
23250
Payment Terms :
L/C,T/T
Supply Ability :
20
Delivery Time :
5-8 work days
Packaging Details :
Normal packing
Clamping force :
500 TONS
Machine type :
Compression Moulding Machine
Control system :
PLC control with touch screen
Product name :
Melamine Tableware Moulding Machine
Material compatibility :
Melamine resin
Machine size :
2250*1360*2250 mm
Description

Our Melamine Tableware Hydraulic Press Machine is engineered for the precision manufacturing of high-quality melamine plates, bowls, trays, and various crockery items.

Designed for durability and efficiency, this machine utilizes advanced hydraulic pressure systems to ensure uniform density and a flawless glossy finish on every piece of tableware. Whether you are producing single-color or multi-color (decal) melamine ware, our equipment offers the stability and control required for industrial-scale production.

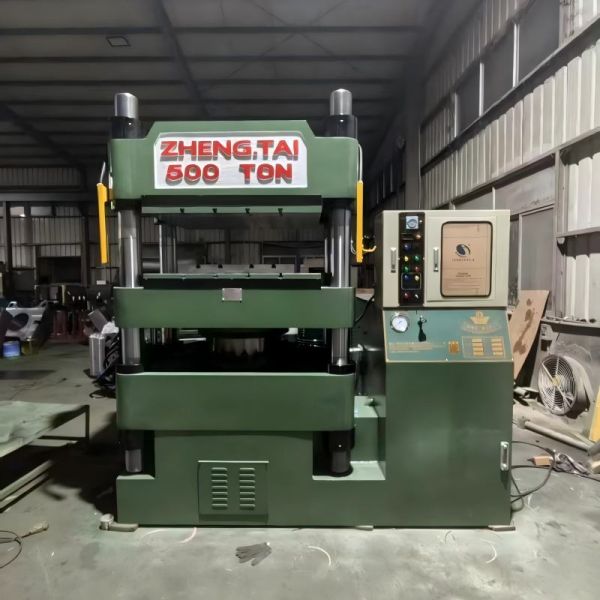

500 TONS Melamine Tableware Hydraulic Pressure Machine For Crockery Items

ZT500T SINGLE COLOR HYDRAULIC PRESS MACHINE

Technical parameter

Cylinder diameter

450 mm

Total pressure

500 tons

Table size

900 * 1000 mm

Trip

560 mm

Guide post diameter

140 mm

Machine weight

11800 kgs

Machine size

2250*1360*2250 mm

Oil reservoir capacity

486 L

Maximum pressure

210KG/CM2

Average Powder Consumption

11KW/H

Machine configuration

Heat shield

High pressure asbestos board

Heating plate thickness

80mm

Heating mode

heating plate (SSR controlled)

Heating capacity

28.2KW

Electric machinery

7.5KW 10P

Oil pump

Sino-foreign joint venture LAONAISHI

Solenoid valve

Japan YUKEN

Full oil valve

Sino-foreign joint venture LAONAISHI

PLC

Taiwan Shilin

POD

Fuji, Japan

Advantages :

1. Unit Price: High cost-performance ratio.

2. Application: Primarily serves A5 melamine product manufacturing and resin-bonded craft production, such as hotel resin crafts, melamine tableware, chopsticks, toilet seat covers, appliance enclosures, molded storage bags, lampshade tops, and a range of daily chemical products.

3. Applicability: Compared to other factory molding machines, we prioritize production details and operator comfort, enhancing production efficiency and product yield rates.

Operation: Our equipment features smoother, faster movements than other molding machines. Its modular design allows for easier disassembly and maintenance. The insulated frame significantly extends the lifespan of insulation panels. Asbestos-based insulation provides superior thermal performance.

500 TONS Melamine Tableware Hydraulic Pressure Machine For Crockery Items

FAQ Melamine Compression Machine

Q: How can l get the machine l want?

A: We will give professional advice according to customers' requests, we will talk with our customer one by one.

Q: What's the delivery time for machine?

A. 20 to 40 days after confirmed order, depending on the machine order quantity and machine model.

Q: What is the package for melamine dinnerware compression machine?

A. The weight of the DONGXIN brand machinery is the standard weight it is recommended to transport the whole container (FCL), film packaging, use wood to fix the four corners of the base to prevent movement, thenthicken the wire The zipper is fixed in the container, so that the machine will not move or shake during transportation, to keep sure machine is perfectly transported to your factory.
