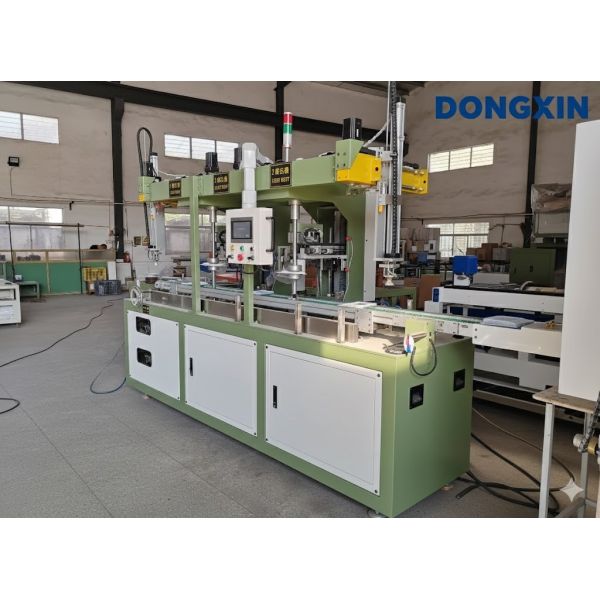

Manufacturer Automatic Grinding Machine For Melamine Tableware is a high-precision surface finishing system engineered specifically for the melamine dinnerware industry. This advanced polishing equipment delivers mirror-grade surface finishes on melamine plates, bowls, trays, and crockery items, eliminating molding seams, surface imperfections, and rough edges from the compression molding process.

Our automatic grinding machines utilize multi-stage abrasive processing technology combined with intelligent pressure control systems to achieve consistent surface quality across high-volume production runs. Designed for melamine tableware manufacturers seeking export-quality finishing standards, this equipment reduces manual labor costs while increasing throughput by 300% compared to traditional hand-polishing methods.

• Rough Grinding Station: Removes parting lines and flash from molded products using coarse abrasive belts (P80-P120)
• Medium Grinding Station: Smooths surface texture with medium grit abrasives (P180-P240)
• Fine Polishing Station: Achieves glossy finish using fine abrasives (P320-P600) combined with polishing compounds
• Buffing Station (Optional): High-speed cloth wheel buffing for mirror-like surface finish

• Servo-driven pressure application maintaining consistent contact force across curved surfaces (bowls, plates with rims)
• Automatic thickness compensation adjusting for product dimensional variations
• 3D contour following technology ensuring uniform material removal on complex geometries

• Vacuum pickup systems for delicate melamine products preventing surface damage
• Rotary indexing tables enabling continuous loading/unloading during operation
• Optical product detection ensuring proper positioning before grinding cycle initiation

• Integrated cyclone dust extraction with HEPA filtration (99.97% efficiency at 0.3 microns)
• Wet grinding option available for reducing airborne melamine particulates
• Closed-loop coolant system for wet polishing applications extending abrasive life

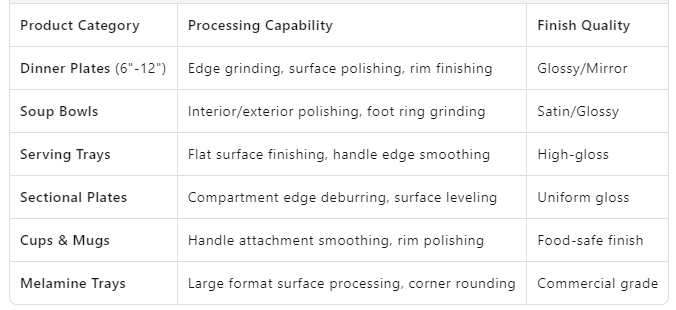

This automatic grinding machine processes complete melamine dinnerware collections:

• Pure melamine-formaldehyde (MF) resin products
• Melamine-urea compounds
• Bamboo fiber reinforced melamine composites
• Custom colored and decorated melamine ware

• In-line surface roughness measurement using laser profilometry
• Automatic rejection system for defective products
• Statistical process control (SPC) data logging for quality traceability

• Fixed grinding head with manual height adjustment
• Pneumatic product clamping fixtures
• Basic dust collection system
• Manual loading/unloading operation

• CNC-controlled multi-axis grinding heads
• Quick-change fixture systems for product changeover (under 15 minutes)
• Robotic loading/unloading integration
• Centralized dust collection with automatic filter cleaning

• AI-powered surface defect detection and adaptive grinding
• IoT connectivity for predictive maintenance and remote monitoring
• Automatic abrasive belt wear compensation
• Integration with MES/ERP production management systems

• CE Certification - Machinery Directive 2006/42/EC compliance
• ISO 9001:2015 - Quality management system certification
• ISO 14001:2015 - Environmental management standards
• Food Contact Compliance - EU 10/2011 and FDA 21 CFR standards for surface finish
• Safety Standards - EN ISO 12100 (machine safety), EN 60204-1 (electrical safety)

• Foundation: Reinforced concrete floor, vibration-isolated mounting recommended
• Power Supply: 380V/50Hz/3-phase (other voltages available), 15-50 kVA depending on model
• Compressed Air: 0.6-0.8 MPa, oil-free, dry air supply
• Exhaust System: 2000-5000 m³/h dust extraction capacity
• Ambient Conditions: Temperature 10-40°C, humidity <80% RH

• Machine footprint plus 1.5m clearance on all sides for maintenance
• Additional space for material infeed and outfeed conveyors
• Dedicated area for abrasive storage and changeover

• Installation & Commissioning: 5-7 days on-site setup with production trials
• Operator Training: 3-day intensive program covering operation, maintenance, and troubleshooting
• Process Optimization: Assistance with abrasive selection and grinding parameter development
• Technical Documentation: Complete manuals, electrical schematics, and spare parts catalogs

• 24-month warranty on mechanical and electrical components
• Lifetime technical support via phone, email, and video consultation
• Spare parts availability: 95% of parts shipped within 48 hours from regional warehouses
• Preventive maintenance programs with scheduled inspection visits
