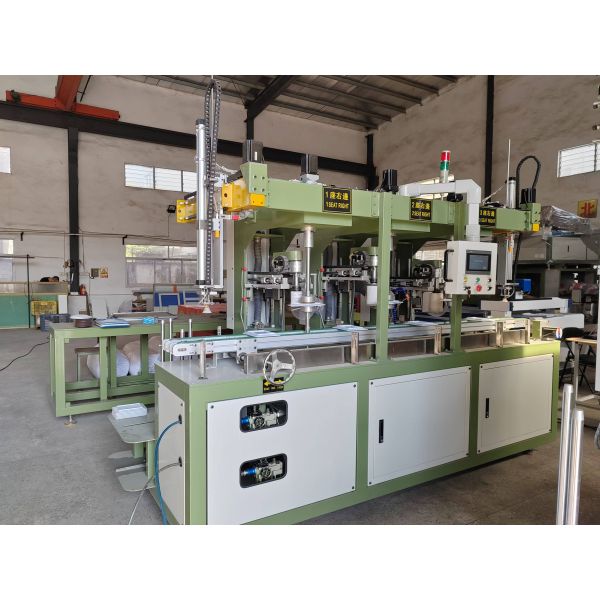

3 Head Full Automatic Grinding Machine for High Speed Melamine Dinnerware Polishing
3 Head Full Automatic Grinding Machine for High Speed Melamine Dinnerware Polishing
3 Head Full Automatic Grinding Machine for High Speed Melamine Dinnerware Polishing
3 Head Full Automatic Grinding Machine for High Speed Melamine Dinnerware Polishing
Specifications
Brand Name :
DONGXIN
Place of Origin :
CHINA
MOQ :
1
Delivery Time :
30-40
Total Power :
2.0 KW
Voltage :
220V/380V/415V (50Hz/60Hz)
Working Pressure :
0.5-0.8 MPa
Machine Weight :
2000 KGS
Dimensions :
3610×1500×2030mm
Production Speed (Round Products) :
600-840 pieces per hour
Description
New Design 3 Head Full Automatic Grinding Machine For Melamine Dinnerware Polishing
Product Overview

Revolutionize your melamine tableware production with our advanced 3-head full automatic grinding machine. This state-of-the-art polishing system delivers superior surface finishing for melamine dinnerware with unprecedented speed, precision, and efficiency.

3 Head Full Automatic Grinding Machine for High Speed Melamine Dinnerware Polishing
Key Features & Benefits

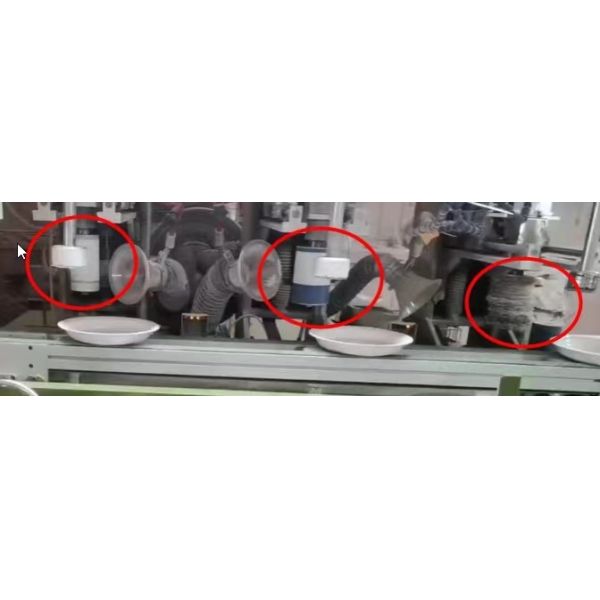

  • Advanced 3-Head System: Three independently controlled grinding heads for maximum efficiency with continuous operation and automatic workpiece positioning
  • Full Automation Capability: Robotic handling system reduces labor requirements with smart product recognition and 24/7 production capability
  • Superior Polishing Quality: Uniform polishing across all product surfaces with precise pressure control and multi-stage processing
Technical Specifications
Model HA3MB-100-600 (3-Head Automatic)
Voltage 220V/380V/415V (50Hz/60Hz)
Total Power 2.0 KW
Working Pressure 0.5-0.8 MPa
Machine Weight 2000 KGS
Dimensions 3610×1500×2030mm
Production Speed (Round Products) 600-840 pieces per hour
Production Speed (Non-round Products) 400-600 pieces per hour
Product Size Range 150-600mm diameter
Processing Precision ±0.1mm tolerance
Surface Roughness Ra ≤0.4μm
Product Applications
  • Melamine Dinner Plates: Edge grinding and surface polishing
  • Melamine Bowls: Rim smoothing and base finishing
  • Melamine Trays: Complete surface refinement
  • Serving Dishes: Professional-grade polishing
  • Custom Shapes: Square, rectangular, oval, and irregular forms
3 Head Full Automatic Grinding Machine for High Speed Melamine Dinnerware Polishing

Compatible Materials: Melamine formaldehyde resin products, urea-formaldehyde tableware, bamboo fiber composite dinnerware, and other thermoset plastic tableware.

Advanced Features
  • Intelligent Operation System: Shape recognition technology, parameter memory for 50 products, fault diagnosis, and production counting
  • Precision Grinding Technology: Adjustable grinding heads, variable speed control (0-2800 RPM), integrated cooling system, and built-in dust collection
  • Quality Control Integration: Vision inspection option, automatic reject system, statistical reporting, and complete production history tracking
Technical Advantages
  • Efficiency Optimization: One operator can manage 3-4 machines simultaneously with 30% lower power consumption and quick-change maintenance
  • Quality Assurance: Consistent results eliminating human error, repeatable precision, surface integrity protection, and gentle edge handling
Production Capacity
Small Plates (6-8 inch) 800-900 pieces per hour
Large Plates (10-12 inch) 600-700 pieces per hour
Bowls and Specialty Items 400-500 pieces per hour
Mixed Production Average 650 pieces per hour
Daily Production (8-hour shift) 5,000-7,000 pieces
Double Shift 10,000-14,000 pieces
Triple Shift 15,000-21,000 pieces
Installation & Setup
Floor Space 4m × 2m minimum area
Power Supply 3-phase, 380V, 15KVA capacity
Compressed Air 0.6-0.8 MPa, 200L/min
Environmental Temperature 15-35°C, Humidity <70%
Installation Time 1-2 days with trained technicians
Commissioning 4-6 hours including testing
Training 2-3 days operator training included
Production Ready Within 1 week of delivery
3 Head Full Automatic Grinding Machine for High Speed Melamine Dinnerware Polishing
Maintenance & Support
Warranty Period 12 months full warranty
Remote Support 24/7 online technical assistance
Spare Parts 10-year parts availability guarantee
Service Network Local service centers worldwide
Safety & Compliance
  • Safety Features: Multiple emergency stop buttons, full enclosure with interlocked access, noise level <75dB(A), CE Certification
  • Environmental Compliance: 99% efficient dust removal system, meets latest energy standards, below regulatory noise limits, minimal material waste design
Ordering Information
Lead Time 30-45 days after order confirmation
Installation On-site installation and training included
Shipping Weight 2300 KGS (including packaging)
Contact Us Today for detailed quotations, machine demonstrations, or to discuss your specific production requirements. Our technical team is ready to help you optimize your melamine tableware manufacturing process.
