5KW 7KW 10KW High Frequency Preheating Machine For Melamine Moulding Compound
5KW 7KW 10KW High Frequency Preheating Machine For Melamine Moulding Compound
5KW 7KW 10KW High Frequency Preheating Machine For Melamine Moulding Compound
5KW 7KW 10KW High Frequency Preheating Machine For Melamine Moulding Compound
Specifications
Brand Name :
Dongxin
Model Number :
PH001
Place Of Origin :
Jiangxi,China
Certification :
None
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
300 Ste per month
Delivery Time :
10-20 days
Packaging Details :
Wooden frame packaging
Specifcations :
Flat Electrode
Woden Crate Size :
WDH 960×1230×1850mm
Machinedimensions :
WDH 820×1150×1720mm
Power Input :
11KVA
Oscillation Frequency :
62MHZ Or 72MHZ
Preheatin Power :
110℃ Within 60 Seos
Electrode Spacing :
30-70m/m
Arrangement Of Hood :
Motor Type Automatic Opening Abd Closing
Description

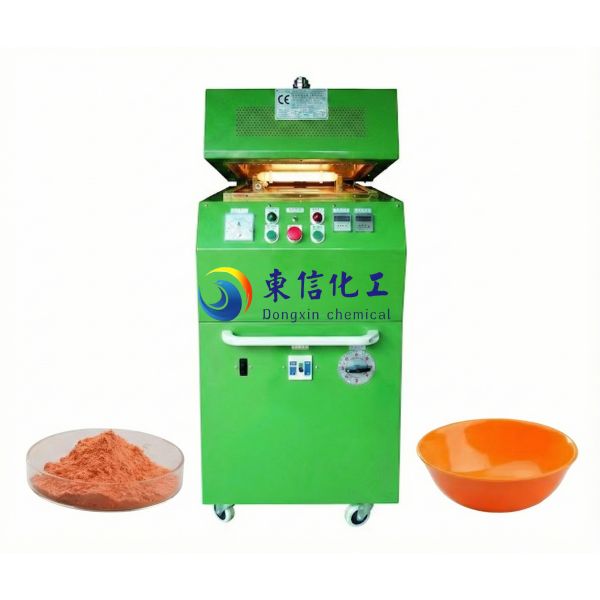

Power Input 11KVA Preheater Machine
High-frequency preheating machine specifically designed for heat melamine moulding compound applications.
Key Features
  • Motor type upper cover closing mechanism with large opening angle and precise locking position
  • Simple control panel for easy operation and minimal adjustment parameters
  • Multiple safety functions including high voltage grounding and cover locking confirmation
  • Double-guarantee device for main and secondary power switches
  • Cooling air pressure guarantee switch on generator vacuum tube
  • Abnormal startup prevention in oscillation circuit
  • Three-layer dust filter protection system
5KW 7KW 10KW High Frequency Preheating Machine For Melamine Moulding Compound
Technical Specifications
Output 5KW, 7KW, 10KW High Frequency Preheating
Oscillation Tube 7T85RB, 7T40B
Power Source 3φ220V, 380V, 415V
Preheating Power 110℃ within 60 seconds
Time Setting 999.9S
Oscillation Frequency 62MHZ, 72MHZ
Weight 320kg
Hood Arrangement Motor Type Automatic Opening and Closing
Machine Dimensions W820×D1150×H1720mm
Voltage Switching 3-stage
Applications
  • Bakelite preheating and electrical parts processing
  • Melamine molding compound preparation
  • Semiconductor IC and charger manufacturing
  • Electronic device forming processes
5KW 7KW 10KW High Frequency Preheating Machine For Melamine Moulding Compound
Support and Services
Our Melamine Preheating Machine is engineered to enhance efficiency and quality in melamine pressing processes. We provide comprehensive technical support including installation guidance, operational training, and troubleshooting assistance.
Our service team helps optimize machine settings for specific production requirements, ensuring maximum performance and durability. Regular maintenance services, spare parts, and upgrade options are available to maintain operational efficiency.
Packaging and Shipping
The machine is securely packaged in sturdy wooden crates with internal padding to protect against transit shocks. All detachable parts are individually wrapped and cushioned. We offer flexible shipping options including sea freight, air freight, and express delivery with complete export documentation and tracking information.
Frequently Asked Questions
What is the brand and model of the Melamine Preheating Machine?
Manufactured by Dongxin, model number PH001.
Where is the Dongxin Melamine Preheating Machine produced?
This machine is manufactured in Jiangxi, China.
What is the primary function of the Melamine Preheating Machine?
The primary function is to preheat melamine boards efficiently for manufacturing processes, improving adhesion and quality.
What materials can this machine handle?
Designed specifically for melamine boards, with potential suitability for similar laminated wood panels.
How does this machine improve production efficiency?
By providing uniform preheating of melamine boards, it reduces processing time, enhances bonding quality, and ensures consistent output.
