Stable Operation Safe Automatic Grinding Machine For Melamine Mold Surface Finishing
Stable Operation Safe Automatic Grinding Machine For Melamine Mold Surface Finishing
Specifications
Delivery Time :
10-20 Days
Avaliable Materails :
Metal,Brass and so on
Model Number :
PL003
Sand Belt Dimensions :
4000mmX4
Payment Terms :
L/C,T/T
Max Grinding Length :
300 mm
Certification :
CE
Function :
Edge Grinding & Polishing
Price :
Negotiable
Packaging Details :
Plastic Film Packaging
Power Supply :
Compliance With Local Standard
Supply Ability :
50 Sets Per Month
Applications :
Melamine Dinnerware
Brand Name :
Dongxin
Machine Power :
11KW
Place of Origin :
CHINA
MOQ :
1 Set
Total Power :
Total power
Description
Stable Operation Safe Automatic Grinding Machine For Melamine Mold Surface Finishing
Automatic Melamine Tableware Polishing & Edge Trimming Machine
High-Precision Edge Grinding & Deburring System with PLC Control

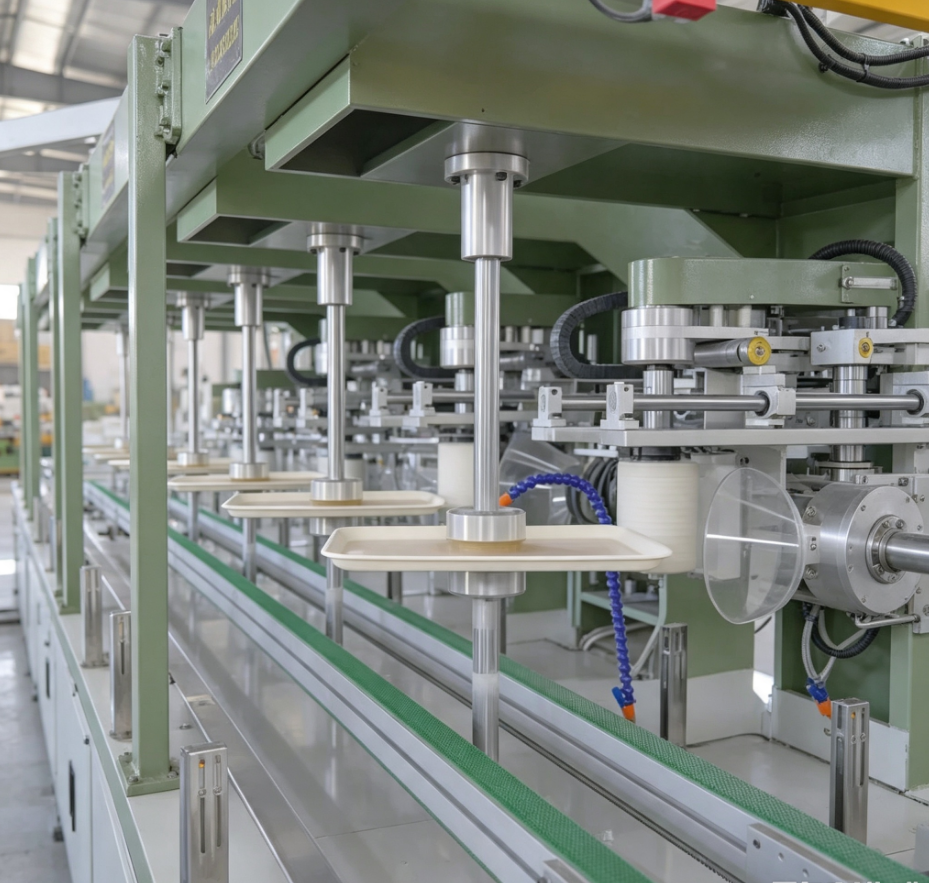

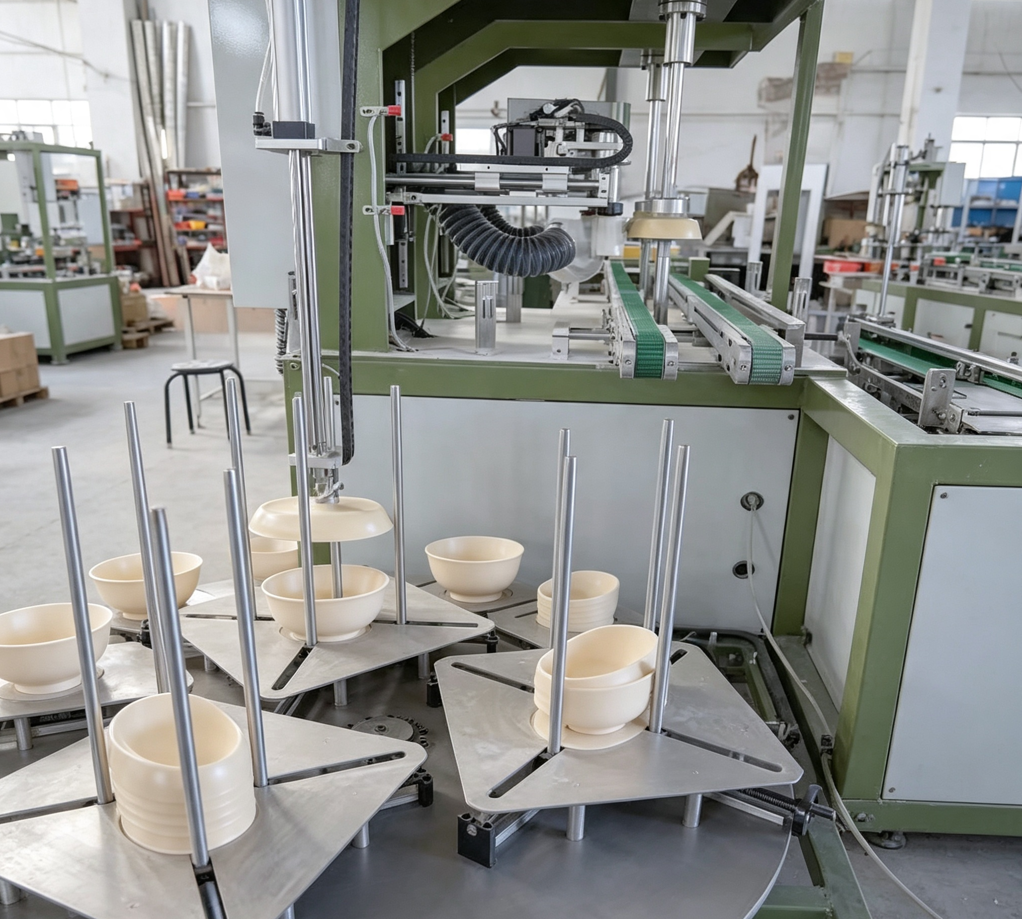

The Automatic Melamine Tableware Polishing & Edge Trimming Machine is engineered to deliver smooth, burr-free edges and a high-gloss finish on molded melamine dinnerware. Designed to replace manual labor, this automated sanding system processes plates, bowls, trays, and cups with unmatched consistency, safety, and efficiency.

Featuring an advanced PLC control system, adjustable grinding heads, and efficient dust extraction compatibility, our machine helps melamine tableware manufacturers drastically improve production throughput while maintaining flawless product quality.

Key Features & Advantages
  • Precision Edge Deburring: Smooths rough edges, flash lines, and parting seams automatically without changing the shape of the tableware.
  • PLC Automation & User-Friendly HMI: Easily adjust grinding speed, conveyor timing, and rotation pressure for different product sizes via intuitive touchscreen controls.
  • Multi-Station / Multi-Angle Grinding: Equipped with flexible sanding heads that conform to flat, curved, or irregular tableware shapes.
  • Integrated Dust Collection Ready: Designed to connect with industrial vacuum systems to ensure a clean, dust-free workplace and high safety standards.
  • High Output & Reduced Labor: Replaces 3-5 manual workers per shift while maintaining uniform finishing standards across all batches.
Stable Operation Safe Automatic Grinding Machine For Melamine Mold Surface Finishing
Technical Specifications
Parameter Specification / Value
Control System PLC + Touchscreen Display
Applicable Products Melamine Plates, Bowls, Trays, Cups, Spoons
Grinding Capacity 1,200 - 2,400 pcs/hour (Depending on product size)
Operation Mode Fully Automatic / Semi-Automatic
Power Supply 380V / 220V (3-Phase, Customized)
Air Supply Pressure 0.5 - 0.7 MPa
Dust Extraction Port Standard Industrial Flange Connection
Applications

Specifically built for post-processing and surface finishing in thermoset plastics production:

  • Melamine Dinnerware: Round/square plates, soup bowls, sauce dishes, and serving platters.
  • Children's & Hotel Trays: Complex curved edges and deep-dish rims.
  • Urea & Resin Molded Items: Handle deburring, edge smoothing, and high-gloss edge prep.
Stable Operation Safe Automatic Grinding Machine For Melamine Mold Surface Finishing
Why Choose Our Melamine Polishing Machine?
Consistent Quality & Zero Edge Damage
Traditional manual grinding often leads to over-sanding or uneven edges. Our flexible pressure system ensures uniform edge treatment without damaging the melamine surface finish.
  1. Heavy-Duty & Low Maintenance: Built with wear-resistant components and stable structural frames to handle 24/7 continuous industrial operation.
  2. Easy Mold & Tooling Changes: Quick-change sanding pads and adaptable fixtures minimize setup times between product batches.
  3. Turnkey Factory Integration: Works seamlessly alongside hydraulic press lines and automatic melamine pre-heating machines.

FAQ

Q1: What materials can this melamine polishing machine process?

A: It is designed for thermoset plastic products, mainly melamine tableware, urea formaldehyde molded goods and related resin tableware. It handles plates, bowls, trays, children tableware and hotel catering melamine products efficiently.

Q2: Can this polishing equipment finish curved edges and deep-rim melamine bowls?

A: Yes. The machine is engineered for complex curved edges and deep-dish rims, including children trays and hotel serving platters. It delivers smooth edge finishing without surface scratches.

Q3: Will the polishing machine cause scratches or damage to melamine product surfaces?

A: No. Equipped with a flexible pressure control system, it avoids over-sanding. It provides uniform edge deburring and smoothing while protecting the original high-gloss surface finish of melamine dinnerware.

Q4: How fast can we switch between different melamine product molds and fixtures?

A: The machine supports quick-change sanding pads and adjustable fixtures. Product batch changeover time is greatly shortened to improve overall factory production efficiency.

Q5: Can this polishing machine connect and work with existing melamine hydraulic press production lines?

A: Absolutely. It supports turnkey factory integration and operates seamlessly with melamine hydraulic molding presses and automatic pre-heating machines to form a complete production workflow.
