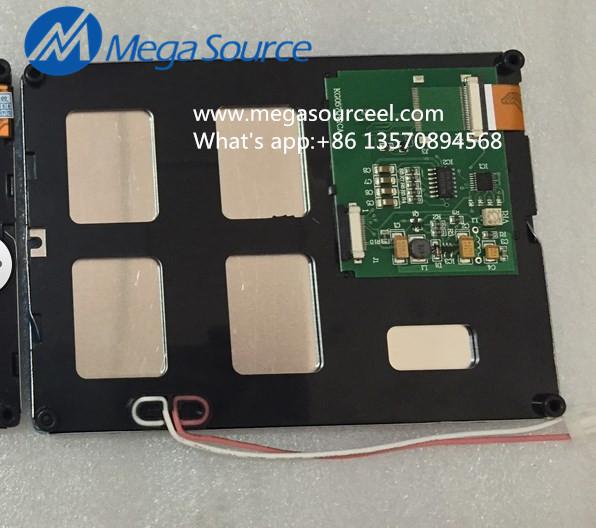

AMPIRE 5.7inch AG-320240A4FIQW-07H(N)(R) LCD Panel
AMPIRE 5.7inch AG-320240A4FIQW-07H(N)(R) LCD Panel
Specifications
Place of Origin :
Japan
Brand Name :
AMPIRE
Certification :
RoHS Compliant
Model Number :
AG-320240A4FIQW-07H(N)(R)
MOQ :
1 PCS
Price :
Pls Contact sales team
Packaging Details :
MODULE
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
1000
Panel Model :
AG-320240A4FIQW-07H(N)(R)
Panel Brand :
AMPIRE
Descrition :
FSTN-LCD ,5.7 inch, 320×240
Panel Type :
FSTN-LCD
Description

AMPIRE 5.7inch AG-320240A4FIQW-07H(N)(R) LCD Panel

Specification for AG-320240A4FIQW-07H(N)(R) :

Panel Model

AG-320240A4FIQW-07H(N)(R)

Panel Brand

AMPIRE

Descrition

FSTN-LCD ,5.7 inch, 320×240

Panel Type

FSTN-LCD

Display Mode

STN, Transflective

Active Area

115.185×86.385 mm

Outline

167×104.7×14.5 mm

Surface

Contrast Ratio

7:1 (Typ.)(Transmissive)

Display Colors

Monochrome

Response Time

200/200 (Typ.)(Tr/Td)

Viewing Angle

30/30/35/30 (Typ.)(CR≥10) (L/R/U/D)

Frequency

70Hz

Lamp Type

1S6P WLED Without Driver

Signal Interface

Parallel Data (1ch, 4-bit) , 24 pins

Input Voltage

5.0V (Typ.)
