NEW TENMA 7 TM070RDH10 Custom Lcd Display High Brightness 60 Days Warranty
NEW TENMA 7 TM070RDH10 Custom Lcd Display High Brightness 60 Days Warranty
NEW TENMA 7 TM070RDH10 Custom Lcd Display High Brightness 60 Days Warranty
NEW TENMA 7 TM070RDH10 Custom Lcd Display High Brightness 60 Days Warranty
Specifications
Brand Name :
TIANMA
Model Number :
TM070RDH10
Place of Origin :
KOREA
MOQ :
1
Price :
Pls contact email：sales1@megasourceel.com
Payment Terms :
T/T, Western Union，PAYPAL,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
STOCK
Packaging Details :
STANDARD PACKING
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
7.0 inch
Resolution :
800(RGB)×480 , WVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
154.08×85.92 mm
Outline :
164.9×100×6 mm
Surface :
Antiglare
Brightness :
350 cd/m² (Typ.)
Contrast Ratio :
500:1 (Typ.)
Display Colors :
262K/16.7M (6-bit / 6-bit + Dithering) , CIE1931 50%
Response Time :
25 (Typ.)(Tr+Td)
Viewing Angle :
70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :
3S8P WLED ， Without Driver
Signal Interface :
Parallel RGB (1 ch, 8-bit) , 50 pins
Input Voltage :
3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Operating Temperature :
-20 ~ 70 °C
Storage Tempera-40 ~ 80 °Cture :
-30 ~ 80 °C
ROHS :
Y
Description

Model Number:TM070RDH10

NEW TENMA 7

NEW TENMA 7 "TM070RDH10 LCD Display 60 days warranty

1,TIANMA TM070RDH10 Mechanical Features

Panel Size : 7.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 134 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0642×0.1790 mm (H×V)
Pixel Pitch : 0.1926×0.1790 mm (H×V)
Weight : TBD
Surface : Antiglare
Active Area : 154.08×85.92 mm (H×V)
Bezel Area : 157.08×89.39 mm (H×V)
Outline Dimension : 164.9×100 mm (H×V)
Outline Depth : 5.7±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

2,TIANMA TM070RDH10 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.7M (6-bit / 6-bit + Dithering)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.315; Wy:0.330
White Variation : 1.33 (Typ.)(9 points)

3,TIANMA TM070RDH10 Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : Yes (U/D, L/R)
Time Controller (T-CON) : Embedded T-CON

4,TIANMA TM070RDH10 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 3S8P
Lamp Shape : Array
Lamp Life Time : 20K(Typ.) (Hours)
Lamp Voltage : 9.6/10.8V (Typ./Max.)
Lamp Current : 160/200mA (Typ./Max.)
Lamps Power Consumption : 1.54/2.16W (Typ./Max.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No

5,TIANMA TM070RDH10 Signal Interface

Signal Category : TTL
Signal Class : Parallel RGB (1 ch, 8-bit)
Input Voltage for Panel : 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Input Current for Panel : 10/55/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL)
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Type : FPC
Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
0.5 mm 50 pins 1 pcs DRGB-50P1C8B-115A

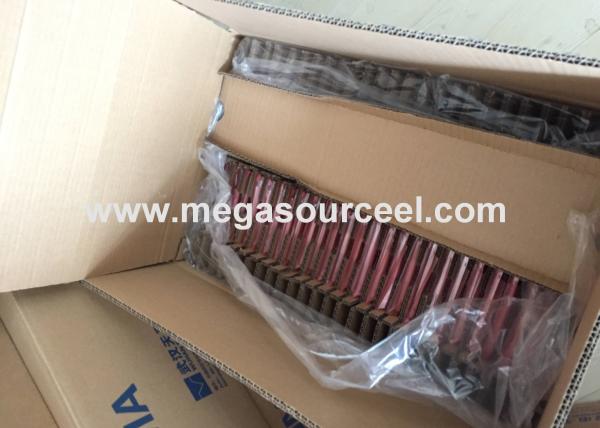

6,TIANMA TM070RDH10 Packing Form

Amount per Box : 50 pcs
Box Size : 530×350×250 mm (L×W×H)
Box Gross Weight : TBD

Details Picture for NEW TENMA 7 "TM070RDH10 LCD Display 60 days warranty

NEW TENMA 7
