Specifications
Brand Name :
NEC
Model Number :
NL10276BC30-04D
Place of Origin :
KOREA
MOQ :
1
Price :
Pls contact email：sales1@megasourceel.com
Payment Terms :
T/T, Western Union，PAYPAL,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
STOCK
Packaging Details :
STANDARD PACKING
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
15.0 inch
Resolution :
1024(RGB)×768 , XGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
304.128×228.096 mm
Outline :
350×265×21.5 mm
Surface :
Anti reflection
Brightness :
350 cd/m² (Typ.)
Contrast Ratio :
200:1 (Typ.)
Display Colors :
262K (6-bit) , CIE1931 40%
Response Time :
15/40 (Typ.)(Tr/Td
Viewing Angle :
65/65/45/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :
4 pcs CCFL , Without Driver
Signal Interface :
LVDS (1 ch, 6-bit) , 20 pins
Input Voltage :
5.0V (Typ.)
Operating Temperature :
-10 ~5 0°C
Storage Tempera-40 ~ 80 °Cture :
-20 ~ 60 °C
ROHS :
N
Description

Model Number:NL10276BC30-04D

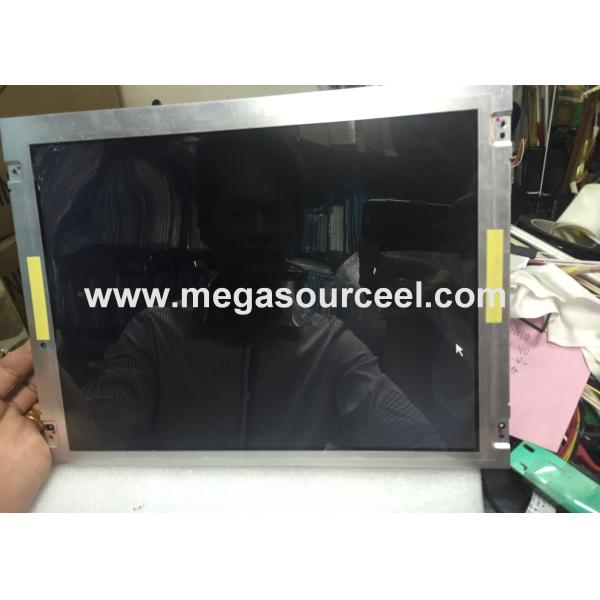

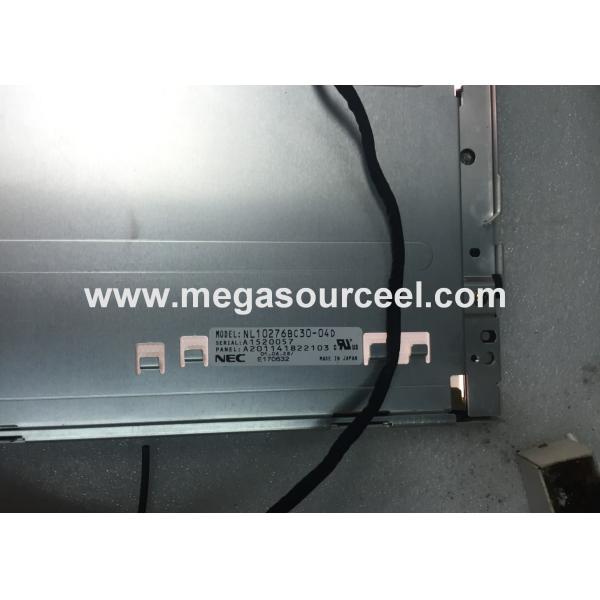

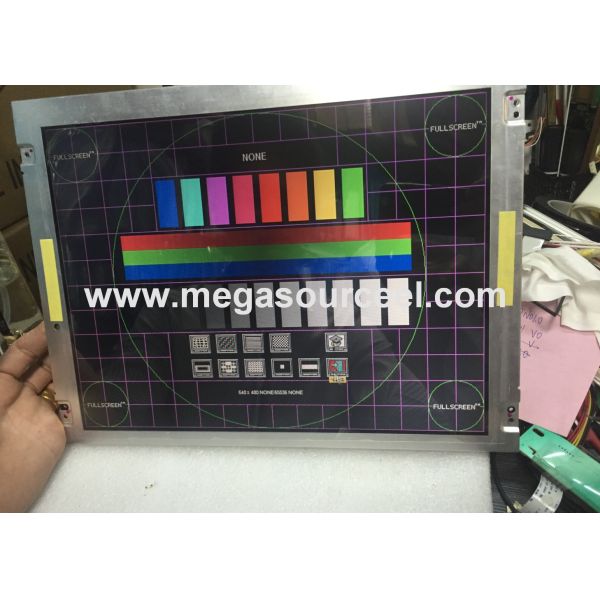

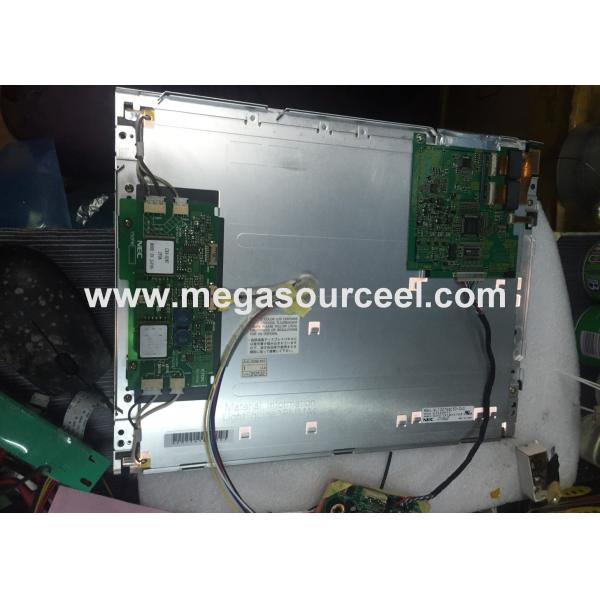

NL10276BC30-04D 15" LCD Display Panel Tested and Working

1,NEC NL10276BC30-04D Mechanical Features

Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.56/1.61Kgs (Typ./Max.)
Surface : Antireflection
Active Area : 304.128×228.096 mm (H×V)
Bezel Area : 308.8×232.7 mm (H×V)
Outline Dimension : 350×265 mm (H×V)
Outline Depth : 20.5/21.5 (Typ./Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.5)
Landscape or Portrait : Landscape type
Touch Panel : Without

2,NEC NL10276BC30-04D Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 200 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 40% NTSC (CIE1931)
Response Time : 15/40 (Typ.)(Tr/Td)
Viewing Angle : 65/65/45/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White Variation : 1.30 (Max.)(5 points)

3,NEC NL10276BC30-04D Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption : 17W (Typ.)

4,NEC NL10276BC30-04D Backlight System

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 4 pcs
Lamp Shape : Straight
Lamp Replaceable : Replaceable
Lamp RFU Model : 150LHS12
Lamp Voltage : 680V (Typ.)
Lamp Current : 3.0/6.0/6.5mA (Min./Typ./Max.)
Lamp Operating Frequency : 53/67KHz (Min./Max.)
Lamp Startup Voltage : 1100/1650V (Min.)(Ta=+25/0℃)
Interface Type : Connector
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
JST BHR-03VS-1 4.0 mm 3 pins 1 pcs BLL-3PINS-LNH
JST BHR-02VS-1 4.0 mm 2 pins 1 pcs BLL-2PINS-NH
Lamp Driver Board : No

5,NEC NL10276BC30-04D Signal Interface

Signal Category : LVDS
Signal Class : LVDS (1 ch, 6-bit)
Input Voltage for Panel : 5.0V (Typ.)
Input Current for Panel : 300mA (Typ.)
Interface Type : Connector
Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
JAE FI-SE20P-HF 1.25 mm 20 pins 1 pcs LVDS-20P1C6B-230A

NL10276BC30-04D 15" LCD Display Panel Tested and Working

NL10276BC30-04D 15NL10276BC30-04D 15NL10276BC30-04D 15NL10276BC30-04D 15
