Specifications
Brand Name :
OPTREX
Model Number :
T-55466D084J-LW-A-AAN
Place of Origin :
KOREA
MOQ :
1
Price :
Pls contact email：sales1@megasourceel.com
Payment Terms :
T/T, Western Union，PAYPAL,BANK TRANSFER
Supply Ability :
36
Delivery Time :
STOCK
Packaging Details :
STANDARD PACKING
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
8.4 inch
Resolution :
800(RGB)×600 , SVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
170.4×127.8 mm
Outline :
199.5×149 mm
Surface :
Antiglare, Hard coating (3H)
Brightness :
600 cd/m² (Typ.)
Contrast Ratio :
600:1 (Typ.)
Display Colors :
262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40%
Response Time :
4/12 (Typ.)(Tr/Td)
Viewing Angle :
80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :
2 strings WLED，Without Driver
Signal Interface :
LVDS(1 ch, 6/8-bit) , 20 pins
Input Voltage :
3.3V (Typ.)
Operating Temperature :
-30 ~ 80 °C
Storage Temperature :
-30 ~ 80 °C
ROHS :
Y
Description

Model Number: T-55466D084J-LW-A-AAN

800x600 8.4 Inch Lcd Touch Screen OPTREX T-55466D084J-LW-A-AAN Long Lifespan

Item Specifics for LCD display OPTREX T-55466D084J-LW-A-AAN 800x600 8.4 inch New, A Grade

1,OPTREX T-55466D084J-LW-A-AAN Mechanical Features

Panel Size : 8.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 119 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.071×0.213 mm (H×V)
Pixel Pitch : 0.213×0.213 mm (H×V)
Weight : 365g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 170.4×127.8 mm (H×V)
Bezel Area : 174.9×132.2 mm (H×V)
Outline Dimension : 199.5×149 mm (H×V)
Outline Depth : 11.5 (Typ.) mm
Holes & Brackets : Face mounting holes (4-Φ3.4), Side mounting holes (4-M2)
Landscape or Portrait : Landscape type
Touch Panel : Without

2,OPTREX T-55466D084J-LW-A-AAN Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 600 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut : 40% NTSC (CIE1931)
Response Time : 4/12 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.30 (Max.)(5 points)

3,OPTREX T-55466D084J-LW-A-AAN Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : Yes (180°)

4,OPTREX T-55466D084J-LW-A-AAN Backlight System

Lamp Position : Edge light type (Bottom side)
Lamp Type : WLED
Lamp Amount : 2 strings
Lamp Shape : 2 strings
Lamp Life Time : 60K(Min.) (Hours)
Lamp Replaceable : Replaceable
Lamp Voltage : 30/36.5V (Typ./Max.)
Lamp Current : 60/70mA (Typ./Max.)
Interface Type : Connector
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
JST SM06B-SHLS-TF 1.0 mm 6 pins 1 pcs BLE-6PINS-NNCAAC
Lamp Driver Board : No

5,OPTREX T-55466D084J-LW-A-AAN Signal Interface

Signal Category : LVDS
Signal Class : LVDS (1 ch, 6/8-bit)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 350/540mA (Typ./Max.)
Interface Type : Connector
Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
I-PEX 20186-020E-11F 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-010H

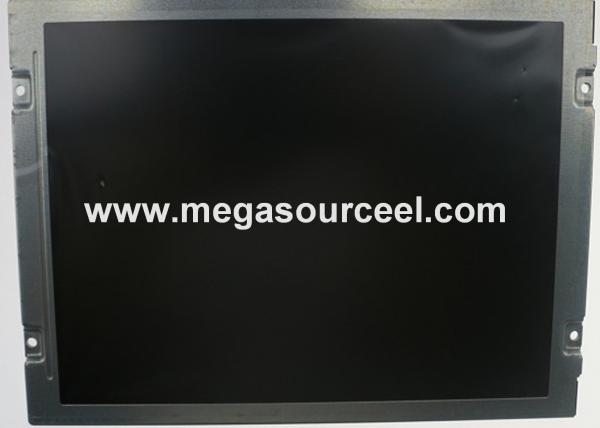

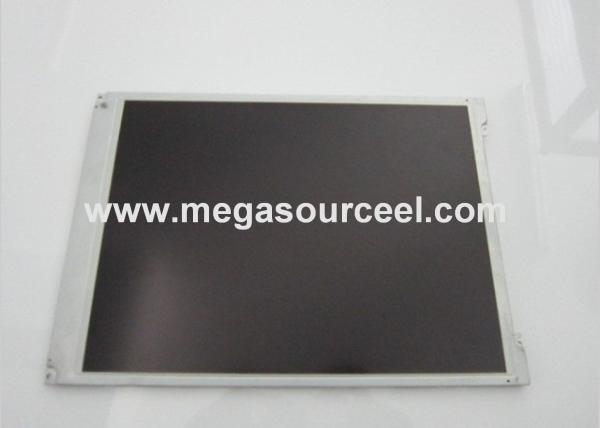

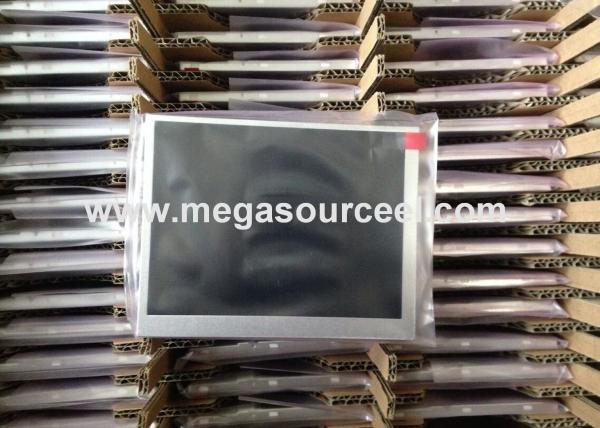

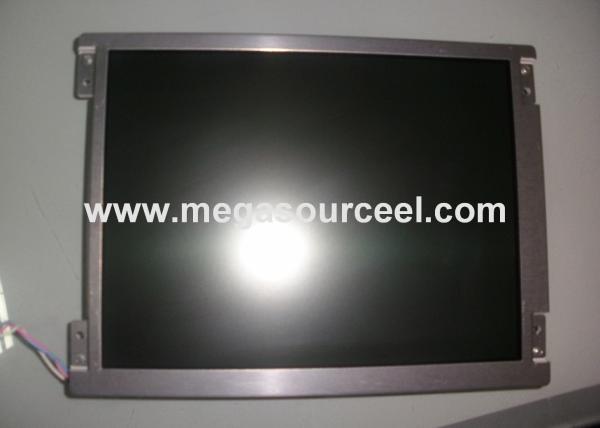

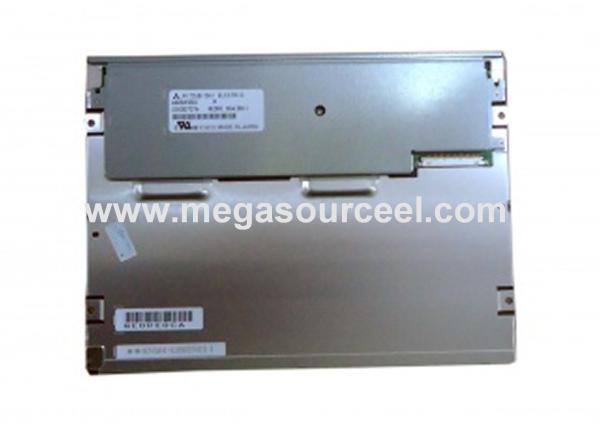

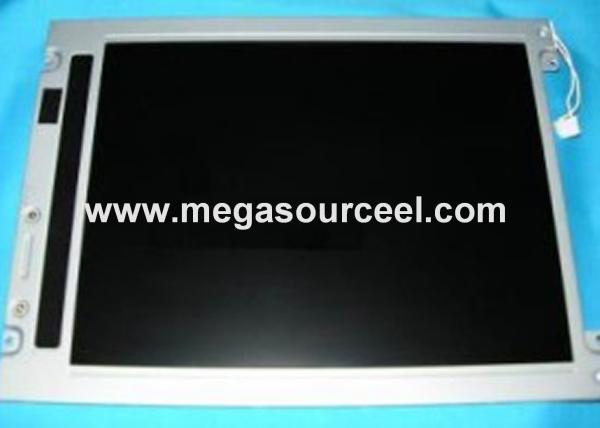

Details Picture for LCD display OPTREX T-55466D084J-LW-A-AAN 800x600 8.4 inch New, A Grade

800x600 8.4 Inch Lcd Touch Screen OPTREX T-55466D084J-LW-A-AAN Long Lifespan

800x600 8.4 Inch Lcd Touch Screen OPTREX T-55466D084J-LW-A-AAN Long Lifespan

800x600 8.4 Inch Lcd Touch Screen OPTREX T-55466D084J-LW-A-AAN Long Lifespan
