LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New
LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New
LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New
LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New
LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New
LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New
LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New
LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New
Specifications
Brand Name :
JDI
Model Number :
TX54D11VC0CAB
Place of Origin :
KOREA
MOQ :
1
Price :
Pls contact email：sales1@megasourceel.com
Payment Terms :
T/T, Western Union，PAYPAL,BANK TRANSFER
Supply Ability :
200
Delivery Time :
STOCK
Packaging Details :
STANDARD PACKING
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
21.3 inch
Resolution :
1600(RGB)×1200 , UXGA
Display Mode :
S-IPS, Normally Black, Transmissive
Active Area :
432×324 mm
Outline :
460.6×362 mm
Surface :
Pls contact us for more details
Brightness :
250 cd/m² (Typ.)
Contrast Ratio :
400:1 (Typ.)
Display Colors :
16.7M (8-bit)
Response Time :
Pls contact us for more details
Viewing Angle :
Pls contact us for more details
Lamp Type :
6 pcs CCFL
Signal Interface :
LVDS (2 ch, 8-bit)
Input Voltage :
12.0V (Typ.)
ROHS :
N
Description

​

Item Specifics for LCD display JDI TX54D11VC0CAB 1600x1200, UXGA 21.3 INCH New , A Grade

1,JDI TX54D11VC0CAB Mechanical Features

Panel Size : 21.3 inch
Dot Resolution : 1600(RGB)×1200 (UXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 94 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.090×0.270 mm (H×V)
Pixel Pitch : 0.270×0.270 mm (H×V)
Weight : 3.50Kgs
Active Area : 432×324 mm (H×V)
Outline Dimension : 460.6×362 mm (H×V)
Outline Depth : 25.0 (Typ.) mm
Landscape or Portrait : Landscape type

2,JDI TX54D11VC0CAB Optical Features

Display Mode : S-IPS, Normally Black, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Viewing Direction : Symmetry

3,JDI TX54D11VC0CAB Electronics Feature

Total Power Consumption : 40W (Typ.)

4,JDI TX54D11VC0CAB Backlight System

Lamp Position : Edge light type
Lamp Type : CCFL
Lamp Amount : 6 pcs
Lamp Shape : Straight

5,JDI TX54D11VC0CAB Signal Interface

Signal Category : LVDS
Signal Class : LVDS (2 ch, 8-bit)
Input Voltage for Panel : 12.0V (Typ.)

Model Number: TX54D11VC0CAB

LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New

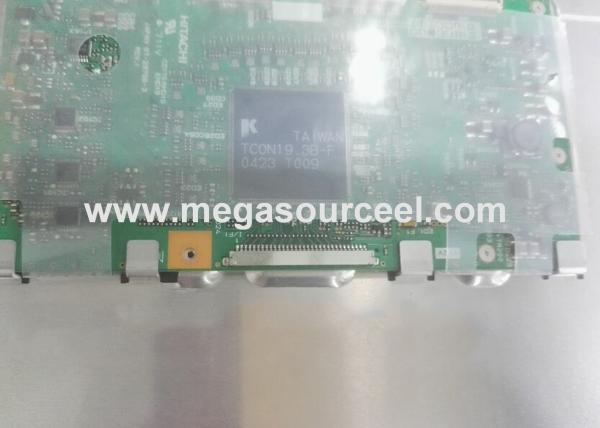

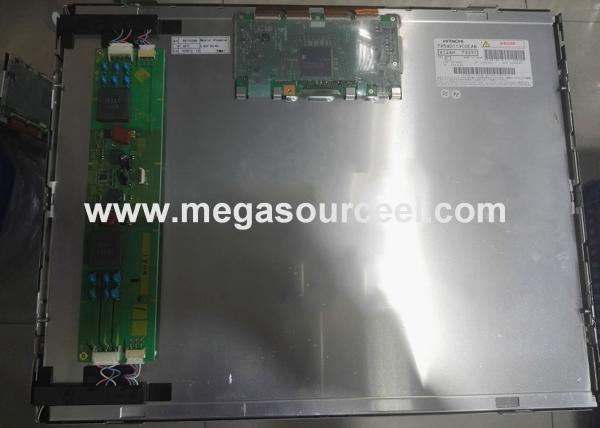

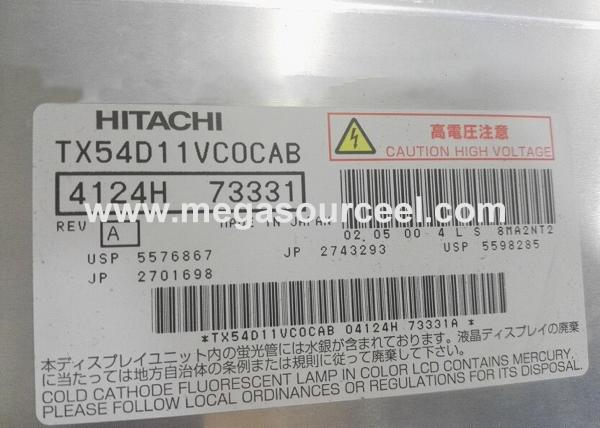

Details Picture for LCD display JDI TX54D11VC0CAB 1600x1200, UXGA 21.3 INCH New , A Grade

LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New

LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New

LVDS Signal Interface LCD Panel Types JDI TX54D11VC0CAB 1600x1200 UXGA 21.3 INCH New
