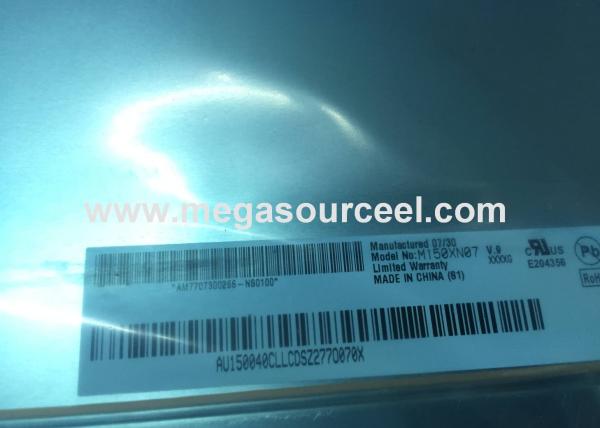

15 LCD Panel Types , XGA Color TFT LCD Resistive Touch Panel AU OPTRONICS M150XN07 V9
15 LCD Panel Types , XGA Color TFT LCD Resistive Touch Panel AU OPTRONICS M150XN07 V9
Specifications
Brand Name :
AUO
Model Number :
M150XN07 V9
Place of Origin :
KOREA
MOQ :
1
Price :
Pls contact email：sales1@megasourceel.com
Payment Terms :
T/T, Western Union，PAYPAL,BANK TRANSFER
Supply Ability :
1000
Delivery Time :
STOCK
Packaging Details :
STANDARD PACKING
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
15.0 inch
Resolution :
1024(RGB)×768 , XGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
304.128×228.096 mm
Outline :
326.5×253.5×12 mm
Surface :
Antiglare, Hard coating (3H)
Brightness :
250 cd/m² (Typ.)
Contrast Ratio :
700:1 (Typ.)
Display Colors :
16.2M (6-bit + FRC)
Response Time :
6/2 (Typ.)(Tr/Td)
Viewing Angle :
70/70/65/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :
2 pcs CCFL ， Without Driver
Signal Interface :
LVDS (1 ch, 8-bit) , 20 pins
Input Voltage :
3.3V (Typ.)
Operating Temperature :
0 ~ 50 °C
Storage Tempera-40 ~ 80 °Cture :
-20 ~ 60 °C
ROHS :
Y
Description

AU OPTRONICS M150XN07 V9 15" XGA Color TFT LCD w/5wire Resistive Touch Panel

1,AUO M150XN07 V9 Mechanical Features

Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.01Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 304.128×228.096 mm (H×V)
Bezel Area : 307.4×231.3 mm (H×V)
Outline Dimension : 326.5×253.5 mm (H×V)
Outline Depth : 9.2/12.0 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

2,AUO M150XN07 V9 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Response Time : 6/2 (Typ.)(Tr/Td)
Viewing Angle : 70/70/65/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.25/1.33 (Typ./Max.)(5 points)

3,AUO M150XN07 V9 Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption : 12.5W (Typ.)

4,AUO M150XN07 V9 Backlight System

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 2 pcs
Lamp Shape : Straight
Lamp Life Time : 35K(Typ.) (Hours)
Lamp Voltage : 562/600/696V (Min./Typ./Max.)
Lamp Current : 2.5/8.0/8.5mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/55/80KHz (Min./Typ./Max.)
Lamp Startup Voltage : 1100/1450V (Min.)(Ta=+25/0℃)
Lamps Power Consumption : 10/11W (Typ./Max.)
Interface Type : Connector
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
CviLux CP0502SL090 3.5 mm 2 pins 2 pcs BLL-2PINS-HL
Lamp Driver Board : No

5,AUO M150XN07 V9 Signal Interface

Signal Category : LVDS
Signal Class : LVDS (1 ch, 8-bit)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 0.75/0.85A (Typ./Max.)
Panel Power Consumption : 2.5/3.0W (Typ./Max.)
Interface Type : Connector
Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
STM MSB240420E 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-040A

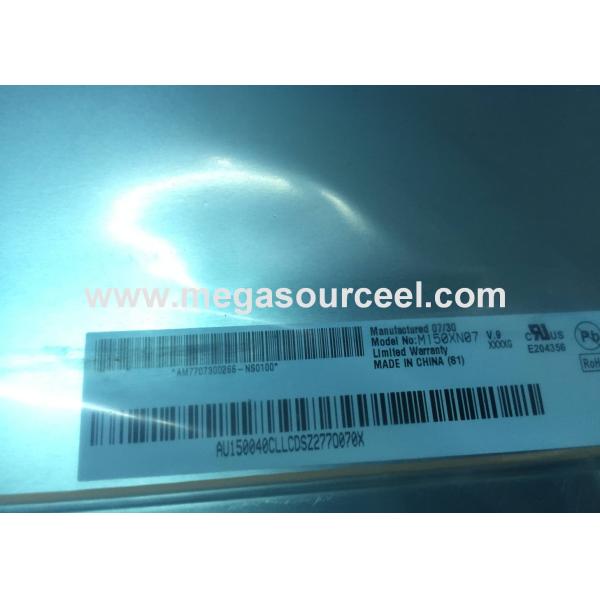

Details Picture for AU OPTRONICS M150XN07 V9 15" XGA Color TFT LCD w/5wire Resistive Touch Panel
