LG LM190E0A-SLA1 Screen 19.0 1280x1024 LM190E0A-SLA1 Display
LG LM190E0A-SLA1 Screen 19.0 1280x1024 LM190E0A-SLA1 Display
Specifications
Place of Origin :
Japan
Brand Name :
LG
Certification :
Lead free / RoHS Compliant
Model Number :
LM190E0A-SLA1
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
2000
Panel Model :
LM190E0A-SLA1
Brand :
LG
Size :
19.0 inch
Resolution :
1280×1024
Description

LG LM190E0A-SLA1 Screen 19.0" 1280x1024 LM190E0A-SLA1 Display

1,LM190E0A-SLA1 Basic Information

Panel Model LM190E0A-SLA1
Panel Brand LG Display
Descrition a-Si TFT-LCD ,19.0 inch, 1280×1024
Panel Type a-Si TFT-LCD
Model Alias LM190E0A (SL)(A1)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

2,LM190E0A-SLA1 Mechanical Features

Dot Resolution 1280(RGB)×1024 (SXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 86 PPI
Aspect Ratio 5:4 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.098×0.294 mm (H×V)
Pixel Pitch 0.294×0.294 mm (H×V)
Weight TBD
Surface Antiglare, Hard coating (3H)
Active Area 376.32×301.056 mm (H×V)
Bezel Area 378.8×303.0 mm (H×V)
Outline Dimension 396×324 mm (H×V)
Outline Depth 8.7/10.4 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

3, LM190E0A-SLA1 Optical Features

Display Mode AH-IPS, Normally Black, Transmissive
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 72% NTSC (CIE1931)
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.33 (Max.)(9 points)
Sunlight Readable N

4, LM190E0A-SLA1 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 11.45W (Typ.)

5, LM190E0A-SLA1 Backlight System

Lamp Position Edge light type (Right side)
Lamp Type WLED
Lamp Amount 15S2P
Lamp Shape 2 strings
Lamp Life Time 30K(Min.) (Hours)
Lamp Voltage 45.8±0.3V
Lamp Current 100/105mA (Typ./Max.)
Lamps Power Consumption 9.2/9.8W (Typ./Max.)
Interface Type Connector
Interface Position
Lamp Driver Board

No

6,LM190E0A-SLA1 Signal Interface

Signal Category LVDS
Signal Class LVDS (2 ch, 8-bit)
Input Voltage for Panel 5.0V (Typ.)
Input Current for Panel 450/563mA (Typ./Max.)
Panel Power Consumption 2.25/2.81W (Typ./Max.)
Interface Type Connector
Interface Position
Signal Interface UJU - IS100-L30O-C23, Pitch:1.0 mm, Pin:30 pins

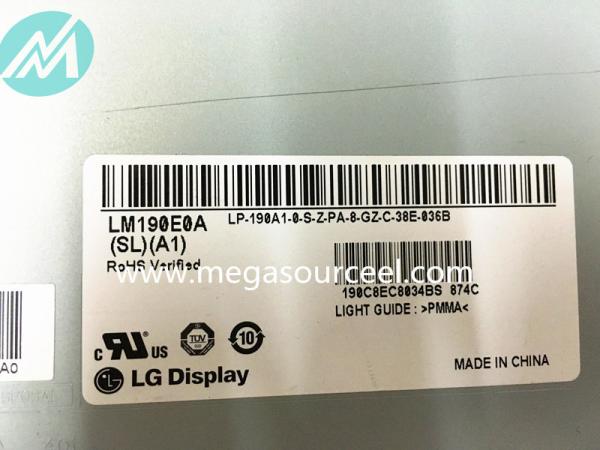

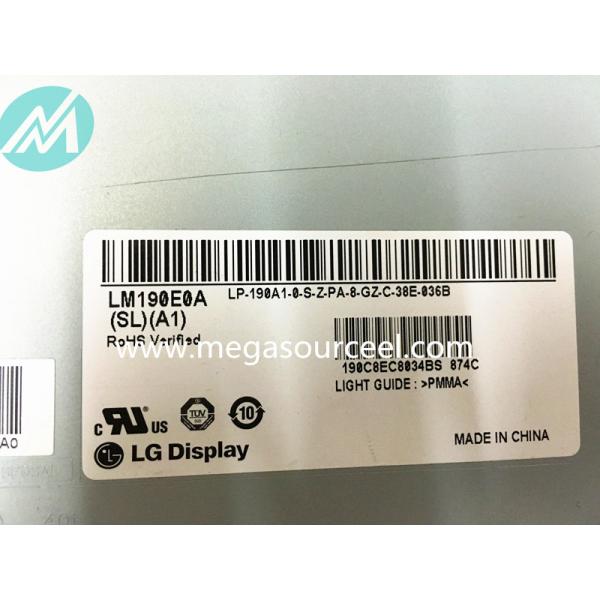

Detail picture for LG LM190E0A-SLA1 Screen 19.0" 1280x1024 LM190E0A-SLA1 Display

LG LM190E0A-SLA1 Screen 19.0
