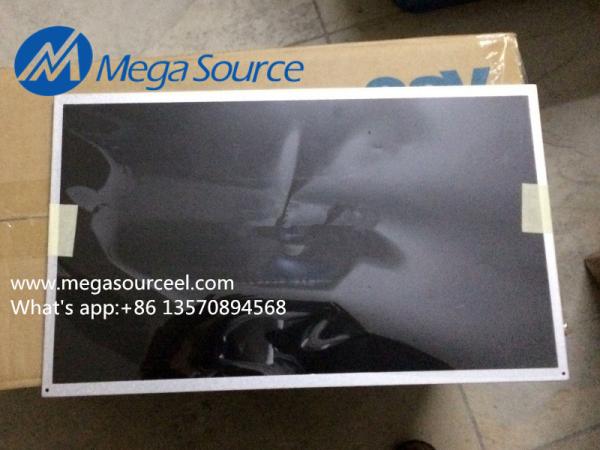

BOE 18.5inch HM185WX3-200 LCD Panel
BOE 18.5inch HM185WX3-200 LCD Panel
Specifications
Place of Origin :
Japan
Brand Name :
BOE
Certification :
RoHS Compliant
Model Number :
HM185WX3-200
MOQ :
1 PCS
Price :
Pls Contact sales team
Packaging Details :
MODULE
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
1000
Panel Model :
HM185WX3-200
Panel Brand :
BOE
Descrition :
a-Si TFT-LCD ,18.5 inch, 1366×768
Panel Type :
a-Si TFT-LCD
Description

BOE 18.5inch HM185WX3-200 LCD Panel

Specification for HM185WX3-200:

HM185WX3-200 Basic Information

Panel Model

HM185WX3-200

Panel Brand

BOE

Descrition

a-Si TFT-LCD ,18.5 inch, 1366×768

Panel Type

a-Si TFT-LCD

Operating Temperature

0 ~ 50 °C

Storage Temperature

-20 ~ 60 °C

Remarks

open cell

HM185WX3-200 Mechanical Features

Dot Resolution

1366(RGB)×768 (WXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

84 PPI

Aspect Ratio

16:9 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.100×0.300 mm (H×V)

Pixel Pitch

0.300×0.300 mm (H×V)

Weight

500g (Max.)

Surface

Antiglare (Haze 25%), Hard coating (3H)

Active Area

409.8×230.4 mm (H×V)

Outline Dimension

421.4×242.25 mm (H×V)

Outline Depth

1.83 (Typ.) mm

Landscape or Portrait

Landscape type

Touch Panel

Without

HM185WX3-200 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

0 cd/m²

Contrast Ratio

600 : 1 (Typ.) (Transmissive)

Display Color

16.7M (6-bit + Hi-FRC)

Response Time

1.5/3.5 (Typ.)(Tr/Td)

Viewing Angle

45/45/25/40 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

6 o'clock

Sunlight Readable

N

HM185WX3-200 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

HM185WX3-200 Backlight System

Lamp Type

No B/L

HM185WX3-200 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (1 ch, 8-bit)

Input Voltage for Panel

5.0V (Typ.)

Input Current for Panel

0.6/1.0A (Typ./Max.)

Panel Power Consumption

3.0/4.5W (Typ./Max.)

Interface Type

Connector

Signal Interface

UJU - IS100-L30O-C23, Pitch:1.0 mm, Pin:30 pins
