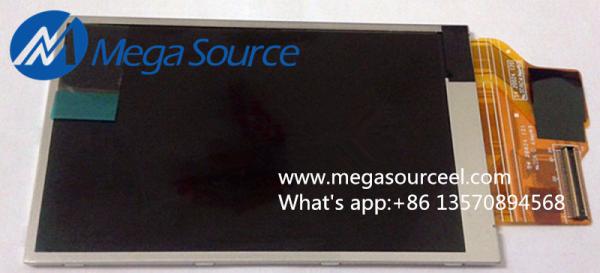

SONY 3inch GCX133ALC-E LCD Panel
SONY 3inch GCX133ALC-E LCD Panel
Specifications
Place of Origin :
Japan
Brand Name :
SONY
Certification :
RoHS Compliant
Model Number :
GCX133ALC-E
MOQ :
1 PCS
Price :
Pls Contact sales team
Packaging Details :
MODULE
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
1000
Panel Model :
GCX133ALC-E
Panel Brand :
SONY
Descrition :
LTPS TFT-LCD ,3.0 inch, 320×240
Panel Type :
LTPS TFT-LCD
Description

SONY 3inch GCX133ALC-E LCD Panel

Specification for GCX133ALC-E:

GCX133ALC-E Basic Information

Panel Model

GCX133ALC-E

Panel Brand

SONY

Descrition

LTPS TFT-LCD ,3.0 inch, 320×240

Panel Type

LTPS TFT-LCD

Operating Temperature

-10 ~ 60 °C

Storage Temperature

-20 ~ 70 °C

GCX133ALC-E Mechanical Features

Dot Resolution

320(RGB)×240 (QVGA)

Pixel Configuration

RGB Delta

Pixel Density

135 PPI

Aspect Ratio

15:10 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.065×0.1735 mm (H×V)

Weight

7g

Surface

Hard coating

Active Area

62.43×41.64 mm (H×V)

Outline Dimension

69.26×45.64 mm (H×V)

Outline Depth

1.029±0.15 mm

Landscape or Portrait

Landscape type

Touch Panel

Without

GCX133ALC-E Optical Features

Display Mode

Vistarich, Normally Black, Transmissive

Brightness

0 cd/m²

Contrast Ratio

800 : 1 (Typ.) (Transmissive)

Display Color

16.7M (8-bit)

Color Gamut

60% NTSC (CIE1931)

Response Time

14/12 (Typ.)(Tr/Td)

Viewing Angle

80/80/80/80 (Typ.)(CR≥100) (L/R/U/D)

Viewing Direction

Symmetry

White color Chromaticity

Wx:0.310; Wy:0.330

Transmissivity

7.5% (Typ.)(with Polarizer)

Sunlight Readable

N

GCX133ALC-E Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

Yes (U/D, L/R)

GCX133ALC-E Backlight System

Lamp Type

No B/L

Interface Type

Included in panel signal interface

Lamp Driver Board

No

GCX133ALC-E Signal Interface

Signal Category

Serial RGB

Signal Class

Serial RGB (8-bit) + SPI

Input Voltage for Panel

3.1/3.1V (Typ.)(VDD/VDDI)

Input Current for Panel

6.8mA (Typ.)(IDD+IDDI)

Interface Type

FPC
