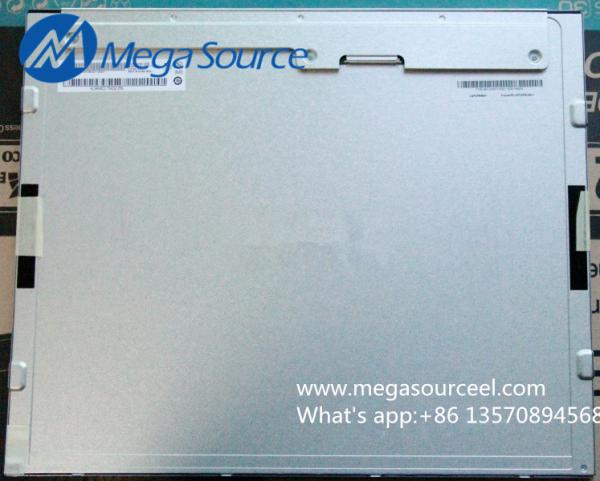

LG Display 19inch LM190WX1-TLL5 LCD Panel
LG Display 19inch LM190WX1-TLL5 LCD Panel
Specifications
Place of Origin :
Japan
Brand Name :
LG Display
Certification :
RoHS Compliant
Model Number :
LM190WX1-TLL5
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
MODULE
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
1000
Panel Model :
LM190WX1-TLL5
Panel Brand :
LG Display
Descrition :
a-Si TFT-LCD ,19.0 inch, 1440×900
Panel Type :
a-Si TFT-LCD
Description

LG Display 19inch LM190WX1-TLL5 LCD Panel

Specification for LM190WX1-TLL5:

LM190WX1-TLL5 Basic Information

Panel Model

LM190WX1-TLL5

Panel Brand

LG Display

Descrition

a-Si TFT-LCD ,19.0 inch, 1440×900

Panel Type

a-Si TFT-LCD

Model Alias

LM190WX1 (TL)(L5)

Operating Temperature

0 ~ 50 °C

Storage Temperature

-20 ~ 60 °C

LM190WX1-TLL5 Mechanical Features

Dot Resolution

1440(RGB)×900 (WXGA+)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

89 PPI

Aspect Ratio

16:10 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.0945×0.2835 mm (H×V)

Pixel Pitch

0.2835×0.2835 mm (H×V)

Weight

1.97/2.06Kgs (Typ./Max.)

Surface

Antiglare, Hard coating (3H)

Active Area

408.24×255.15 mm (H×V)

Bezel Area

412.24×259.15 mm (H×V)

Outline Dimension

428×278 mm (H×V)

Outline Depth

15.0 (Max.) mm

Holes & Brackets

Side mounting holes (4-M3) on left, right bezel

Landscape or Portrait

Landscape type

Touch Panel

Without

LM190WX1-TLL5 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

250 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (Transmissive)

Display Color

16.7M (8-bit)

Response Time

1.3/3.7 (Typ.)(Tr/Td)

Viewing Angle

85/85/75/85 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

6 o'clock

White color Chromaticity

Wx:0.313; Wy:0.329

White Variation

1.33 (Max.)(9 points)

Sunlight Readable

N

LM190WX1-TLL5 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

Total Power Consumption

15.0W (Typ.)

LM190WX1-TLL5 Backlight System

Lamp Position

Edge light type (Top and Bottom)

Lamp Type

CCFL

Lamp Amount

2 pcs

Lamp Shape

Straight

Lamp Life Time

50K(Min.) (Hours)

Lamp Voltage

705/720/853V (Min./Typ./Max.)

Lamp Current

3.0/7.5/8.0mA (Min./Typ./Max.)

Lamp Operating Frequency

40/80KHz (Min./Max.)

Lamp Startup Voltage

1250/1550V (Max.)(Ta=+25/0℃)

Lamps Power Consumption

10.8/11.88W (Typ./Max.)

Interface Type

Connector

Lamp Driver Board

No

LM190WX1-TLL5 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (2 ch, 8-bit)

Input Voltage for Panel

5.0V (Typ.)

Input Current for Panel

940±141mA

Panel Power Consumption

4.2/4.83W (Typ./Max.)

Interface Type

Connector

Signal Interface

LS Mtron - GT103-30S-H23, Pitch:1.0 mm, Pin:30 pins
