Specifications
Place of Origin :
Japan
Brand Name :
AUO
Certification :
RoHS Compliant
Model Number :
G070VW01 V1
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
1 day
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
478
Panel Size :
7.0 inch
Resolution :
800(RGB)×480 , WVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
152.4×91.44 mm
Outline :
170×111×8.5 mm
Surface :
Antiglare, Hard coating (3H)
Brightness :
350 cd/m² (Typ.)
Contrast Ratio :
500:1 (Typ.)
Description

AUO 7.0 inch G070VW01 V1 350 cd/m² (Typ.) 800(RGB)×480 , WVGA PANEL 60Hz

Model Number:G070VW01 V1

Specification for AUO G070VW01 V1

1,AUO G070VW01 V1 Basic Information

Panel Brand : Buy AUO 7.0 inch G070VW01 V1 350 cd/m² (Typ.) 800(RGB)×480 , WVGA PANEL 60Hz
Panel Model : G070VW01 V1
Model Alias : G070VW01 V.1
Panel Type : a-Si TFT-LCD , Panel
Application :

Buy AUO 7.0 inch G070VW01 V1 350 cd/m² (Typ.) 800(RGB)×480 , WVGA PANEL 60Hz
Operating Temperature : -20 ~ 70 °C
Storage Temperature : -20 ~ 70 °C
RoHS : Buy AUO 7.0 inch G070VW01 V1 350 cd/m² (Typ.) 800(RGB)×480 , WVGA PANEL 60Hz

2,AUO G070VW01 V1 Mechanical Features

Panel Size : 7.0inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 133 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0635×0.1905 mm (H×V)
Pixel Pitch : 0.1905×0.1905 mm (H×V)
Weight : 175g
Surface : Antiglare, Hard coating (3H)
Active Area : 152.4×91.44 mm (H×V)
Bezel Area : 154.4×93.44 mm (H×V)
Outline Dimension : 170×111 mm (H×V)
Outline Depth : 5.0/8.5 (Typ./Max.) mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without

3,AUO G070VW01 V1 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 12/18 (Typ.)(Tr/Td)
Viewing Angle : 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.300; Wy:0.320
White Variation : 1.30 (Max.)(5 points)

4,AUO G070VW01 V1 Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : Yes (U/D, L/R)
Total Power Consumption : 3.4W (Typ.)

5,AUO G070VW01 V1 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Life Time : 30K(Typ.) (Hours)
Lamp Replaceable : Replaceable
Interface Type : Connector

6,AUO G070VW01 V1 Packing Form

Amount per Box : 60 pcs
Box Size : 434×377×264 mm (L×W×H)
Box Gross Weight : 14.4 Kgs

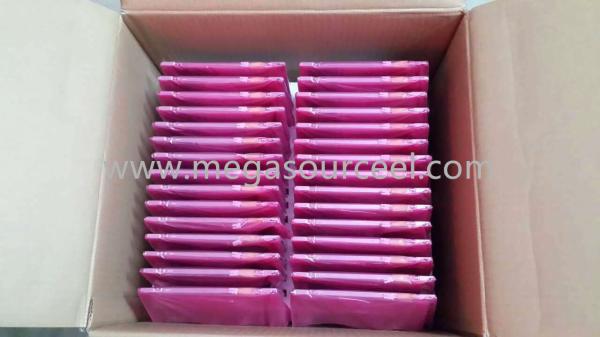

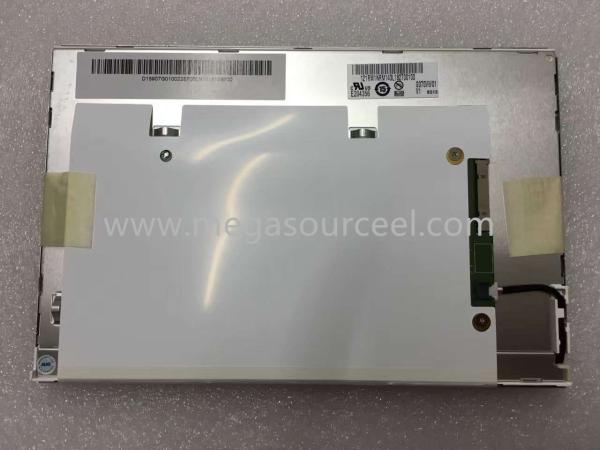

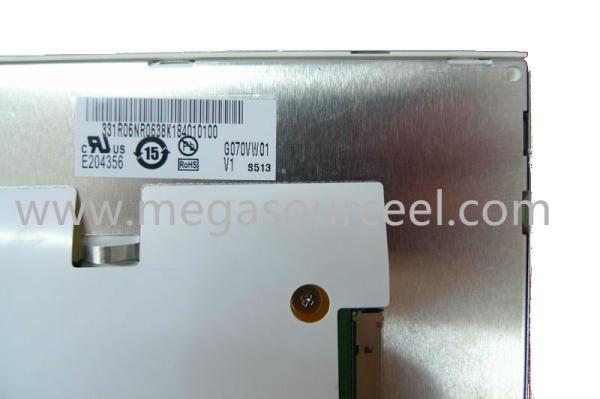

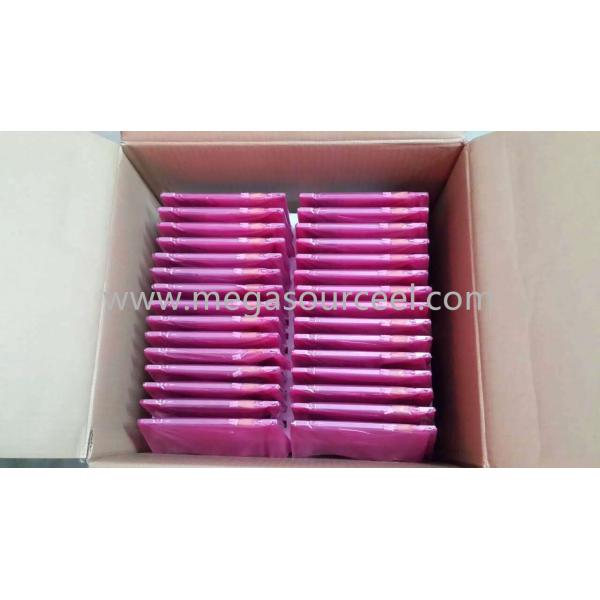

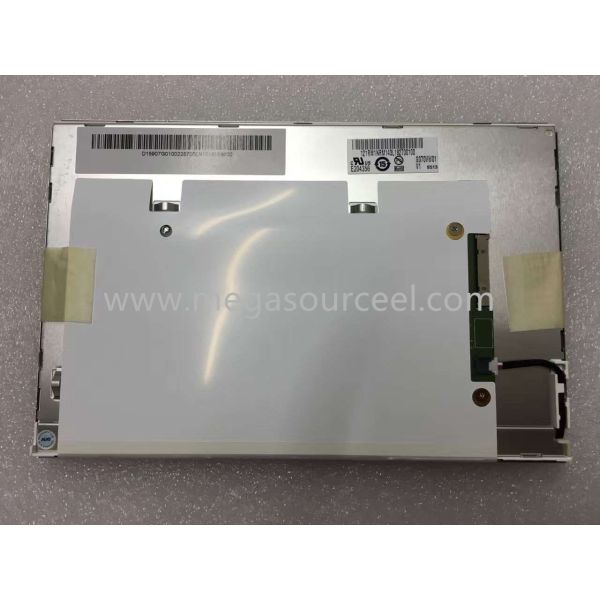

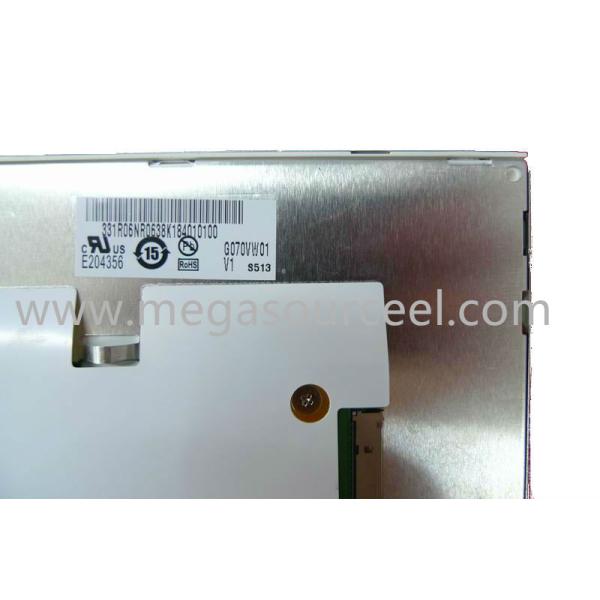

Detail pictures for 350 cd/m² (Typ.) G070VW01 V1 800(RGB)×480 ,WVGA PANEL 60Hz AUO 7.0 inch
