Specifications
Place of Origin :
Japan
Brand Name :
AUO
Model Number :
G084SN03 V1
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
1 day
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
2015
Panel Size :
8.4 INCH
Resolution :
800(RGB)×600 , SVGA
Active Area :
170.4×127.8 mm
Outline :
203×142.5 mm
Brightness :
250 cd/m² (Typ.)
Display Colors :
262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 45%
Contrast Ratio :
600:1 (Typ.)
Frequency :
60HZ
Description

G084SN03 V1 8.4inch industrial TFT LCD, G084SN03 V.1, 800x600 MM098 AUO

Model Number:G084SN03 V1

1,AUO G084SN03 V1 Basic Information

Panel Brand : G084SN03 V1 8.4inch industrial TFT LCD, G084SN03 V.1, 800x600 MM098 AUO
Panel Model : G084SN03 V1
Model Alias : G084SN03 V.1
Panel Type : a-Si TFT-LCD , Panel
Application :

G084SN03 V1 8.4inch industrial TFT LCD, G084SN03 V.1, 800x600 MM098 AUO
Operating Temperature : -30 ~ 85 °C
Storage Temperature : -30 ~ 85 °C
RoHS : G084SN03 V1 8.4inch industrial TFT LCD, G084SN03 V.1, 800x600 MM098 AUO

2,AUO G084SN03 V1 Mechanical Features

Panel Size : 8.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 119 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.071×0.213 mm (H×V)
Pixel Pitch : 0.213×0.213 mm (H×V)
Weight : 200±10g
Surface : Antiglare, Hard coating (3H)
Active Area : 170.4×127.8 mm (H×V)
Bezel Area : 173.8×131.2 mm (H×V)
Outline Dimension : 203×142.5 mm (H×V)
Outline Depth : 6.0 (Max.) mm
Holes & Brackets : Face mounting holes (2-Φ3.0, 2-R1.5)
Landscape or Portrait : Landscape type
Touch Panel : Without

3,AUO G084SN03 V1 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 20/10 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.43 (Max.)(9 points)

4,AUO G084SN03 V1 Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : Yes (U/D, L/R)

5,AUO G084SN03 V1 Backlight System

Lamp Position : Edge light type (Bottom side)
Lamp Type : CCFL
Lamp Amount : 1 pcs
Lamp Life Time : 30K(Min.) (Hours)
Lamp Replaceable : Replaceable
Lamp Voltage : 410/460/530V (Min./Typ./Max.)
Lamp Current : 3.0/4.6/7.0mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/50/60KHz (Min./Typ./Max.)
Lamp Startup Voltage : 890/1150V (Max.)(Ta=+25/0℃)
Lamps Power Consumption : 1.23/2.12/3.71W (Min./Typ./Max.)

6,AUO G084SN03 V1 Signal Interface

Signal Category : LVDS
Signal Class : LVDS (1 ch, 6/8-bit)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 300/330mA (Typ./Max.)
Panel Power Consumption : 1W (Typ.)

7,AUO G084SN03 V1 Packing Form

Amount per Box : 30 pcs
Box Size : 600×353×210 mm (L×W×H)
Box Gross Weight : 12 Kgs

​

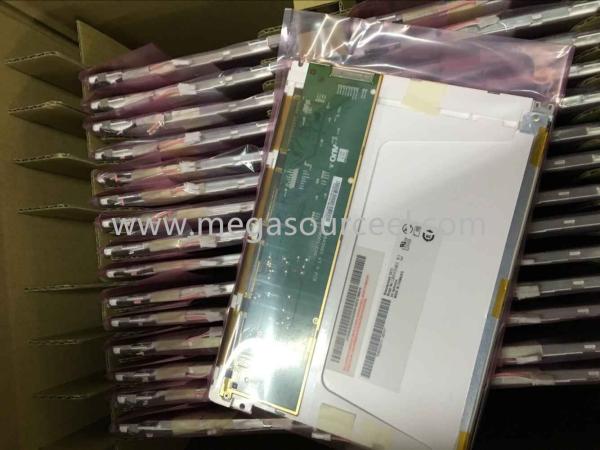

Detail pictures for G084SN03 V1 8.4inch industrial TFT LCD, G084SN03 V.1, 800x600 MM098 AUO

G084SN03 V1 8.4inch industrial TFT LCD, G084SN03 V.1, 800x600 MM098 AUOG084SN03 V1 8.4inch industrial TFT LCD, G084SN03 V.1, 800x600 MM098 AUO
