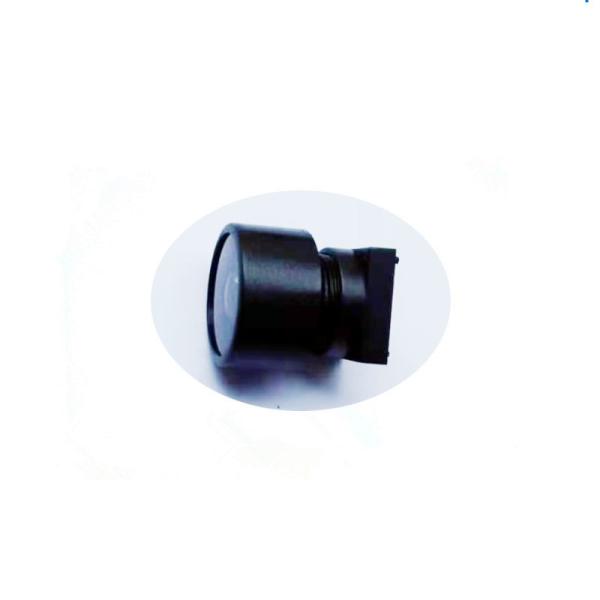

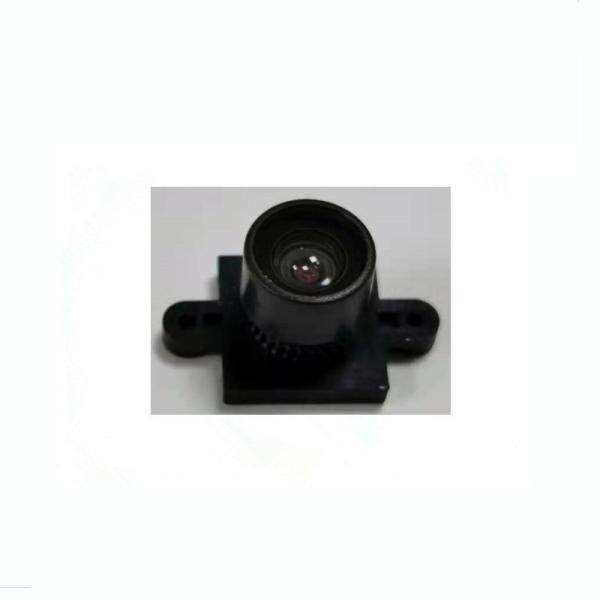

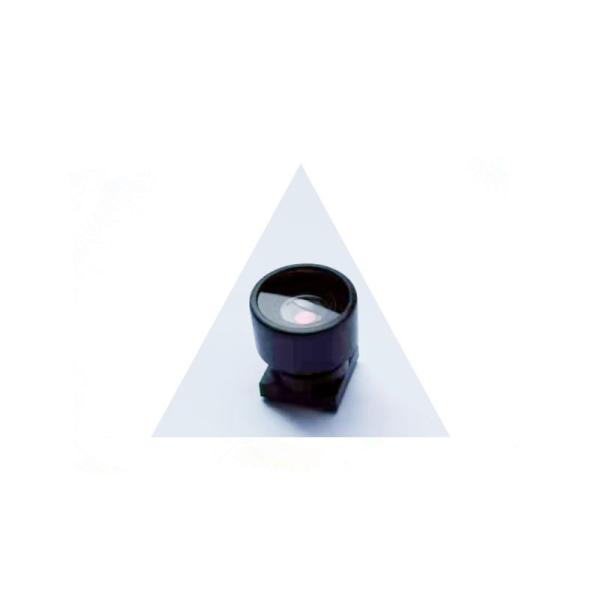

1/4 2.5mm F2.8 Megapixel M7x0.35 mount 115D mini camera lens, 2.5mm M7 plastic lens
1/4 2.5mm F2.8 Megapixel M7x0.35 mount 115D mini camera lens, 2.5mm M7 plastic lens
1/4 2.5mm F2.8 Megapixel M7x0.35 mount 115D mini camera lens, 2.5mm M7 plastic lens
1/4 2.5mm F2.8 Megapixel M7x0.35 mount 115D mini camera lens, 2.5mm M7 plastic lens
1/4 2.5mm F2.8 Megapixel M7x0.35 mount 115D mini camera lens, 2.5mm M7 plastic lens
1/4 2.5mm F2.8 Megapixel M7x0.35 mount 115D mini camera lens, 2.5mm M7 plastic lens
Specifications
Brand Name :
CCOM LENS
Model Number :
14025MP-M7 14025MPF-M7
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
3-8 work days
Packaging Details :
Standard
Video Lens :
M7 mount wide angle mini lens
Resolution :
Megapixel
FOV :
115°
Lens Constructure :
6P/6P+IR
Description

1/4" 2.5mm F2.8 Megapixel 115degree wide angle M7*0.35 mount lens for digital cameras/drone/electronic video devices, M7 mount lens for mini video camera

MODEL: 14025MPF-M7
SENSOR SIZE: 1/4"

MAX IMAGE CIRCLE: Φ4.8mm
FOCAL LENGTH(mm): 2.5
F.O.V.: 115°
RESOLUTION: MP
OPTICAL DISTORTION: <-12%
APERTURE: F2.8 (infinity)
MOUNT(mm): M7xP0.35
IRIS: Fixed
M.O.D.: 10cm
F.B.L.(mm) 1.05
T.T.L.(mm): 11.20
LENS COMPOMEMT: 6P+IR
DIMENSION: Φ10.0x10.15mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
