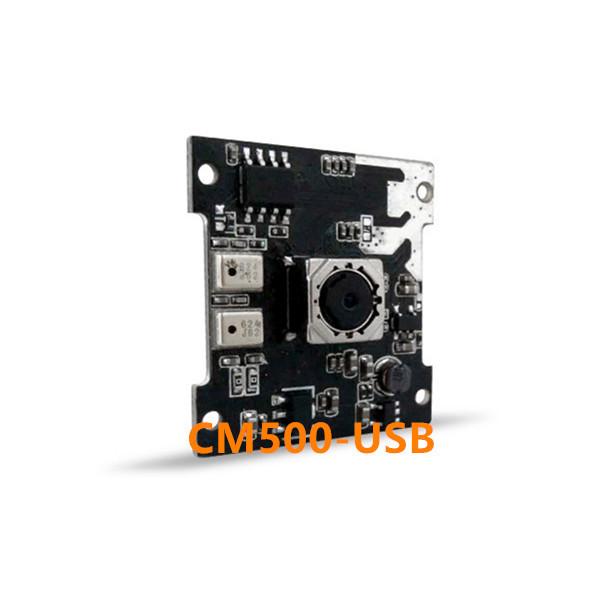

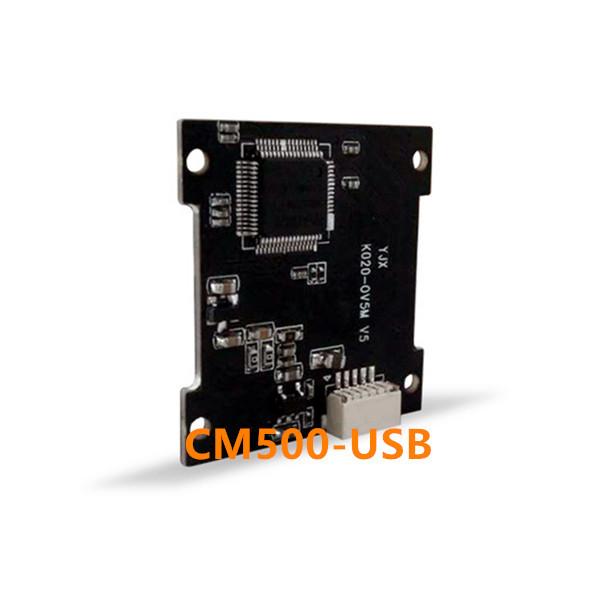

Dual microphones Plug and Play Driver-Free 1/4" 1080P 960P HD Megapixel USB video camera module for living face recognition, USB2.0 OTG Laptop camera module with OV5648, support 30fps YUV2/MJPEG, DC5V 140mA

The USB camera module is defaultly without lines/cables. If you need the camera module with cable, 1 meter line/cable is optional.

Dual microphones optional.

Features:

- Mjpeg 30fps real-time preview with good low illumination;
- High definition 5 mega pixel, with excellent outdoor effect and vivid colors;
- Support UVC protocol, no need to drive, plug and play;
- Support OTG;
- Open Windows system's SDK source code for mass production orders;

- Lens FOV 72degrees, 70-120degrees optional;

- Fixed focusing or auto focusing optional.

Specifications:
MODEL: CM500-USB
SENSOR: OV5648
LENS FORMAT: 1/4" HD glass lens
PIXEL SIZE: 1.4 μ m x 1.4 μ m
IMAGE AREA: 3673.6 μ m x 2738.4 μ m
MAX EFFECTIVE PIXEL: 2592(H)*1944(V)
OUTPUT FORMAT: MJPEG/YUV2(YUYV)
RESOLUTION & FRAME: 30fps UXGA MJPEG, 15pfs UXGA YUV
S/N RATIO: 36dB
DYNAMIC RANGE: 68dB @ 8x gian
SENSITIVITY: 600mV/Lux-sec
MIN ILLUMINATION: 0.1lux
SHUTTER TYPE: electronic rolling shutter
INTERFACE: USB2.0 high speed
USB PROTOCOL: USB2.0 HS/FS
SUPPORT DRIVE-FREE PROTOCOL: USB video class (UVC)
SUPPORT OTG PROTOCOL: USB2.0 OTG
AEC: Support
AEB: Support
AGC: Support
Adjustable parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance,Backlight contrast, Exposure.
POWER: USB BUS POWER 5P 1.0mm jack, DC 5V
WORKING CURRENT: 140mA
WORKING TEMP.: -30°C to 70°C
STORATE TEMP.: 0°C to 50°C
SUPPORT SYSTEMS (DRIVELESS): WinXP, VISTA, Win7.0, Win8.1, Win10, Linux with UVC (above lunux-2.6.26), Android 4.0 or above with UVC
DIMENSION: L30mmxW27mmxH10.4mm

Tips:
- Customization support
- For more lenses, please feel free to contact us at sales01@megapixellenses.com
