1/2.5 3.24mm F2.7 12Megapixel 4K M12x0.5 mount low-distortion board lens for IMX317 IMX377
1/2.5 3.24mm F2.7 12Megapixel 4K M12x0.5 mount low-distortion board lens for IMX317 IMX377
1/2.5 3.24mm F2.7 12Megapixel 4K M12x0.5 mount low-distortion board lens for IMX317 IMX377
1/2.5 3.24mm F2.7 12Megapixel 4K M12x0.5 mount low-distortion board lens for IMX317 IMX377
1/2.5 3.24mm F2.7 12Megapixel 4K M12x0.5 mount low-distortion board lens for IMX317 IMX377
1/2.5 3.24mm F2.7 12Megapixel 4K M12x0.5 mount low-distortion board lens for IMX317 IMX377
Specifications
Brand Name :
CCOM LENS
Model Number :
1250324MP 1250324MPF
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
3-7 work days
Packaging Details :
Standard
Board Lens :
M12 Mount Low-distortion Lens
Resolution :
12MP
TV Distortion :
<-0.32%
Constructure :
4G2P/4G2P+IR
Description

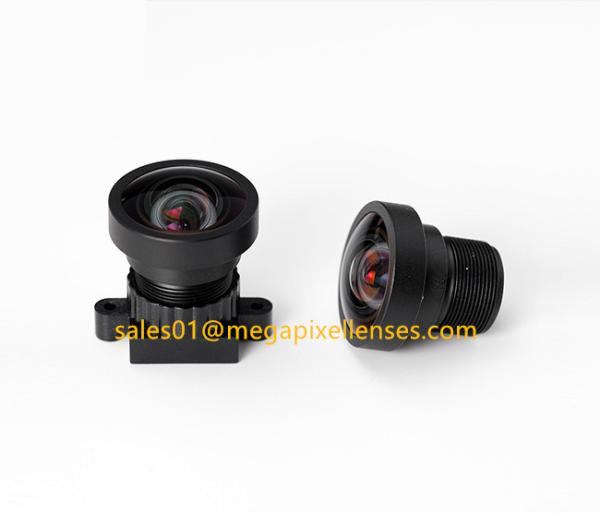

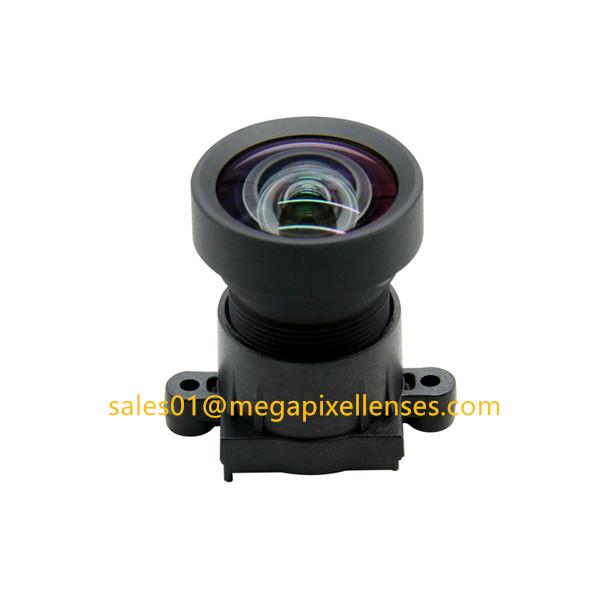

1/2.5" 3.24mm F2.7 4K 12MP S-mount low-distortion board lens for IMX317/IMX377 sensor, megapixel M12x0.5 mount video lens

Model 1250324MPF
IMAGE FORMAT 1/2.5”
FOCAL LENGTH 3.24mm
F.O.V.(D*H*V) 95.4°*87°*57°
RESOLUTION 12MP
APERTURE F2.7
TV DISTORTION <-0.32%
IRIS Fixed
F.B.L. 3.95m
T.T.L. 22.5mm

R.I. >70%

C.R.A. <12.6°
CONSTRUCTION 4G2P+IR(650nm)

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com
