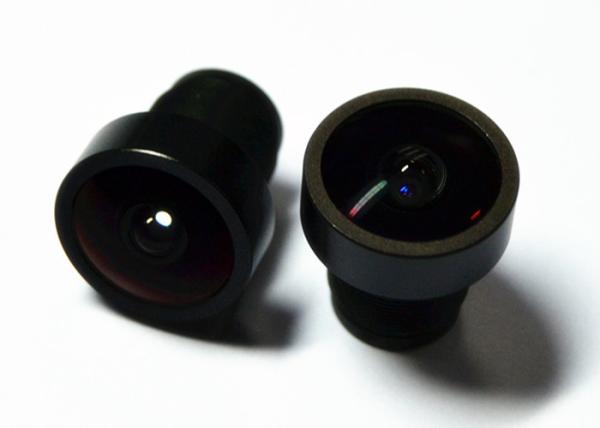

1/3 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 130degree wide angle board lens for OV4689/AR0330
1/3 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 130degree wide angle board lens for OV4689/AR0330
1/3 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 130degree wide angle board lens for OV4689/AR0330
1/3 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 130degree wide angle board lens for OV4689/AR0330
1/3 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 130degree wide angle board lens for OV4689/AR0330
1/3 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 130degree wide angle board lens for OV4689/AR0330
Specifications
Brand Name :
CCOM LENS
Model Number :
13028MPF(A)
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Video Lens :
M12 Mount Board Lens
Resolution :
Megapixel
FOV(D*H*V) :
OV4689: 130.6°*112.6°*62.4°, AR0330: 128.6°*105.8°*69.6°
Constructure :
6G/6G+IR
Description

1/3" 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount wide angle board lens for OV4689/AR0330, 2.8mm 130degree wide angle cctv lens

MODEL 13028MPF(A)

SENSOR FORMAT 1/3"

SENSOR OV4689/AR0330
MAX IMAGE CIRCLE Φ6.32mm
FOCAL LENGTH(EFL) 2.8mm
F.O.V. (D*H*V) OV4689: 130.6°*112.6°*62.4°, AR0330: 128.6°*105.8°*69.6°
RESOLUTION 5MP
APERTURE F2.2/F2.0 (A1/A2)
OPTICAL DISTORTION <-37.6%
MOUNT M12X0.5
B.F.L.(O) 6.25mm
B.F.L.(M) 2.73mm
T.T.L. 22.7mm
LENS CONSTRUCTURE 6G+IR

DIMENSION(mm) Φ17.5x19.97
RELATIVE ILLUMINATION OV4689: >65%; AR0330: >64%
IR COATING 640±8NM AT: 50%
CHIEF RAT ANGLE OV4689: <20.84°; AR0330: <20.58°

MODEL 13028MPF(B)

SENSOR FORMAT 1/3"

SENSOR OV4689/AR0330
MAX IMAGE CIRCLE Φ6.32mm
FOCAL LENGTH(EFL) 2.8mm
F.O.V. (D*H*V) OV4689: 130.6°*112.6°*62.4°, AR0330: 128.6°*105.8°*69.6°
RESOLUTION 5MP
APERTURE F2.4/F2.2 (B1/B2)
OPTICAL DISTORTION <-37.6%
MOUNT M12X0.5
B.F.L.(O) 6.25mm
B.F.L.(M) 2.73mm
T.T.L. 22.7mm
LENS CONSTRUCTURE 6G+IR

DIMENSION(mm) Φ17x19.97
RELATIVE ILLUMINATION OV4689: >65%; AR0330: >64%
IR COATING 640±8NM AT: 50%
CHIEF RAT ANGLE OV4689: <20.84°; AR0330: <20.58°

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
