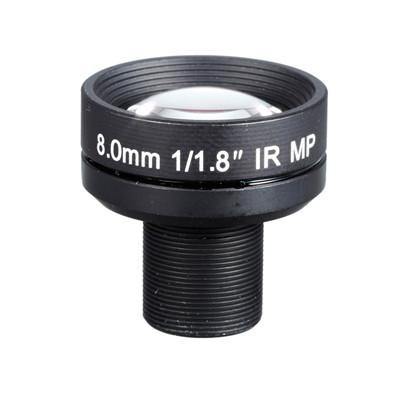

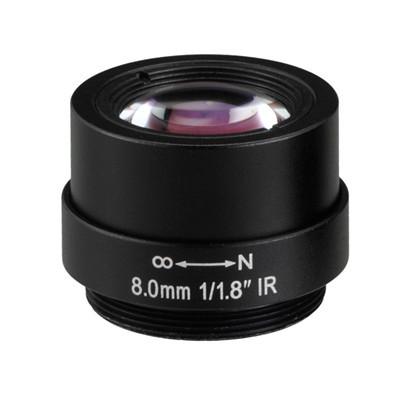

1/1.8 8mm F1.8 5Megapixel CS Mount Non-Distortion IR Board Lens
1/1.8 8mm F1.8 5Megapixel CS Mount Non-Distortion IR Board Lens
1/1.8 8mm F1.8 5Megapixel CS Mount Non-Distortion IR Board Lens
1/1.8 8mm F1.8 5Megapixel CS Mount Non-Distortion IR Board Lens
1/1.8 8mm F1.8 5Megapixel CS Mount Non-Distortion IR Board Lens
1/1.8 8mm F1.8 5Megapixel CS Mount Non-Distortion IR Board Lens
Specifications
Place of Origin :
China
Model Number :
1180818MP-CS
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
CS Mount Low-distortion Lens
Resolution :
5MP
Distortion :
<-2%
Materials :
Metal+Glass, 8G/8G+IR
Description

Non distortion Lens

● High definition <2.5% low distortion lens
● High resolution compatible with 1.3-5 Mega-pixel cameras
● Broad band confocal design suitable for both Visible and NIR applications
● Compact design ideal for integration
● Cost-effective for recognition applications

1/1.8" 8.0mm 5Megapixel F1.8 M12*0.5 Mount S Mount High Quality Non-Distortion IR Board Lens for 1/1.8" 1/2" sensor

Model: 1180818MP-CS
Image Format 1/1.8″
Focal Length 8.0mm
Aperture F1.8
Resolution MP
Horizontal Angle of View 47.2°
Distortion -2%
Mount Type CS
Minimum Object Distance 0.2m
Back Focal Length 9.92mm
Iris Fixed
Constructure 8-7
External Dimensions(mm) Φ30(D)*18.9(L)

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12x0.5 mount available

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
