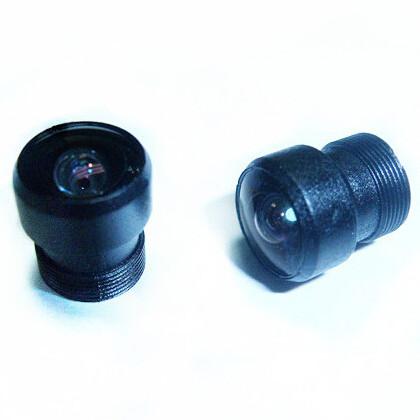

1/5 1.7mm F2.0 VGA M7x0.35 mount 135degree Wide Angle Lens for OV7740, 1.7mm M7 video lens
1/5 1.7mm F2.0 VGA M7x0.35 mount 135degree Wide Angle Lens for OV7740, 1.7mm M7 video lens
1/5 1.7mm F2.0 VGA M7x0.35 mount 135degree Wide Angle Lens for OV7740, 1.7mm M7 video lens
1/5 1.7mm F2.0 VGA M7x0.35 mount 135degree Wide Angle Lens for OV7740, 1.7mm M7 video lens
1/5 1.7mm F2.0 VGA M7x0.35 mount 135degree Wide Angle Lens for OV7740, 1.7mm M7 video lens
1/5 1.7mm F2.0 VGA M7x0.35 mount 135degree Wide Angle Lens for OV7740, 1.7mm M7 video lens
1/5 1.7mm F2.0 VGA M7x0.35 mount 135degree Wide Angle Lens for OV7740, 1.7mm M7 video lens
1/5 1.7mm F2.0 VGA M7x0.35 mount 135degree Wide Angle Lens for OV7740, 1.7mm M7 video lens
Specifications
Place of Origin :
China
Model Number :
15017-M7 15017F-M7
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M7 Mount Wide Angle Lens
Resolution :
0.3MP
FOV(DxHxV) :
135°*110°*80°
Lens Constructure :
2G2P/2G2P+IR
Description

1/5" 1.7mm F2.0 M7*0.35 Mount 135degree Wide Angle Lens for vehicle rear-view mirror, 1.7mm M7 OV7740 lens

Model: 15017-M7
IMAGE FORMAT: 1/5"(OV7740)
FOCAL LENGTH(mm): 1.7
F.O.V.: 135°(D)*110°(H)*80°(V)
RESOLUTION: VGA
DISTORTION: <-3.5%
APERTURE: F2.0
MOUNT(mm):M7x0.35
M.O.D.(mm): 10
B.F.L.(mm): 2.34
T.T.L.(mm): 10.31
DIMENSION: Φ10*8.62mm
LENS COMPOMEMT: 2G2P+IR

Tips:
- ***F: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- Waterproof version is optional.

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
