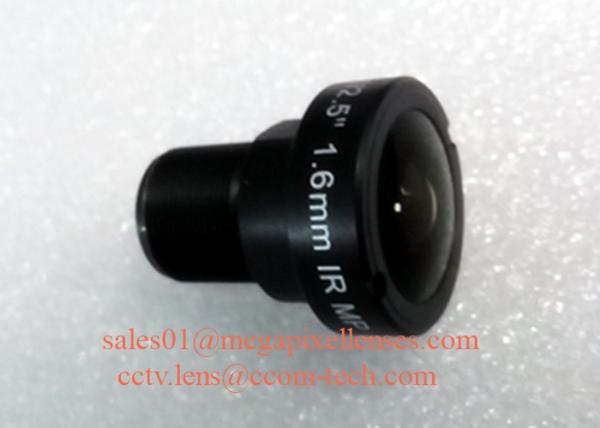

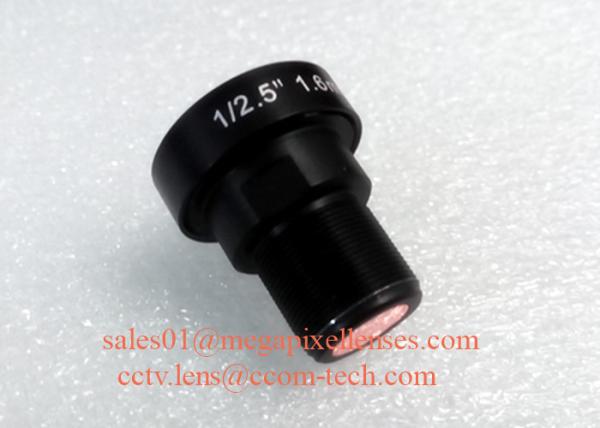

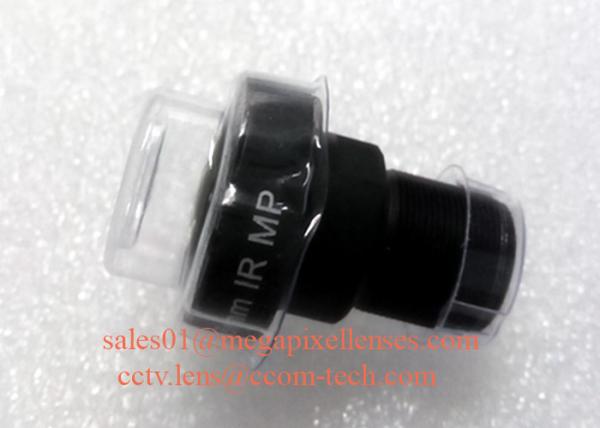

1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
1/2.5 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens
Specifications
Place of Origin :
China
Model Number :
1250158MP 1250158MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board Lens :
M12 Mount Fisheye Lens
Resolution :
5MP
FOV :
180degree
Materials :
Metal + Glass
Description

High Definition Fisheye Lens
● High resolution
● Various applications meet your requirements

● Compact design with cost-effective performance
● Custom design

● Super wide-angle with FOV up to 180° for panoramic surveillance
● Sharp image quality for multi-mega pixels cameras
● Suitable for various image frame
● IR cut option

1/2.5" 1.58mm/1.6mm 5Megapixe M12 Mount 180degree IR Fisheye Lens, 5MP Panoramic camera lens

Model 1250158MP
IMAGE FORMAT 1/2.5” CCD/CMOS
IMAGE CIRCLE Φ4.1mm
FOCAL LENGTH 1.58mm/1.60mm
F.O.V (D*H*V) 180°*180°*180°
RESOLUTION 5MP
OPTICAL DISTORTION -99.9%
F-Theta DISTORTION -18.2%
APERTURE F2.8
EFFECTIVE APERTURE Front: Φ15mm, Rear: Φ3.9mm
MOUNT M12×0.5
IRIS Fixed
M.O.D. 0.1m
B.F.L. 5.6mm
C.R.A. 9.6°
R.I. >70%
CONSTRUCTION 6G

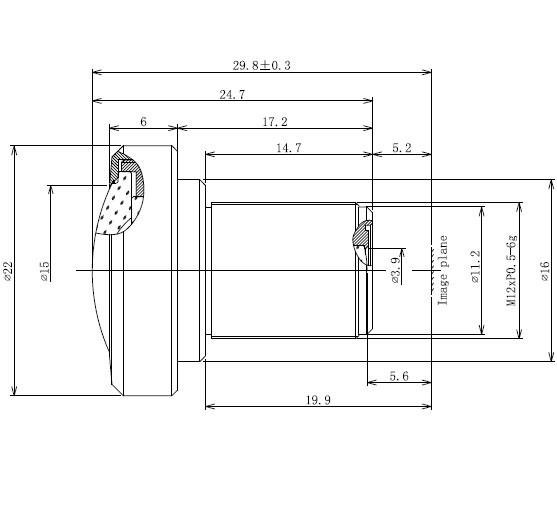

DIMENSION Φ22×24.7mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
