Super mini IR camera module for endoscope, 7mm wide, 1/5" CMOS, 420TVL, DC3.5V~6V
Super mini IR camera module for endoscope, 7mm wide, 1/5" CMOS, 420TVL, DC3.5V~6V
Super mini IR camera module for endoscope, 7mm wide, 1/5" CMOS, 420TVL, DC3.5V~6V
Super mini IR camera module for endoscope, 7mm wide, 1/5" CMOS, 420TVL, DC3.5V~6V
Super mini IR camera module for endoscope, 7mm wide, 1/5" CMOS, 420TVL, DC3.5V~6V
Super mini IR camera module for endoscope, 7mm wide, 1/5" CMOS, 420TVL, DC3.5V~6V
Super mini IR camera module for endoscope, 7mm wide, 1/5" CMOS, 420TVL, DC3.5V~6V
Super mini IR camera module for endoscope, 7mm wide, 1/5" CMOS, 420TVL, DC3.5V~6V
Specifications
Place of Origin :
China
Model Number :
7015IR
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
Description

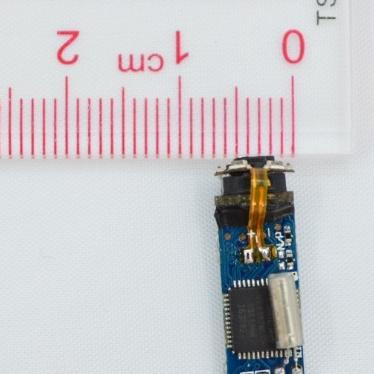

This camera is supper mini camera, using 1/5” CMOSchip. The camera outside diameter is only7mm.

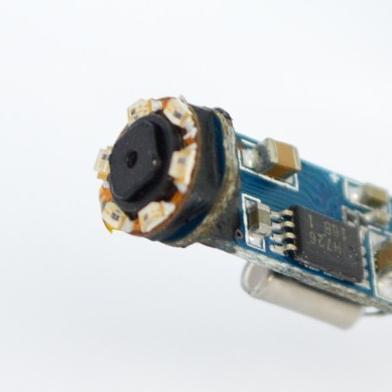

The camera uses 1/5” CMOS chip, clear imaging, the maximum pixel can reach 420TVL, 60 frames/second, no smearing; standard video signal output, can be connected with home TV, reversing displays and other display devices . Optional N / P system, automatically eliminating image flicker; equipped with six high-brightness infrared LED lighting, no lighting dead, no spot.

The main advantages of this product are: small size, low power consumption, clear imaging.

Specifications

Dimension: diameter * length

Φ7mmX23mm

Image Sensor

1/5″ CMOS Sensor

Sensitive area

2755.2μm X 2049.6μm

Image size

4.2μm X 4.2μm

Effective Pixels

720(H)X576(V)(P) / 720(H)X480(V)(N)

Horizontal Resolution

420 TVL

S/N Ratio

42 dB

Electronic Shutter

1/60S - 5.7μS

Gradation

10th rank

Video Signal

PAL/NTSC

Validity Focal Length

30mm ~ 80mm

Vision Angle

60°

Lens

F3.0, ELF 2.47mm, FOV 60°, with IR filter

Gamma attenuation

0.45

Video Output

1 Vp-p, 75 Ohm composite

Scanning Frequency

H: 15.7343KHZ, V:60HZ

Minimum illumination

0.1 Lux / F2.0(0 Lux when LED is on)

Frequency

60@27MHz in NTSC / 50@27MHz in PAL

Power Supply

3.3V~6V/DC , 110mA(with 75 Ohm load)

4Pin Output

Power, GND, Video, LED

LED Lighting

6pcs 0603 high light LED, 500mcd*6PCS LED

Storage Temperature

-30 degree Celsius to 60 degree Celsius

Working Temperature

-20 degree Celsius to 50 degree Celsius, Rh95% max

Product tags

cmos ir camera module

,

endoscope camera module

,

infrared camera module
