4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
4.5mm 0.3MP 1/12 CMOS medical endoscope camera module VGA video camera module
Specifications
Place of Origin :
China
Model Number :
45112-60, 45112-60-LED
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
Description

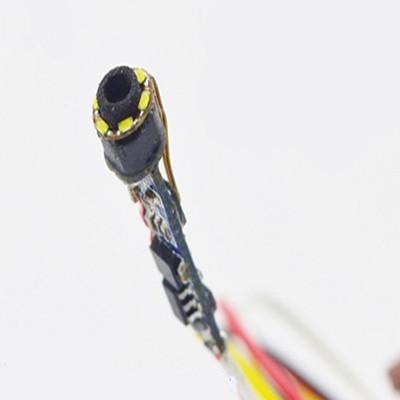

The camera uses 1/12 CMOS chip, clear imaging, can reach up to 340 000 pixels; 60 fps output without smearing; standard video signal output, display devices connected to the home TV, parking displays and others. With six high-brightness LED lighting, no lighting dead, no spot.
Product outer diameter of only 4.55 mm, convenient for observing close objects, for industrial video endoscope, the endoscope pipeline detection, vehicle detection endoscope, cylinder testing, fishing video camera, underwater camera, invisible cameras, ENT endoscopes, intraoral camera, medical endoscopes, endoscope throat.
The main advantages of this product include: small size, high pixel, high frame rate, imaging results clear, is your good choice.
Connection definitions
Red: camera power supply (3.3V-3.6V)
Yellow: Video output
Black: common ground
White: LED power supply
Specifications
Lens
  • Depth of field: 60degree version: 20-60mm, 80 degree version: 7mm-35mm
  • FOV: 60degree or 80degree
  • F1.19/2.1mm with IR-cut filter
Size: 4.55 (W) * 18 (L) mm
Senor: 1/12 color COMS
Frame rate: 60Fps (N) / 50Fps (P)
Format PAL / NTSC
Effective Pixels: 720 (h) × 480 (v) (N) / 720 (h) × 576 (v) (P)
SNR: more than 38dB
Dynamic range: 66dB
Sensing Area: 1440μm×1653μm
Pixel size: 1.75μm×1.75μm
Minimum Illumination: 0.1 Lux / F2.0
Output: CVBS / NTSC
AWB: ON
AGC: ON
Operating temperature: 0 ~ + 50 ℃
Power DC 3.3V-5V / 90mA
LED 6PCS 0402 white LED, DC3.3V*40mA
