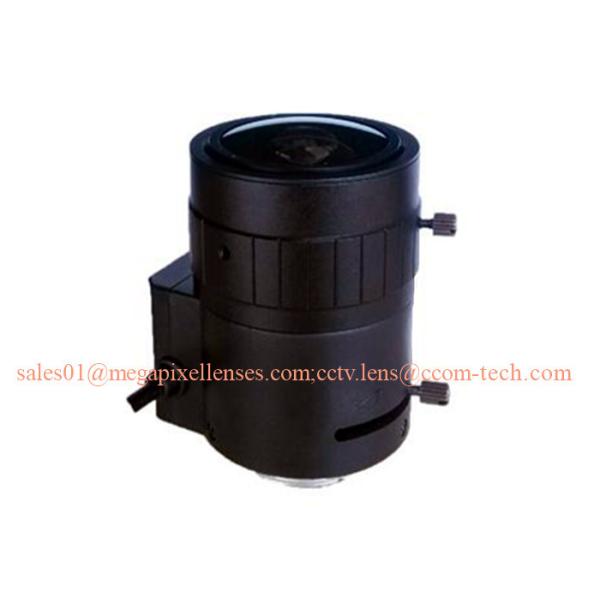

1/2.7 2.8-9mm F1.4 5Megapixel DC Auto IRIS CS Mount IR Vari-focal Lens for Day & Night surveillance
1/2.7 2.8-9mm F1.4 5Megapixel DC Auto IRIS CS Mount IR Vari-focal Lens for Day & Night surveillance
1/2.7 2.8-9mm F1.4 5Megapixel DC Auto IRIS CS Mount IR Vari-focal Lens for Day & Night surveillance
1/2.7 2.8-9mm F1.4 5Megapixel DC Auto IRIS CS Mount IR Vari-focal Lens for Day & Night surveillance
Specifications
Place of Origin :
China
Model Number :
12702809DM-CS-MP
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
CS Mount Varifocal Lens
Focal Length :
2.8~9mm Varifocal Lens
F.O.V. (D*H*V) :
158°×120°×84.6° ~ 42°×34.3°×25.3°
IR Collection :
YES
Description

1/2.7" 2.8-9mm F1.4 5Megapixel DC Auto IRIS Manual Focus/Zoom IR varifocal lens, CS Mount Vari-focal Lens for 1/2.7", 1/3", 1/4" sensors

Model 12702809DM-CS-MP
IMAGE FORMAT 1/2.7"
FOCAL LENGTH 2.8~9mm
F.O.V (D*H*V) 1/2.7”: 158°×120°×84.6° ~ 42°×34.3°×25.3°, 1/3”: 137.4°×104°×75.8° ~ 38.1°×30.4°×22.8°, 1/4”: 85°×66.4°×50° ~ 25.3°×20.3°×15.2°

OPTICAL DISTORTION -70.03%~-4.6%(1/2.7")
RESOLUTION 5MP
APERTURE F1.4
MOUNT CS
IRIS DC Auto
ZOOM Manual
FOCUS Manual
M.O.D. 0.3m

Flange B.F.L. 17.526mm
B.F.L. 9.92mm

M.B.F. 7.80mm
DIMENSION Φ39.6×51.8×66.7mm

IR COLLECTION YES
OPERATING TEMPERATURE -20℃～+60℃

Tips:

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
