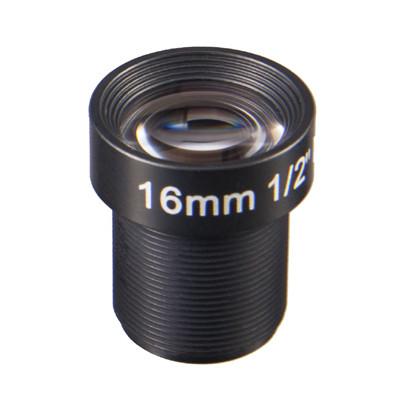

1/2 16mm 5Megapixel F1.8 S/CS Mount M12x0.5 mount Non-Distortion IR Board Lens
1/2 16mm 5Megapixel F1.8 S/CS Mount M12x0.5 mount Non-Distortion IR Board Lens
1/2 16mm 5Megapixel F1.8 S/CS Mount M12x0.5 mount Non-Distortion IR Board Lens
1/2 16mm 5Megapixel F1.8 S/CS Mount M12x0.5 mount Non-Distortion IR Board Lens
Specifications
Place of Origin :
China
Model Number :
121618MP 121618MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board Lens :
M12 Mount Low-distortion Lens
Resolution :
5MP
Distortion :
<-0.65%
Materials :
Metal+Glass, 6G/6G+IR
Description

Non distortion Lens

● High definition <2% low distortion lens
● High resolution compatible with 1.3-5 Mega-pixel cameras
● Broad band confocal design suitable for both Visible and NIR applications
● Compact design ideal for integration
● Cost-effective for recognition applications

1/2" 16mm 5Megapixel F1.8 M12*0.5 Mount S Mount High Quality Non-Distortion IR Board Lens

Model 121618MP
Image Format 1/2″
Focal Length 16mm
Aperture F1.8
Resolution MP
Horizontal Angle of View 22.3°
Distortion -0.65%
Mount Type M12*0.5
Minimum Object Distance 0.35m
Back Focal Length 7.2mm
Iris Fixed
Constructiure 6-5

DIMENSION Φ15(D)*17.9mm(L)

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS mount available

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
