1/3 3.96mm F2.2 8Megapixel M6.4x0.25 mount non-distortion lens, 3.96mm M6.4 lens
1/3 3.96mm F2.2 8Megapixel M6.4x0.25 mount non-distortion lens, 3.96mm M6.4 lens
1/3 3.96mm F2.2 8Megapixel M6.4x0.25 mount non-distortion lens, 3.96mm M6.4 lens
1/3 3.96mm F2.2 8Megapixel M6.4x0.25 mount non-distortion lens, 3.96mm M6.4 lens
1/3 3.96mm F2.2 8Megapixel M6.4x0.25 mount non-distortion lens, 3.96mm M6.4 lens
1/3 3.96mm F2.2 8Megapixel M6.4x0.25 mount non-distortion lens, 3.96mm M6.4 lens
Specifications
Place of Origin :
China
Model Number :
130396MP-M6.4 130396MPF-M6.4
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M6.4 Mount Non-distortion Optical Lens
Resolution :
8MP
FOV(D) :
72°
Lens Constructure :
5P/5P+IR
Description

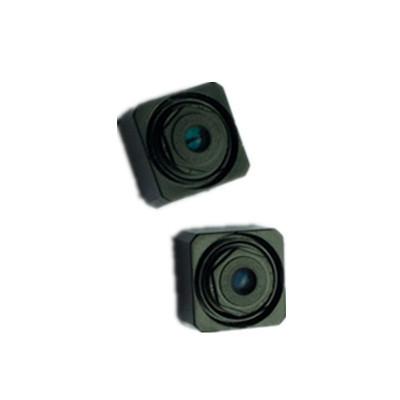

1/3" 3.96mm F2.2 8Megapixel 72degree non-distortion M6.4*0.25 mount lens for digital cameras/computer/electronic video devices, 3.96mm M6.4 mount lens

Model: 130396MPF-M6.4
SENSOR SIZE: 1/3"

EFFECTIVE IMAGE CIRCLE: Φ6.15mm
FOCAL LENGTH(mm): 3.96
F.O.V.(D): 72°
RESOLUTION: 8MP
OPTICAL DISTORTION: <1.0%
APERTURE: F2.2
MOUNT(mm): M6.4xP0.25
IRIS: Fixed
M.O.D.: 20mm
F.B.L.(mm) 0.68
T.T.L.(mm): 4.98
C.R.A. <25°
LENS COMPOMEMT: 5P+IR
DIMENSION: Φ6.4x4.3mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
