1/2.7 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330
1/2.7 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330
1/2.7 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330
1/2.7 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330
1/2.7 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330
1/2.7 3.65mm 5Megapixel M9x0.5 mount 120Degree wide angle lens for OV4689/OV2710/IMX122/AR0330
Specifications
Place of Origin :
China
Model Number :
1270365MP-M9 1270365MPF-M9
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M9x0.5 mount wide angle lens
Resolution :
5MP
FOV(DxHxV) :
120°x96.5°x52.2°
Lens Constructure :
6G/6G+IR
Description

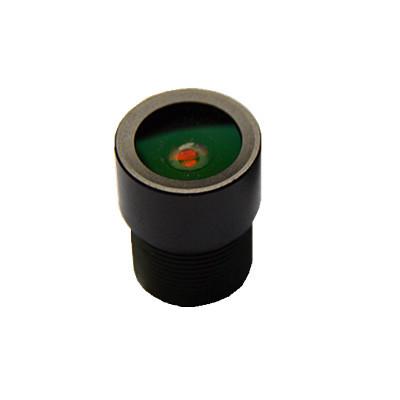

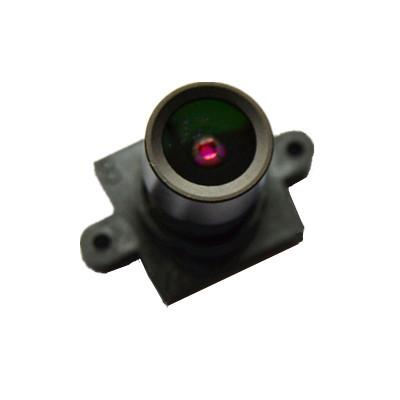

1/2.7" 3.65mm F2.0 5Megapixel M9x0.5 mount 120Degree Wide Angle Video Lens for 1/2.5" ~ 1/4" sensors, OV4689/OV2710/IMX122/OV8858 wide angle lens, megapixel wide-angle lens for sport DV/Car DVR, able to match 1/2.3" & 1/2.5" HD sensors

MODEL 1270365MPF-M9
SENSOR SIZE 1/2.7" ~ 1/4" CMOS/CCD
MAX IMAGE CIRCLE Ø 8.2mm (able to match 1/2.3", 1/2.5" HD sensors)
FOCAL LENGTH 3.65mm

F.O.V. (D*H*V) MI5100 H=93.6° V=68.6° D=121.6°, OV2710 H=96.5° V=52.2° D=120°, OV4689 H=90° V=50° D=110°, AR0330 H=83.1° V=47° D=105°, IMX122 H=89° V=55° D=115°
RESOLUTION 5MP
APERTURE F2.0
TV DISTORTION <-10%
MOUNT M9x0.5
B.F.L.(O) 5.48mm
B.F.L.(M) 2.80mm
T.T.L. 15.91mm

DIMENSION Φ10x13.17mm

LENS CONSTRUCTURE 6G+IR

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12/M9 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
