ACLS Intelligent Child First Aid Manikins for Hospitals Training

Description:
GD/ACLS1600 is designed according to experts experience and advice in the first-aid field and in accordance with five-year-old child anatomical characteristic. Complying with AHA (American Heart Association) 2005 emergency guideline for CPR and ECC, GD/ACLS1600 provides abundant real first-aid scenes for emergency physicians to train first aid operation process via friendly man-machine interface. The product is made of imported material with soft, elastic and not easily deformed skin, which is a good helper for pediatric teaching. It is the world leading man-machine interaction child ACLS training simulation system, can simulate real emergency scenes and all the related signs of emergency patient, such as: pupil states, artery pulse, heart rhythm, heart and lung auscultation sound, etc.

Specifications:

Features:

Head and Neck:

1. Pupil observation, one side is normal, the other side is dilated; the Flash animation displays light reaction and diameter changes of pupils;

2. Simulate airway foreign obstruction: foreign body obstruction in pharynx, main airway obstruction;

3. Carotid artery is available for five-year old child;

4. Respiration mode:Normalbreath, oligopnea, tachypnea, superficial respiration, excessive respiration, Kussmaul’s respiration, Cheyne-stokes respiration, meningitic breathing, sighing breath, irregular gasping, breathing holding;

5. Voice: including crying, laughing, moaning, coughing, gasping and all kinds of complaints, etc;

6. Airway management: realistic mouth, nose, tongue, gum, throat, esophagus, epiglottis, trachea (the diameter of the simulative airway: 9mm); can practice tracheal intubation via mouth, sputum suction; simulate airway foreign body obstruction conditions(pharyngeal and main airway obstruction); can practice tracheal incision; only right lung ventilation due to excessive intubation position.

Chest and Abdomen:

1. Manikin organs include: bilateral lungs, stomach, bladder, rectum, bilateral lungs ventilation, liquid can be infused and drained out from bladder and rectum;

2. Simulate spontaneous breathing, chest rise; can perform bilateral, left side , right side chest rise;

3. Bilateral puncture decompression and puncture effusion can be performed;

4. Femoral artery pulse

5. Auscultatory sound: including heart sound, respiratory sound, bowel sound; and the normal heart sound and respiratory sound can be adjusted according to the heart rate and respiratory frequency;

6. Gastric intubation: can perform gastric lavage, gastrointestinal decompression operation; intubation position can be detected via abdominal auscultation; suction of gastric liquid indicates successful intubation;

7. Vital signs monitor: ECG, heart rate, respiratory frequency, BP, body temperature, saturation of blood oxygen, end-tidal partial pressure of CO2, etc; the flash can simulate spasm condition;

8. Simulate skin color: normal, central cyanosis, peripheral cyanosis, mixed cyanosis, pale;

9. Urethral catheterization: can change male/female perineum to practice male/female catheterization;

10. CPR: Support multiple ventilation ways: mouth to mouth, mouth to nose, BVM to mouth; electronic monitoring of airway open, inflation times, frequency, volume and compression times, frequency, position and depth; automatic judgment of artificial respiration and chest compression ratio; English voice prompts during the entire process;

11. AED, defibrillation and pacing: multimedia animation displays AED and defibrillation process;

Limbs:

1. Manual BP measuring arm can simulate BP measurement with Korotkff sound;

2. Venous puncture/transfusion: arm vein, femoral vein, dorsal vein of foot

3. Skin care

4. Intramuscular injection: bilateral deltoid , bilateral vastus lateralis;

5. Bone marrow puncture: tibia with obvious body surface symbol, effusion of simulative bone marrow indicates proper puncture operation;

Software:

1. Provide various kinds of drug and multiple administration ways: i.v. drops, i.v., hypo., intramuscular injection, anal plug, injection pump, transfusion pump, etc; general dose and usage of each drug is preset; some drugs exist pharmacodynamic physiological reaction;

2. Provide all kinds of auxiliary examination: biochemical report, CT, ultrasound, ECG, etc;

3. Training and examination, ECG identification training, CPR training and examination are available in the system;

4. Simulative cases training and assessment: Provide various clinical cases script

5. Perform PETCO2: confirm tracheal intubation position and monitor the effectiveness of resuscitation operatio

Standard Component:

GD/ACLS1600A Standard Components:
1. Intelligent ACLS Five-year-old Child Manikin

2. GD/HS7 BP Training Equipment

3. Heart and Lung Auscultation Simulator Set

4. GD/XD1000CECG Generator

5. GD/CC999CDefibrillator Converter

6. BVM, Stethoscope, Laryngoscope, Tracheotomy tube, Infusion set.

7. Emergency System Controller

8. Medical Air Compressor

GD/ACLS1600B Standard Components:

1. Intelligent ACLS One-year-old Child Manikin

2. GD/HS7 BP Training Equipment

3. Heart and Lung Auscultation Simulator Set

4. GD/XD1000CECG Generator

5. GD/CC999CDefibrillator Converter

6. BVM, Stethoscope, Laryngoscope, Tracheotomy tube, Infusion set.

7. Emergency System Controller

8. Medical Air Compressor

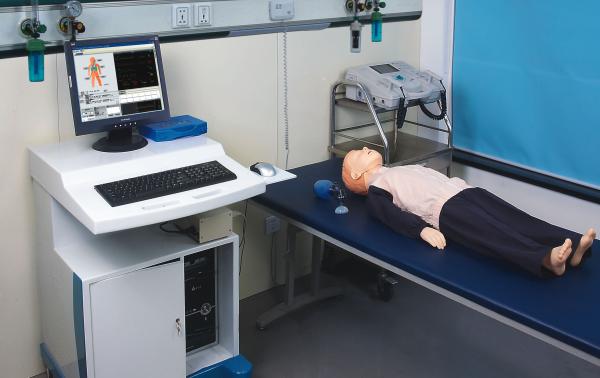

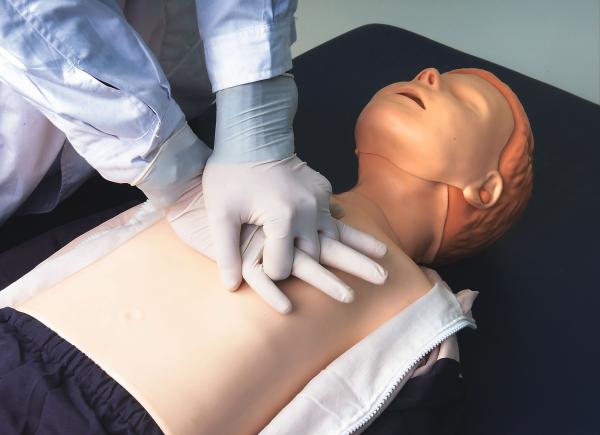

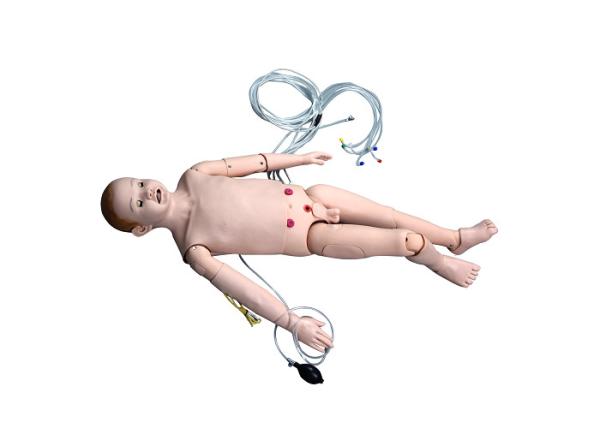

Pictures Show:
